The M700 packs the same advanced technology as the VR700 into a heavy-duty, front-mounted mono boom platform. With multiple John Deere engine choices, POWERMAX hydraulic intelligence, TrueClamp precision, and fully customizable ESHAKE patterns, it delivers repeatable, high-performance shaking even in the largest trees. An ergonomic cab and durable construction make the M700 a reliable workhorse.

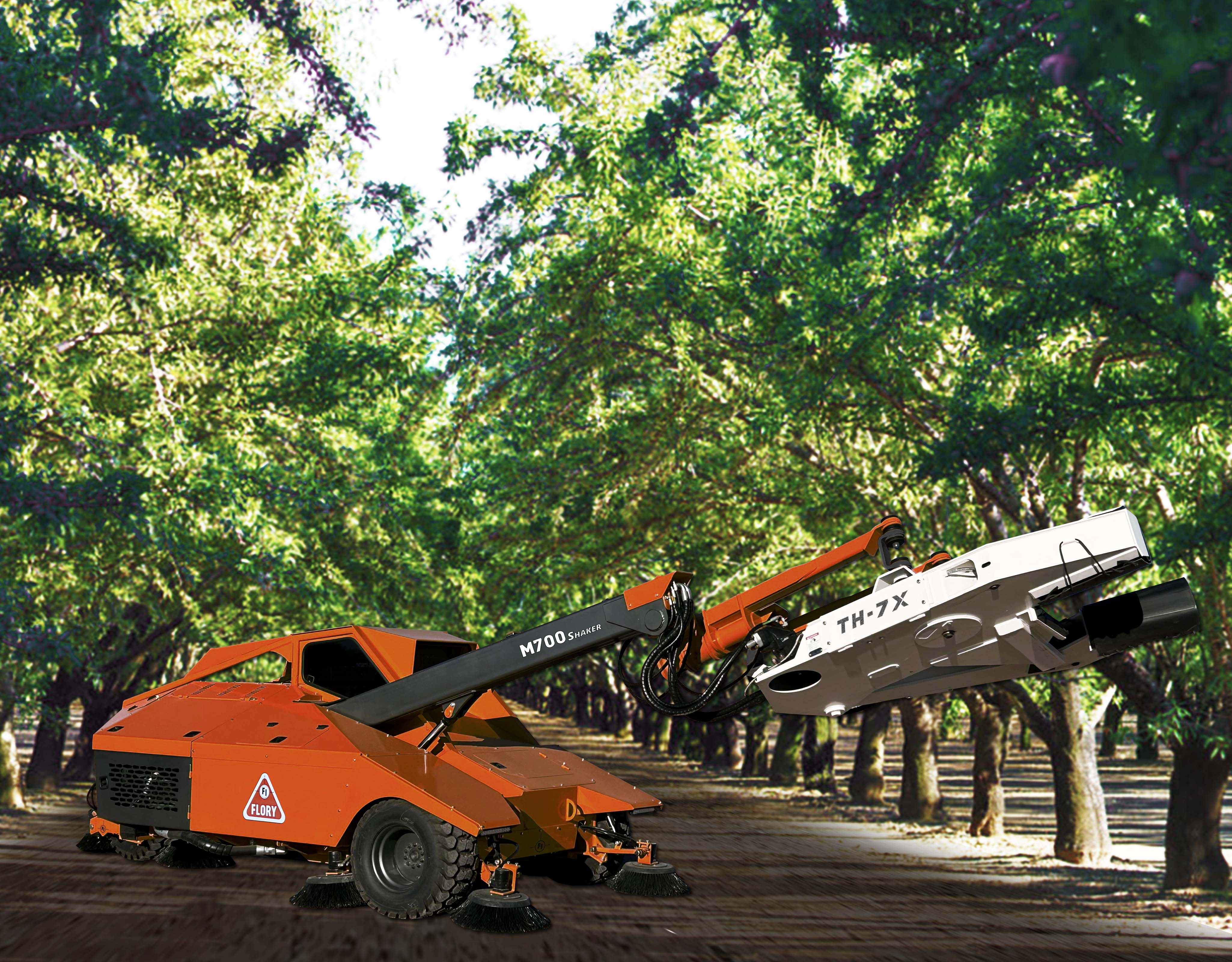

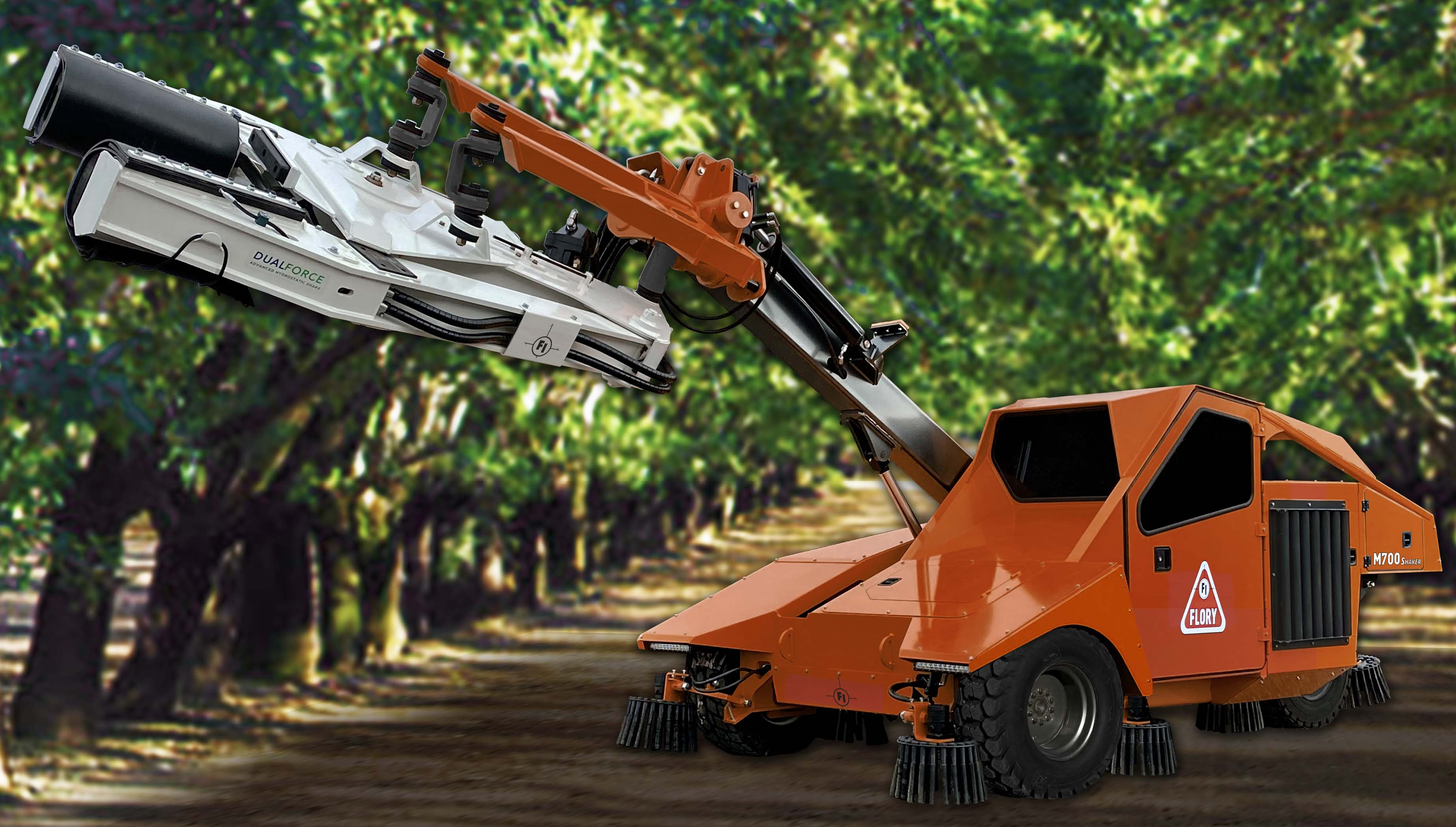

M700 Mono Boom Shaker
Features
Single joystick and touch screen control with rear-view camera.
Advanced hydrostatic shake system for quick cycles and maximum crop removal.
TH-7X shaker head with 110CC VOAC, center swing weights, grease serviceable energy wheels and sling lubrication system.
2 wheel drive with auto shifting.
Air conditioned & heated cabin with stereo.
Tilt steering column & suspension seat.
Durable powder coated finish.
Sleek & angles exterior design.

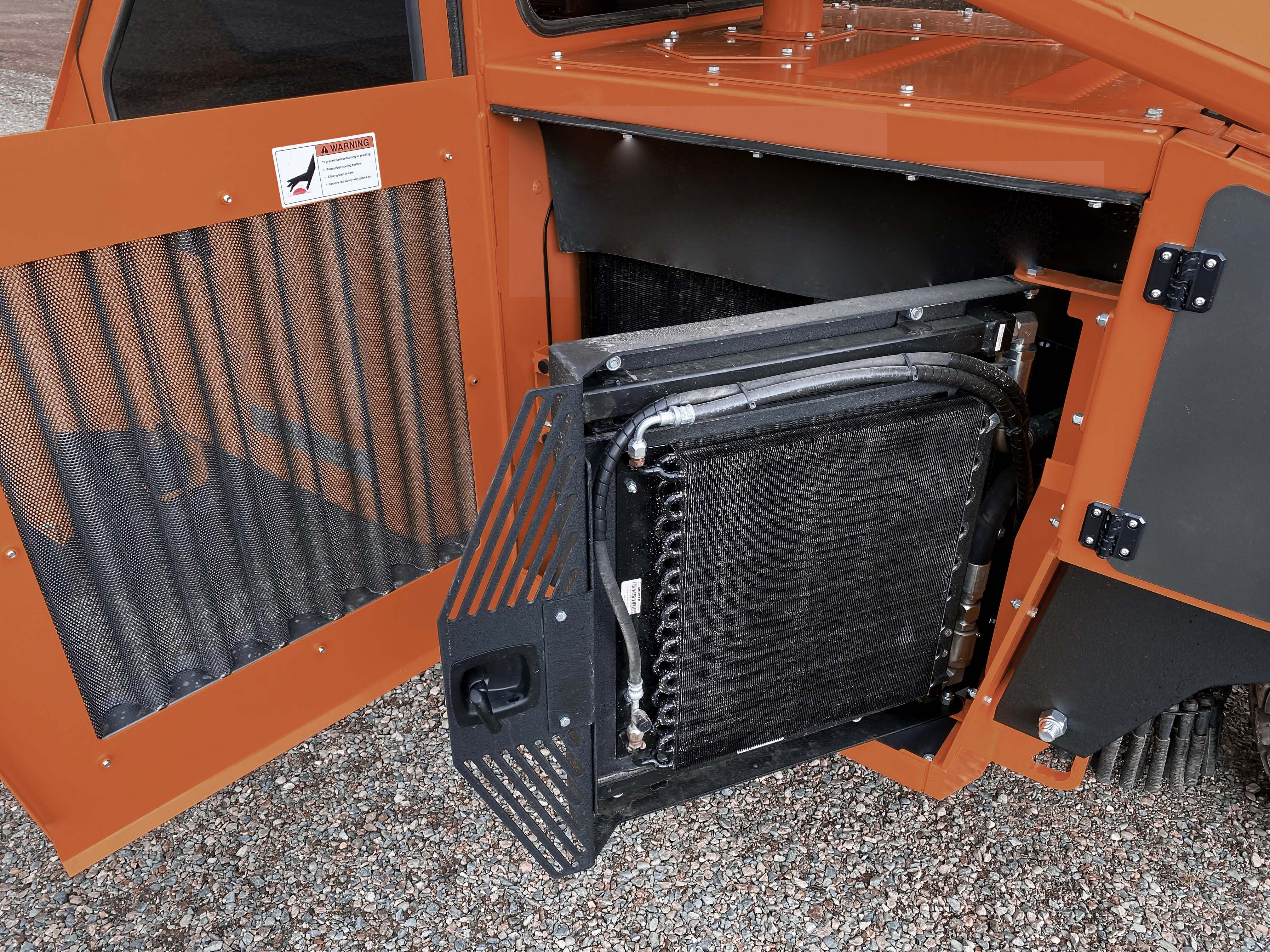

Radiator, oil cooler and fuel cooler are designed to handle debris including reversible fan and hinged access for cleaning.
Automatic sweepers with auto lift (forward & reverse).
LED light bars (Front, rear, side & head) and safety flasher lights (front & rear).
Fail safe parking brake.
Options
Various shake patterns
Brush or finger style sweepers
30” clamp opening
Long boom
TRAX rubber track drive
ESHAKE programmable shake with automated functions
Tier 3, 99 HP. engine for international markets
Specifications

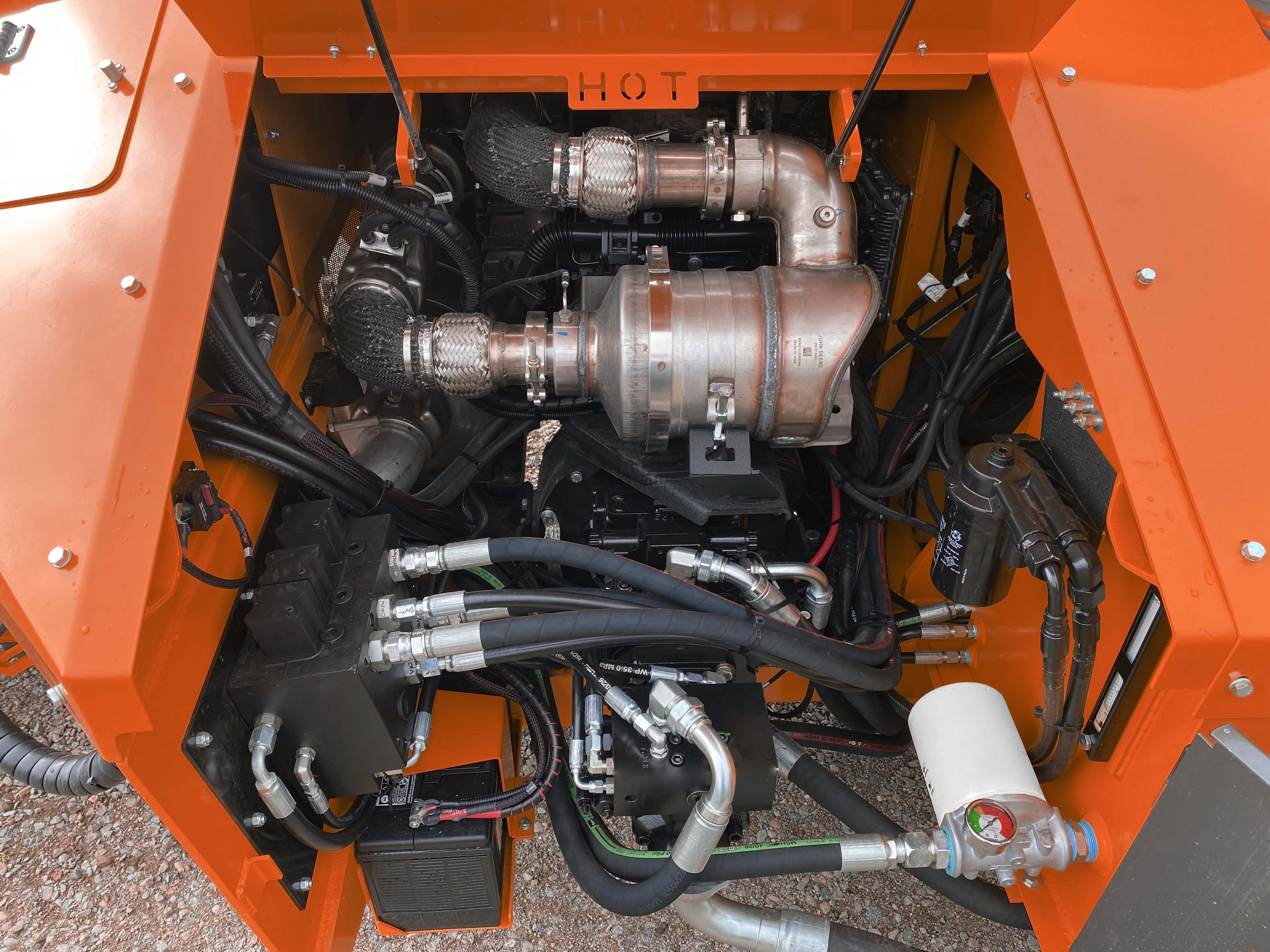

Engine
JOHN DEERE 4045, TIER 4 FINAL
Horsepower
139 HP.
Fuel Type
ULTRA-LOW SULFUR DIESEL
Fuel Capacity
50 GAL.
DEF Capacity
5 GAL.
Hydraulic Oil Capacity
47 GAL.
Speed
0 – 19 MPH.
Length
20 FT. – 10 IN. (folded) / 29 FT. – 1 IN. (shake position)
A durable and sleek side-mount tree shaker, the VR700 Vector is built to move quickly from tree to tree, maximizing crop removal while minimizing tree damage and giving operators ergonomic control, visibility and comfort.
