W8 R-Series BIN CARRIER — Coe Orchard Equipment

Simple, Safe, Reliable

The W8 Bin Carrier is built for reliable bin handling in demanding harvest environments. All-wheel drive with auto-shift and three steering modes - front, 4-wheel and crab - maximizes maneuverability. The heavy duty frame and axles, leaf spring suspension and airbag overrides deliver a stable, smooth ride. Choose between an open or enclosed cab with air conditioning, heating, and a suspension seat. An optional bulk insert converts the W8 from a bin carrier to a bank-out machine when needed.

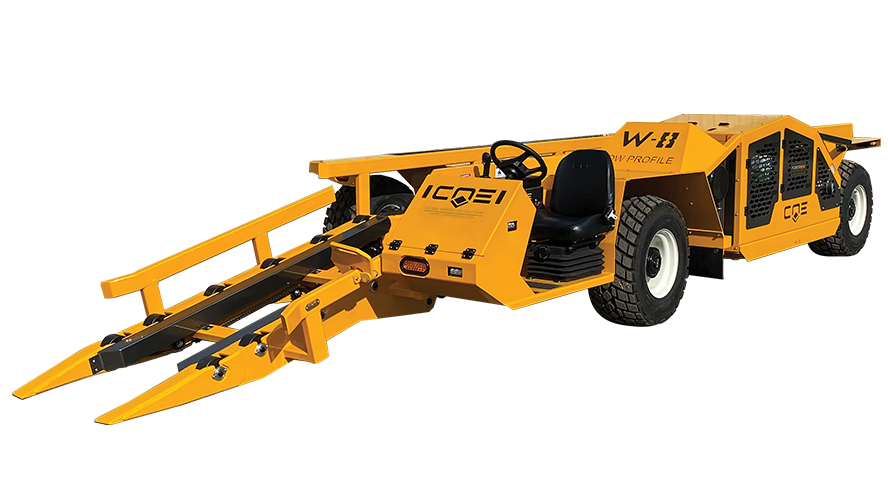

COE W8 Bin Carrier

Features

The COE W8 Bin Carrier distributes empty bins and retrieves full bins ensuring your catching set is productive and not waiting on bins
Display screen and single joystick control with multi functions

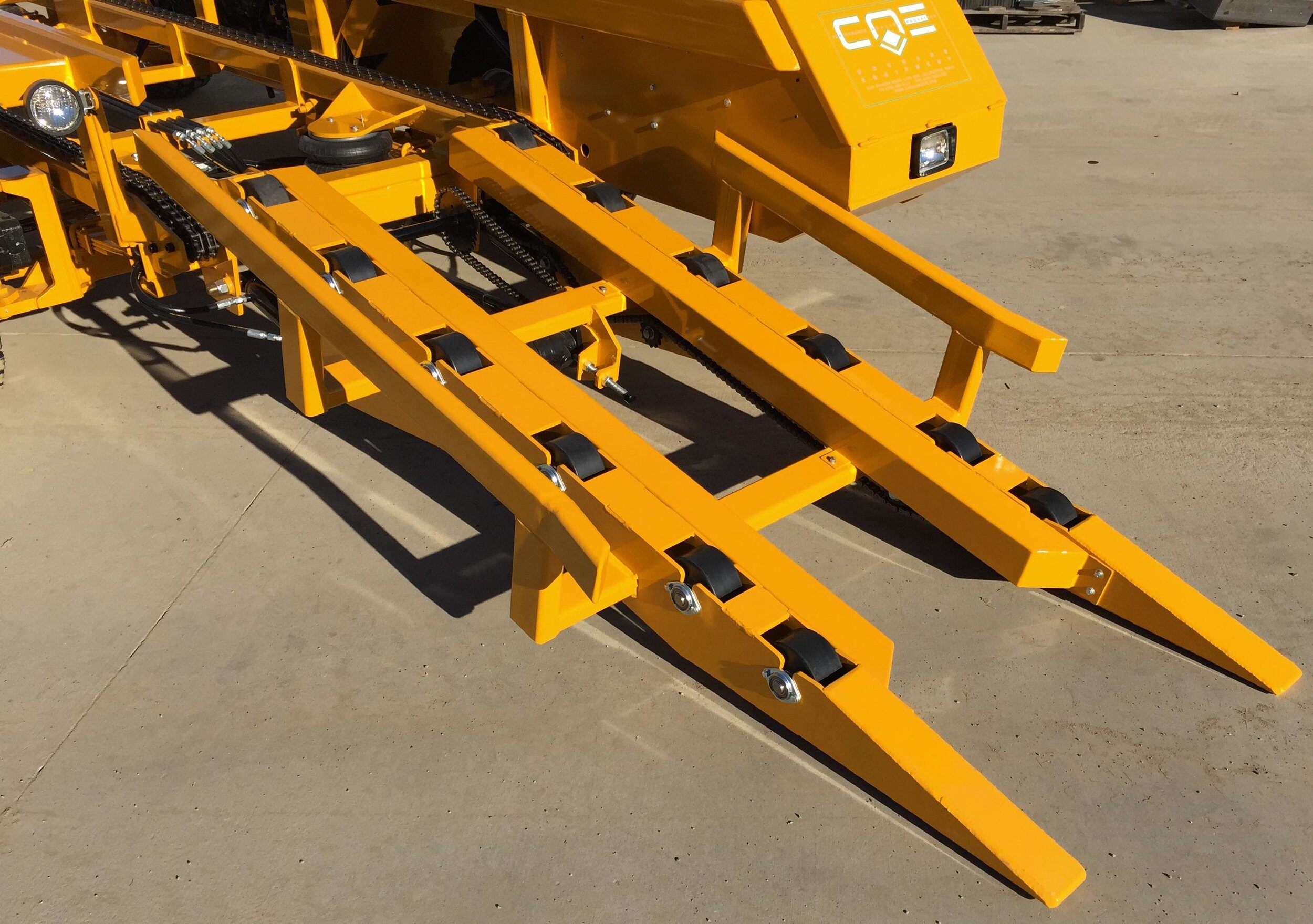

Rubber roller forks with tapered and flared front inlet
Proportional fork speed travel sensor
Quad-chain system on rear chains

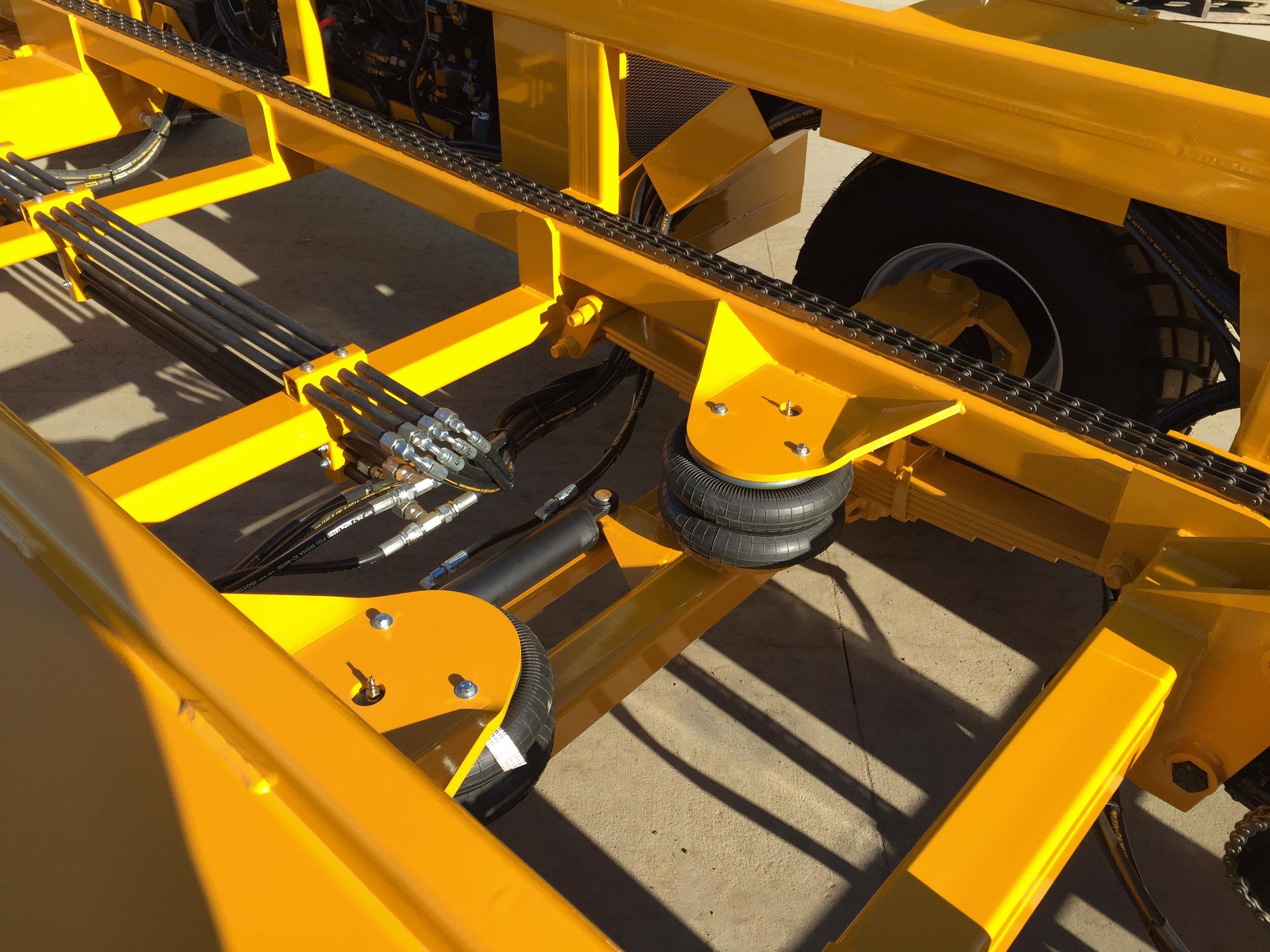

Heavy-duty axles with leaf spring and air bag suspension
Cooling package is designed to handle debris, including hinged access for cleaning and variable speed electric fans

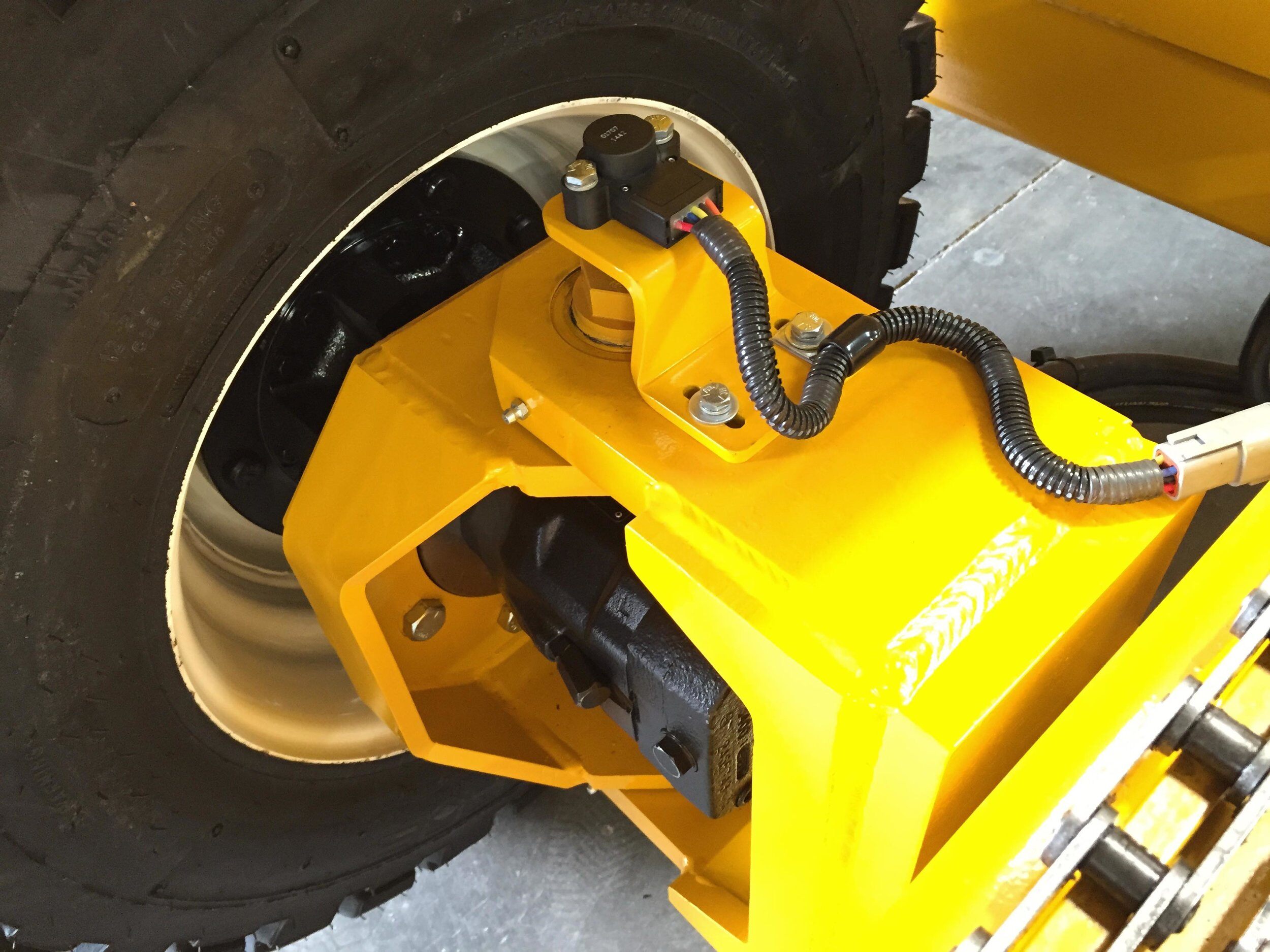

4WD system with auto-shifting and rear steering with auto centering
Sleek and angled exterior design
Durable powder coated finish
LED lights and safety flashers front and rear
Fail safe parking brake

Options

Air Conditioned Cab
Traction valve
TRAX rubber track drive
Dual Operators Platforms
Bulk Insert Kit
Tier 3 Engine for International Markets

Specifications

Engine	JOHN DEERE, 4045, TIER 4F
Horsepower	74 HP.
Fuel Type	DIESEL #2, ULTRA LOW SULFUR
Fuel Capacity	38 GAL.
DEF Capacity	NO DEF
Hyd. Oil Capacity	31 GAL.
Ground Speed	0-17 MPH
Tires	33/16.5 X 16.5 12-PLY
Weight	9,500 LBS.
