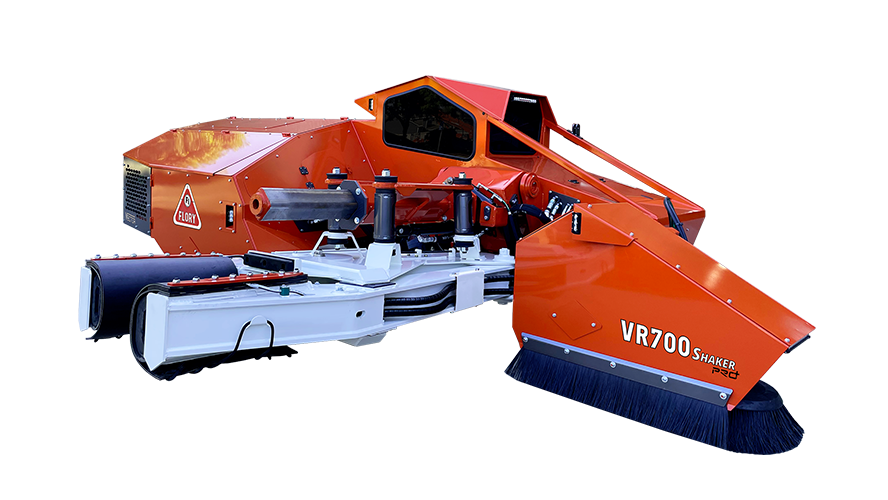

VR700 Side Mount

Precision Shaking, Superior Comfort, Maximum Efficiency - VR700 Vector

The VR700 combines multiple John Deere engine options with a state-of-the-art hydraulic and control system, delivering precise, repeatable performance every time. With industry-leading clamp technology, customizable ESHAKE patterns, and an ergonomic air cab designed for operator comfort and safety, the VR700 is engineered for efficiency, reliability, and tree protection. Optional Synergy Blower and TRAX systems further enhance performance, making it one of the most efficient and versatile side-mount shaker available.

VR700

VR700 Pro+

Features

Touch screen control system with fully programable shake profiles and automated shake functions.
Advanced hydrostatic shake system.
TH-7X shaker head with 110CC VOAC, center swing weights, grease serviceable energy wheels and sling lubrication system.
Air conditioned & heated cab.
Climate controlled cab.
In-cab stereo.
Tilt steering column & suspension seat.
Sleek & angled exterior design.
Durable powder coated finish.
Radiator, oil cooler and fuel cooler with hinged debri access.
LED light bars (Front, rear, side & head) and safety flasher lights (front & rear).
Fail safe parking brake.
3WD with auto-shifting.
Reversible cooling fan.
Rear view camera.
In-cab remote released access panels.

Optional Features (or Components, Upgrades)

Synergy Blower
Finger style sweepers.
30" clamp opening.
TRAX rubber track drive.
3WD		Incl
AXIOM lift system.
Tier 3, 99 HP Engine.		Outside US

Specifications

Engine	John Deere 4045, Tier 4 Final
Horsepower	74 Hp.	139 Hp.
Fuel Type	Ultra-low sulfur diesel
Fuel Capacity	40 Gal.	48 Gal.
DEF	No DEF	5 Gal.
Hydraulic Oil Capacity	42 Gal.
Length	18 ft. - 8 in.
Width	12 ft.- 3 in. (shaker head retracted)
Height	69 in.
Front / Rear Tires	380 / 55 x 16.4 14-Ply
Weight	13,500 lbs	13,900 lbs

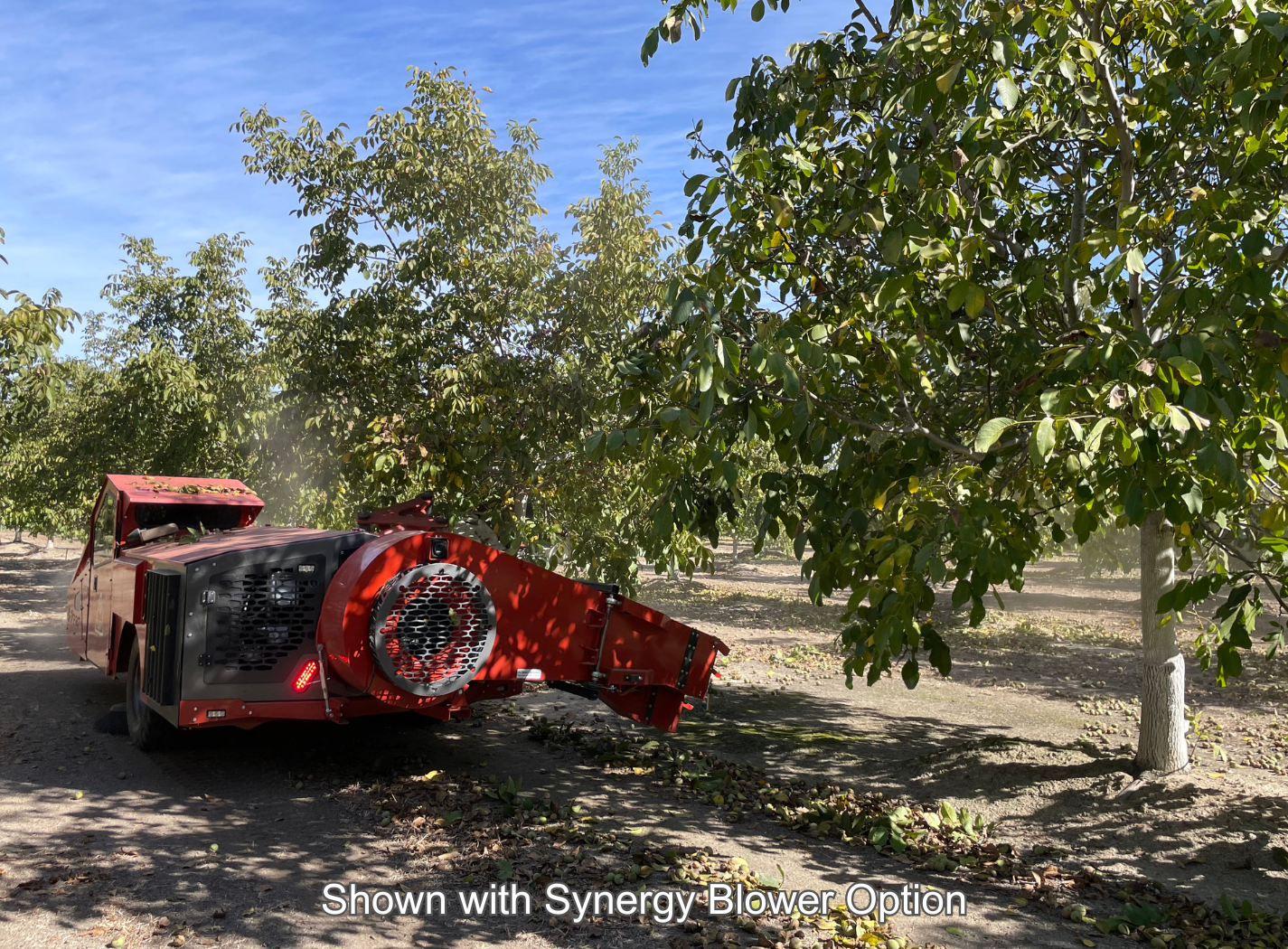

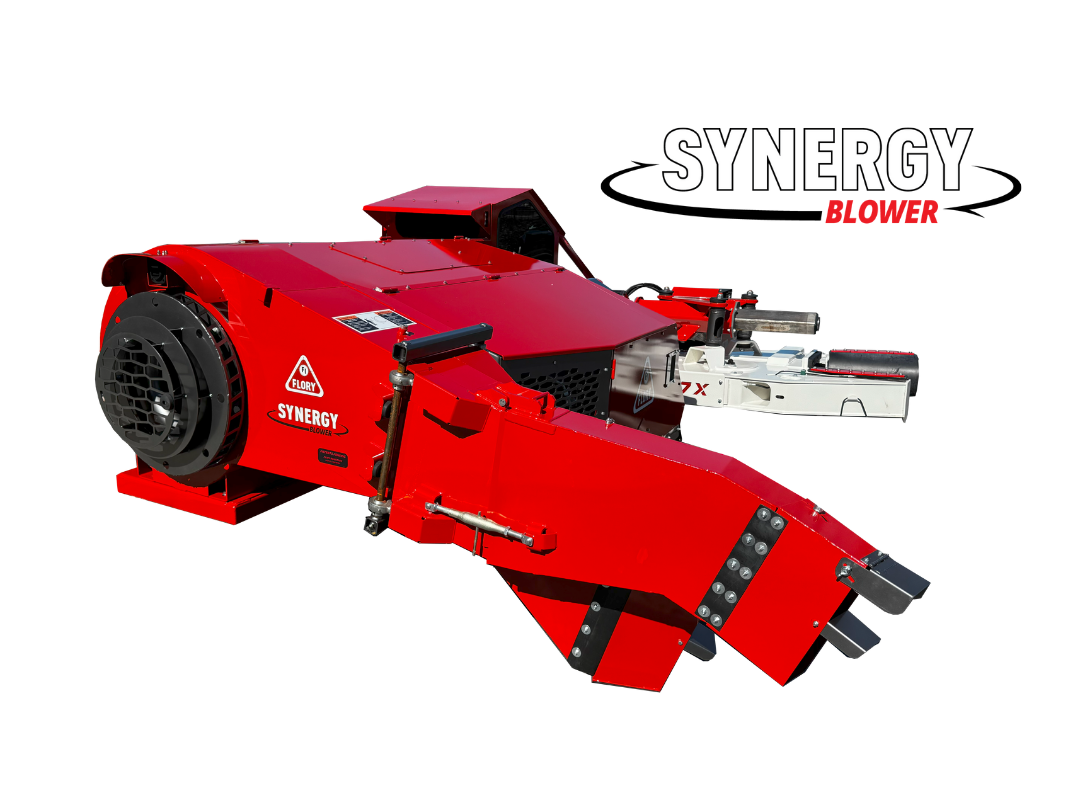

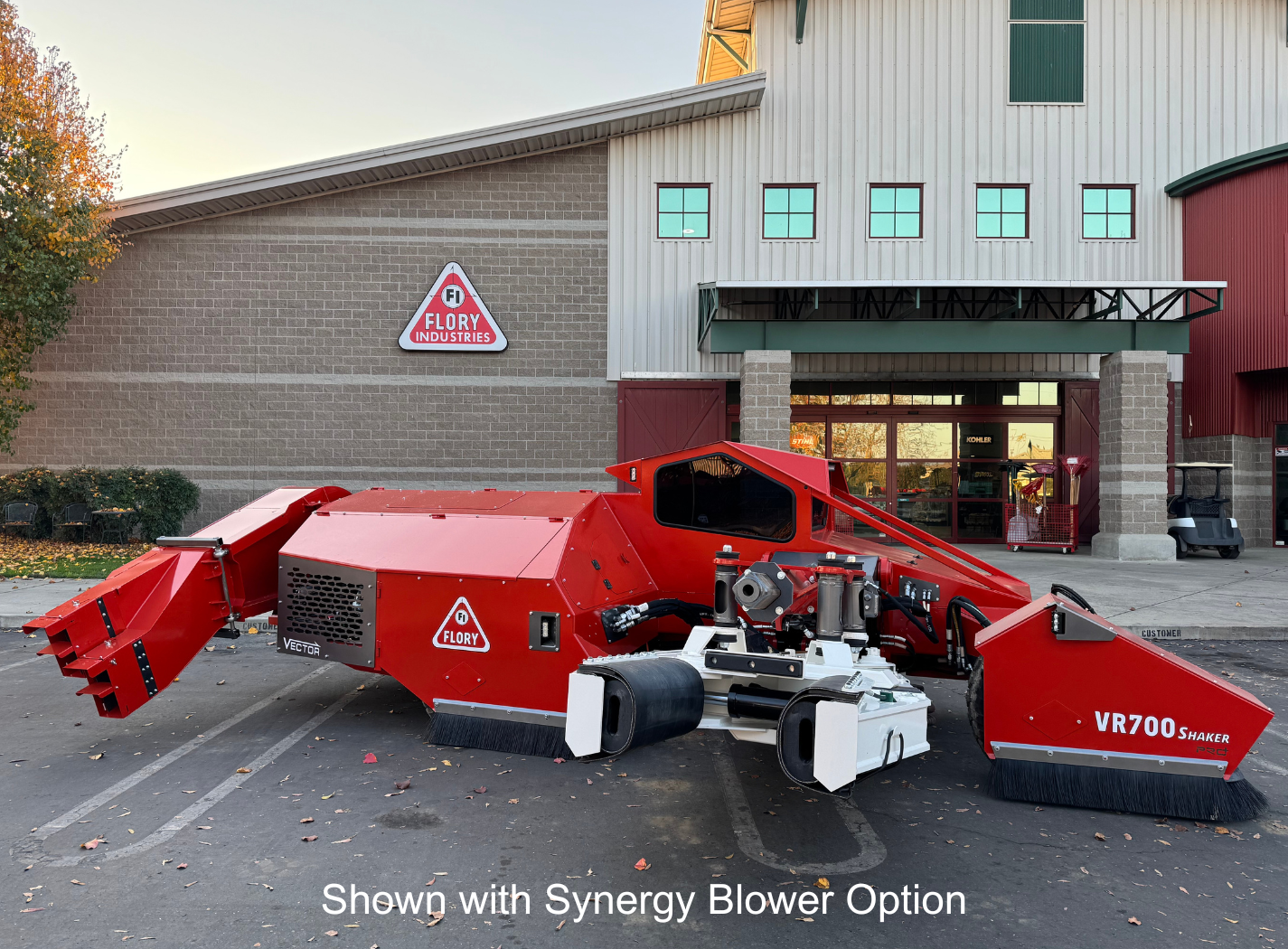

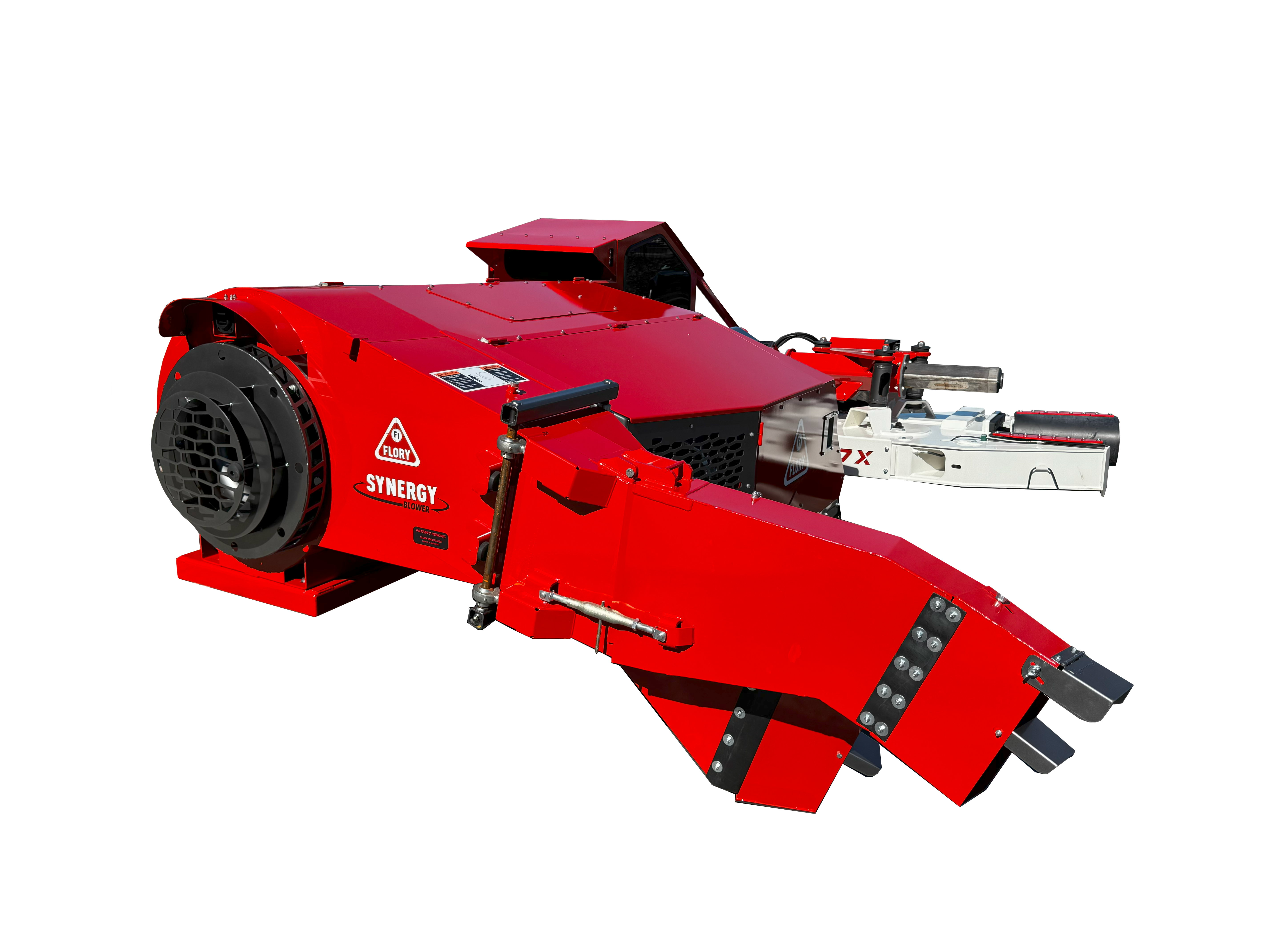

Synergy Blower (Option)

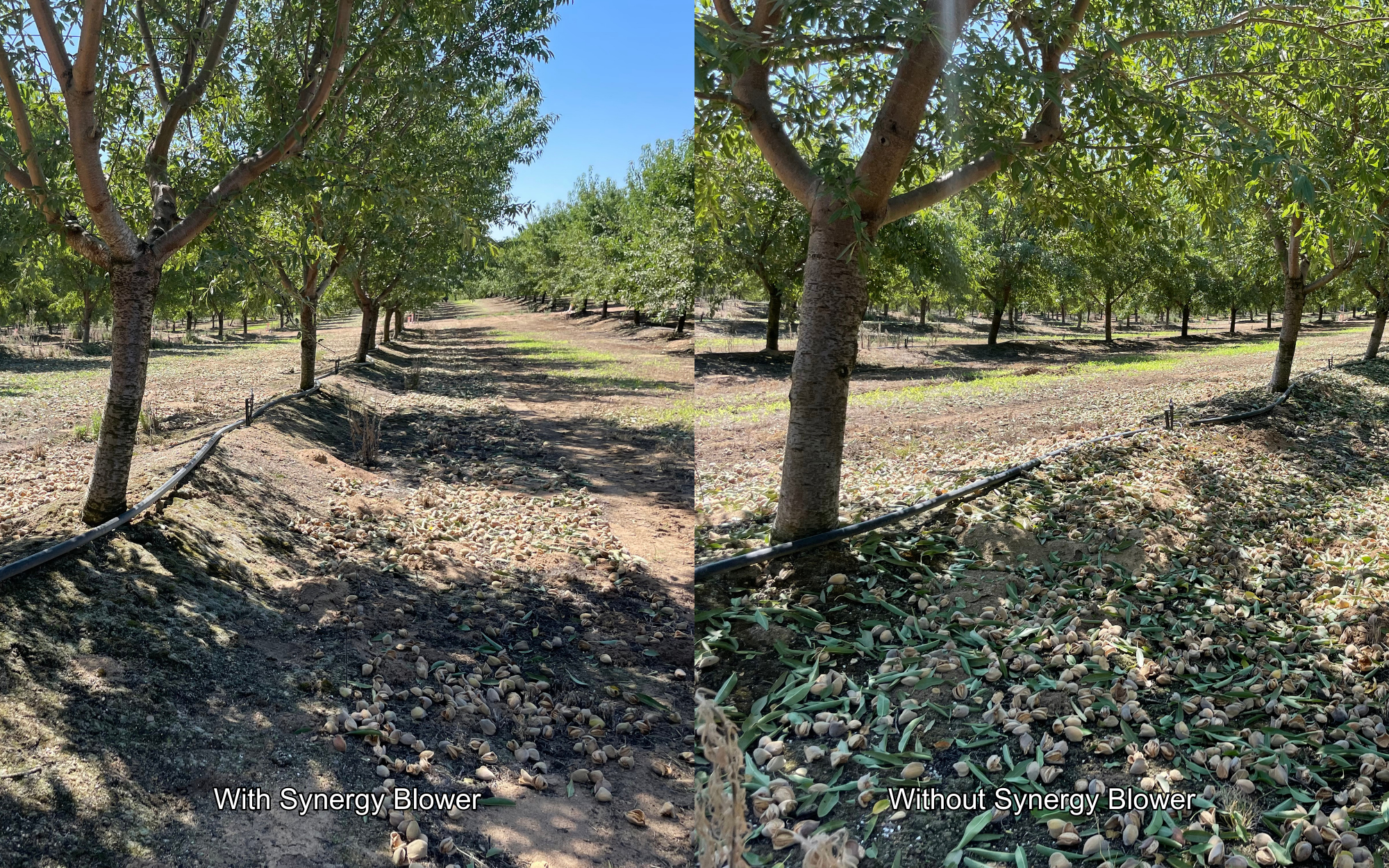

Combines shaking and blowing into a single, efficient machine
Eliminate redundant sweeping / blowing passes
Increase working speed of sweepers with minimal blowing work to be done
Improve overall operational efficiency, saving both time and money
Bi-directional breakaway mechanism on spouts to prevent damage
High efficiency backward incline fan design, maximizes air output while minimizing horsepower usage
Modular design that can be installed on existing PRO+ 139hp Flory / COE shakers
