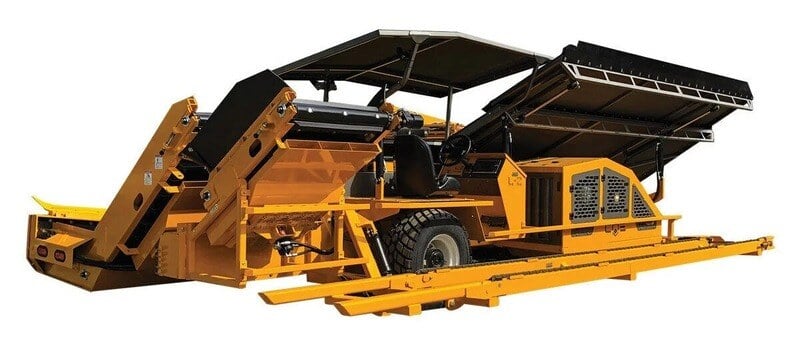

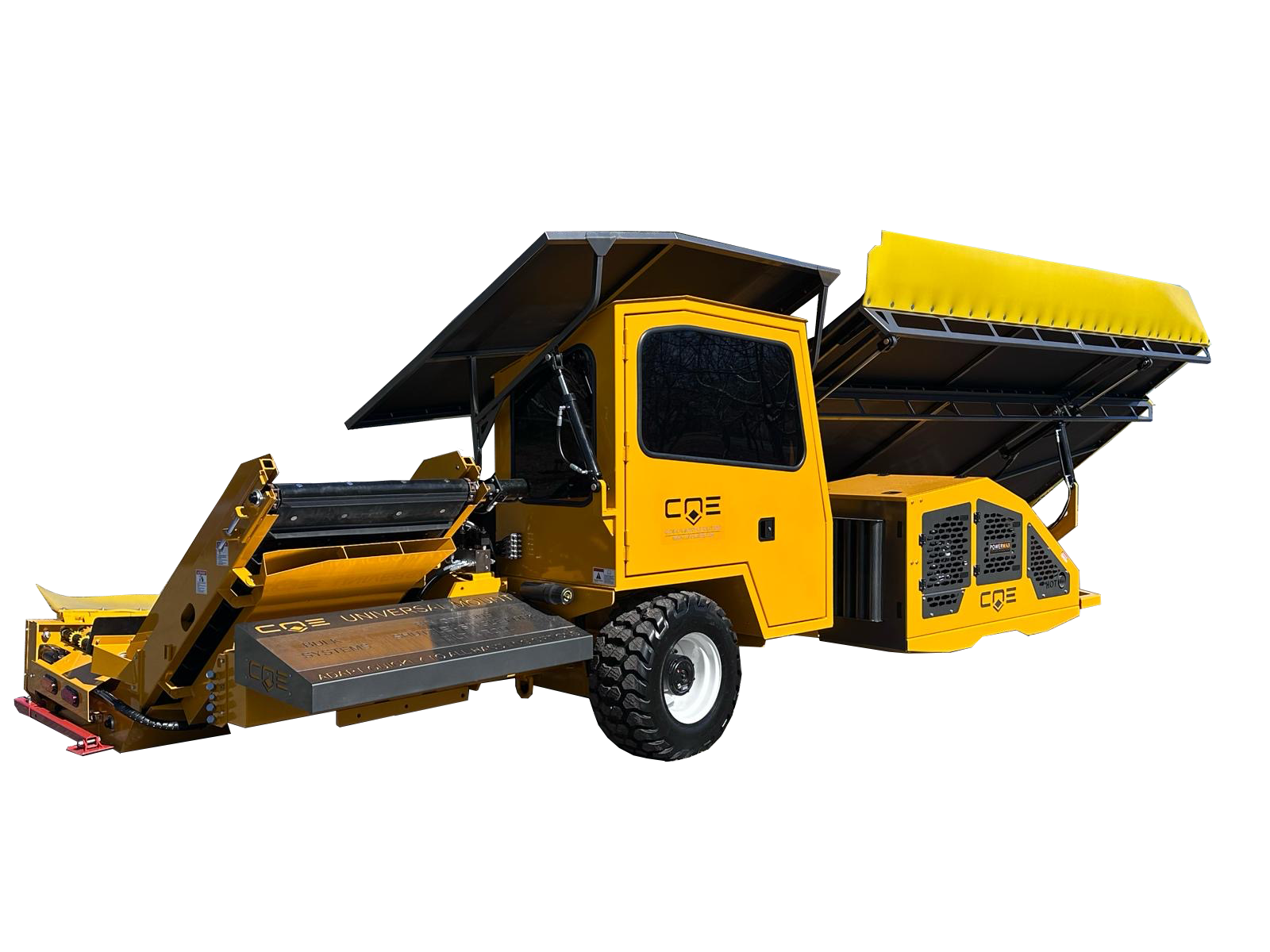

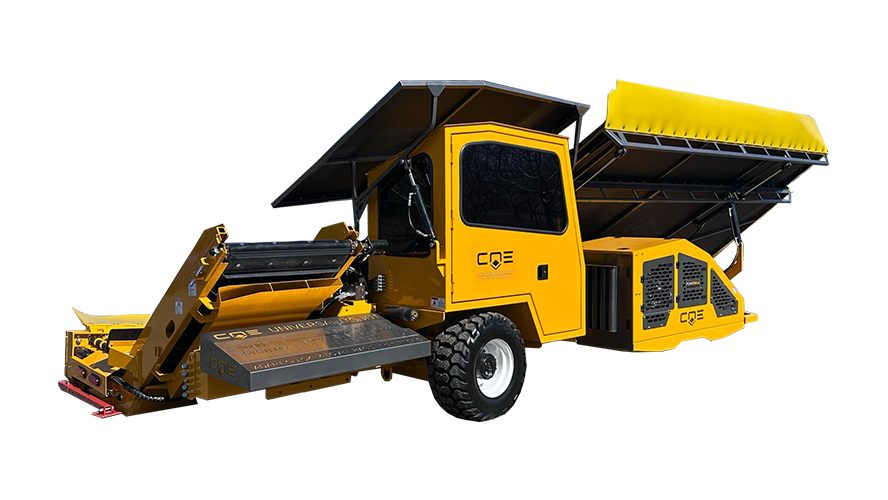

COE L2 Catching Frame Receiver
.png)
Flexible Product Handling, Reliable Performance
The L2 Receiver is available in open cab or AC cab configuration as well as 45 or 90 degree elevator configurations and pairs with the C7 Shaker to form a complete catching frame system for bin or bulk handling across virtually any tree crop. Component complexity is reduced by sharing common components with the C7 for ease of service.
| COE L2 Catching Frame Receiver |
Features
| Variable speed trash blower with floating bracket and double bearing spindle | |
| Single joystick control with multi functions | |
| Versatile deck design with PVC covering works in multiple tree spacing’s efficiently | |
| Cooling package is designed to handle debris, including hinged access for cleaning and variable speed electric fans | |
| 3WD system with auto-shifting and rear steering with auto centering | |
| Power engine air pre-cleaner system | |
| Sleek and angled exterior design | |
| Durable powder coated finish | |
| LED light bars (Front, rear, side & head) and safety flasher lights (front & rear) | |
| Fail safe parking brake | |
| Arm rest with storage compartment |
Options
| MAX package: large tree capability, AXIOM lift, TRAX ready frame, 35’ deck | |
| Handling option, bin shuttle, tilt + rolls forks or bulk adapter (additional handling options available for extra charge) | |
| 36” wide 90 degree or 30” wide 45 degree elevator | |
| Remote controls for shuttle, conveyor & blower | |

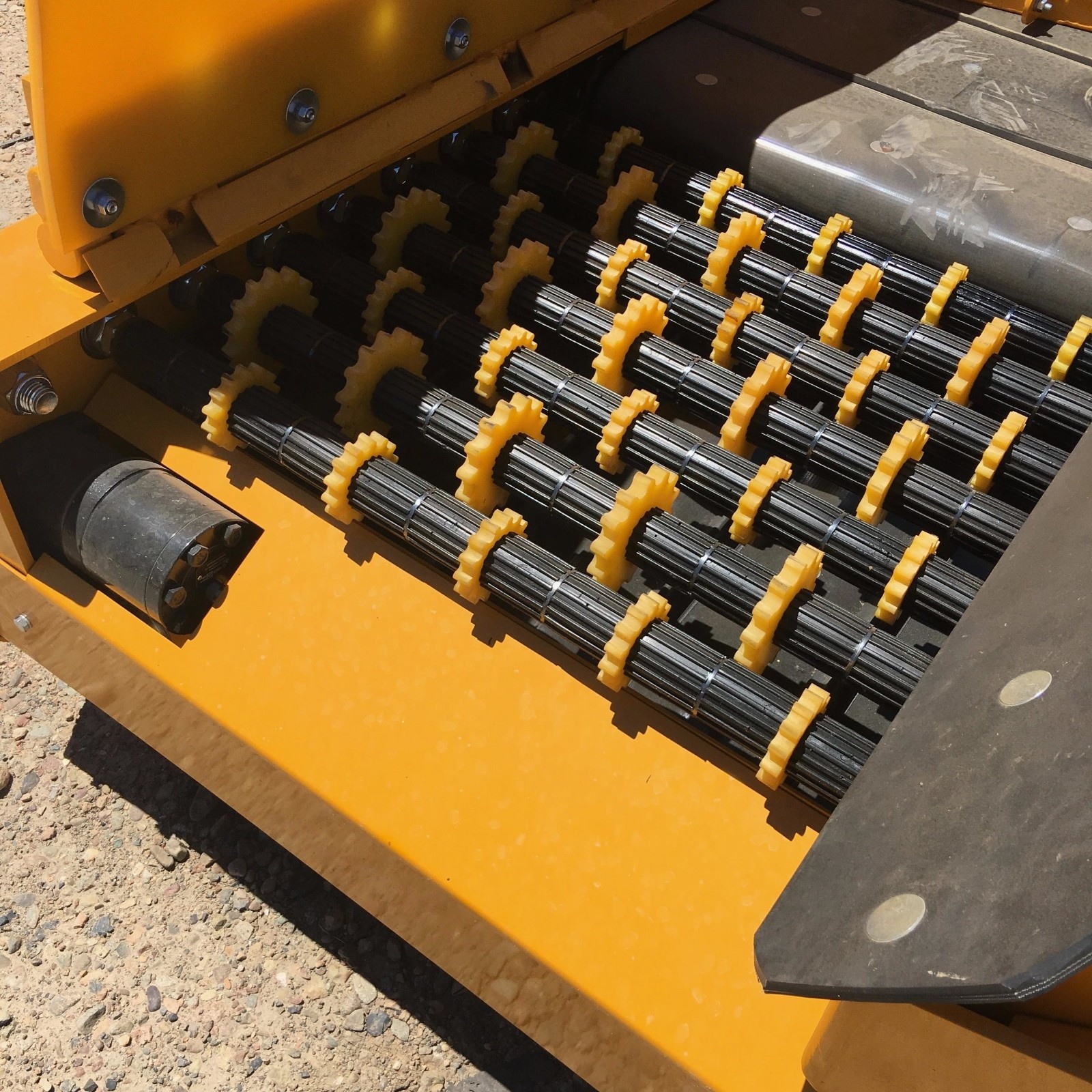

| Stick remover & trash cleaning system (available for 90 degree only) | |
| Flanged conveyors in white (cherries) | |
| Sizer / trash chains | |
| TRAX rubber track drive (new units only) | |

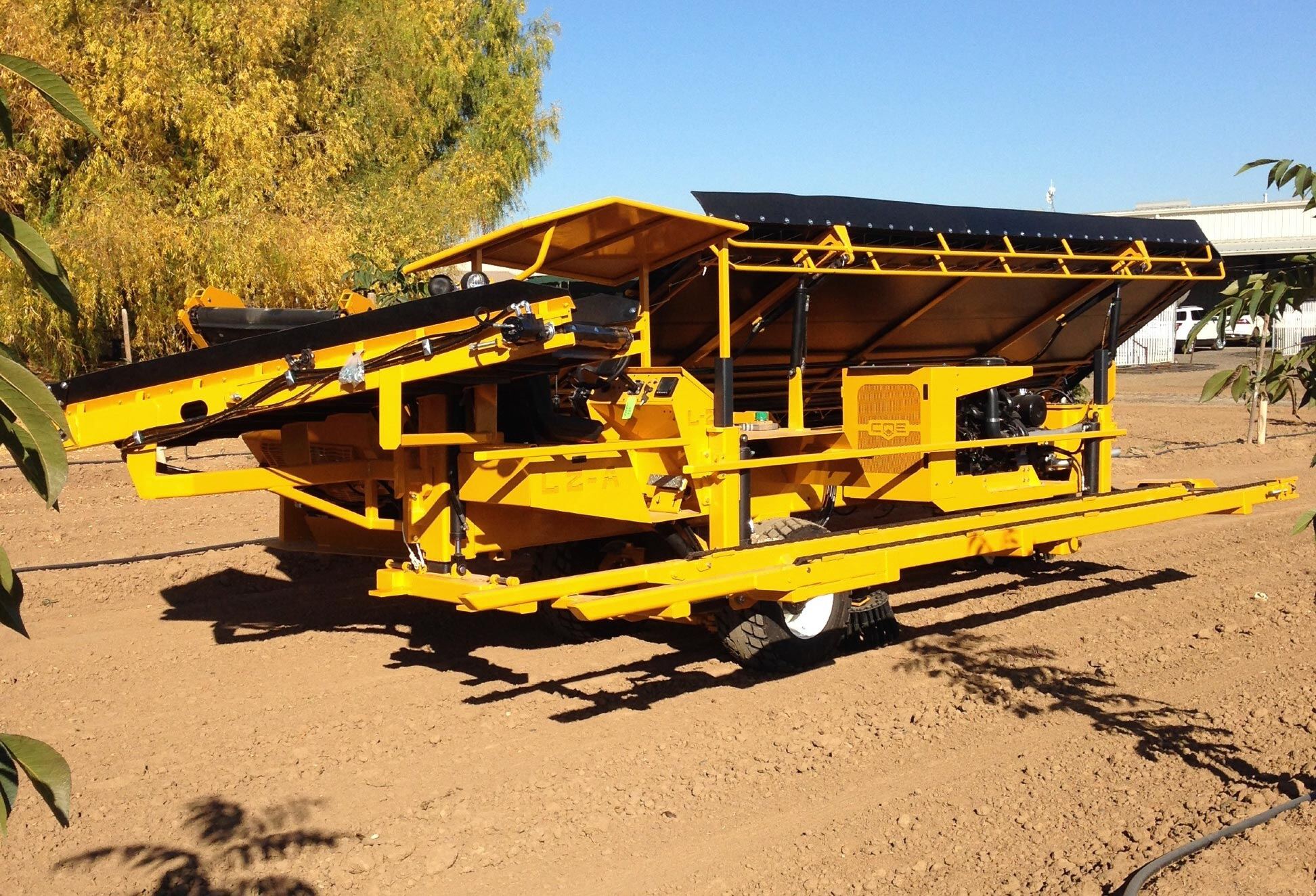

| AXIOM lift system | |
| JD139HP T4 final engine with reversing fan (bulk config. only for L2) | |
| Tier 3 engine for international markets | |
| Air conditioned & heated cab | |
| Automatic sweepers with hydraulic lift | |
| Traction valve | |
| Urethane deck fencing | |
| Canvas deck coverings | |
| Soft padding |
Specifications
| Engine | JOHN DEERE, 4045, TIER 4F | |
| Horsepower | STD. 74 HP. / OPT. 139 HP. | |
| Fuel Type | DIESEL #2, ULTRA LOW SULFUR | |
| Fuel Capacity | L2 55 GAL. | |
| DEF Capacity | STD. NO DEF / 139 HP. 5 GAL. | |
| Ground Speed | 0-15 MPH | |
| Tires | 33/16.5 X 16.5 12-PLY | |
| Weight | L2 13,000-13,500 LBS. | |
COE C7/L2 Shaker & Receiver Catching Frame
Product Images
.jpg?hsLang=en)
