E5 R-Series Elevators — Coe Orchard Equipment

High-Performance, Efficient, Reliable

The E5 Field Elevator is used together with front dump shuttles to load harvested pistachios and tree nuts efficiently into low-side trailers. The self-propelled option allows the elevator to set up and reposition without assistance from the shuttle, keeping the unloading site running smoothly. Built for the throughput demands of high-volume harvest operations, the E5 is a dependable addition to any COE catching frame system.

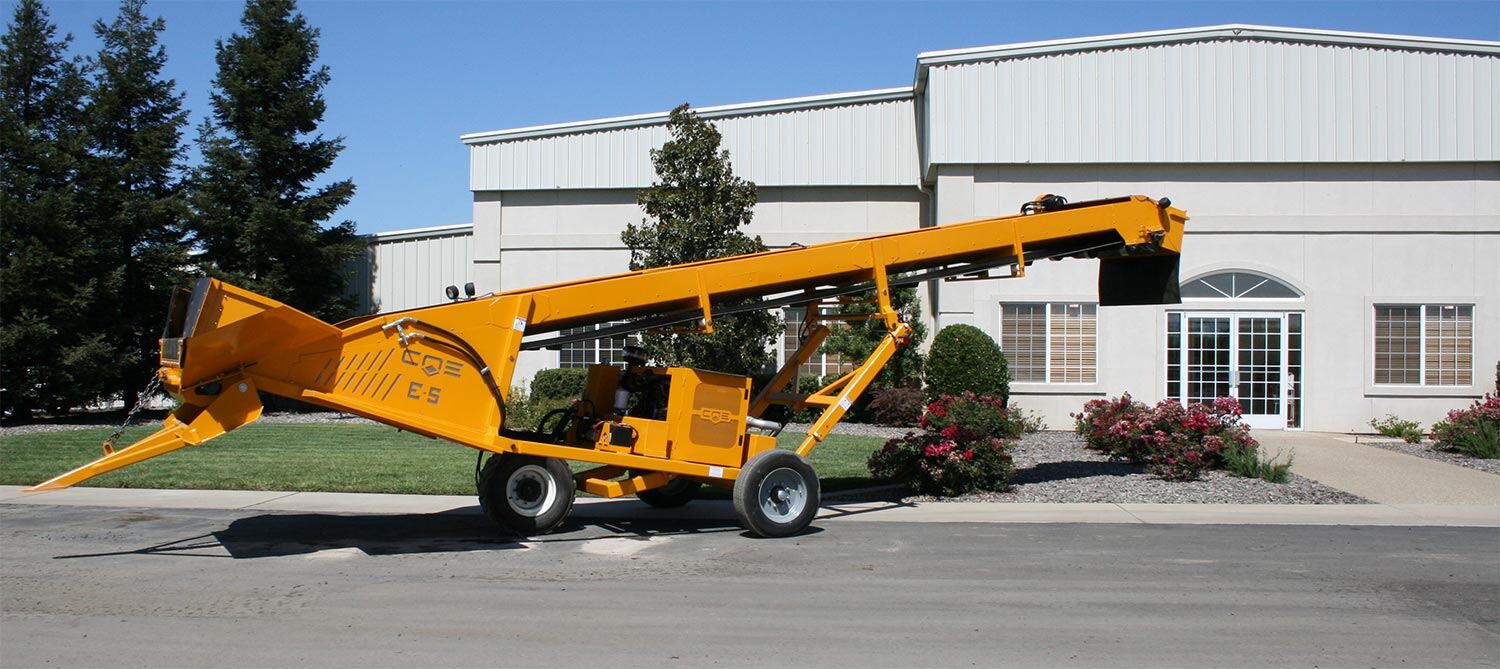

COE E5 Magnum Field Elevator

Features

The COE E5 Elevator is used together with front dump shuttles to efficiently load harvested crops into trailers
48-inch wide cleated belt with gear reduced drive

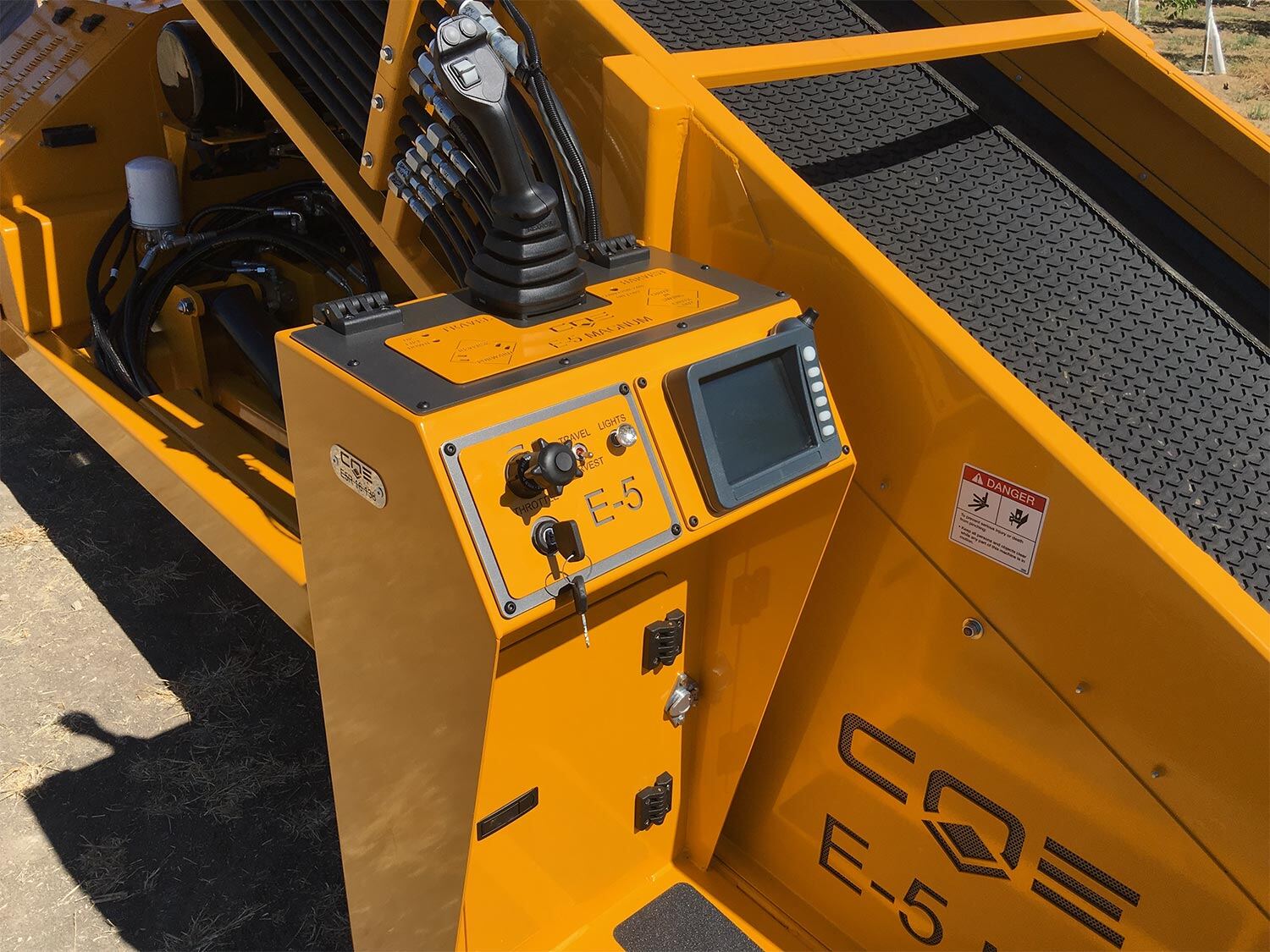

Single joystick controls
Cooling package is designed to handle debris with oil cooler for hydraulic circuit
Dual element engine air cleaner with pre-cleaner
Heavy duty axles with leaf spring suspension (with air bags on magnum option)
Gauge package (water temperature, oil pressure and volt meter), display screen (on R-Series model)

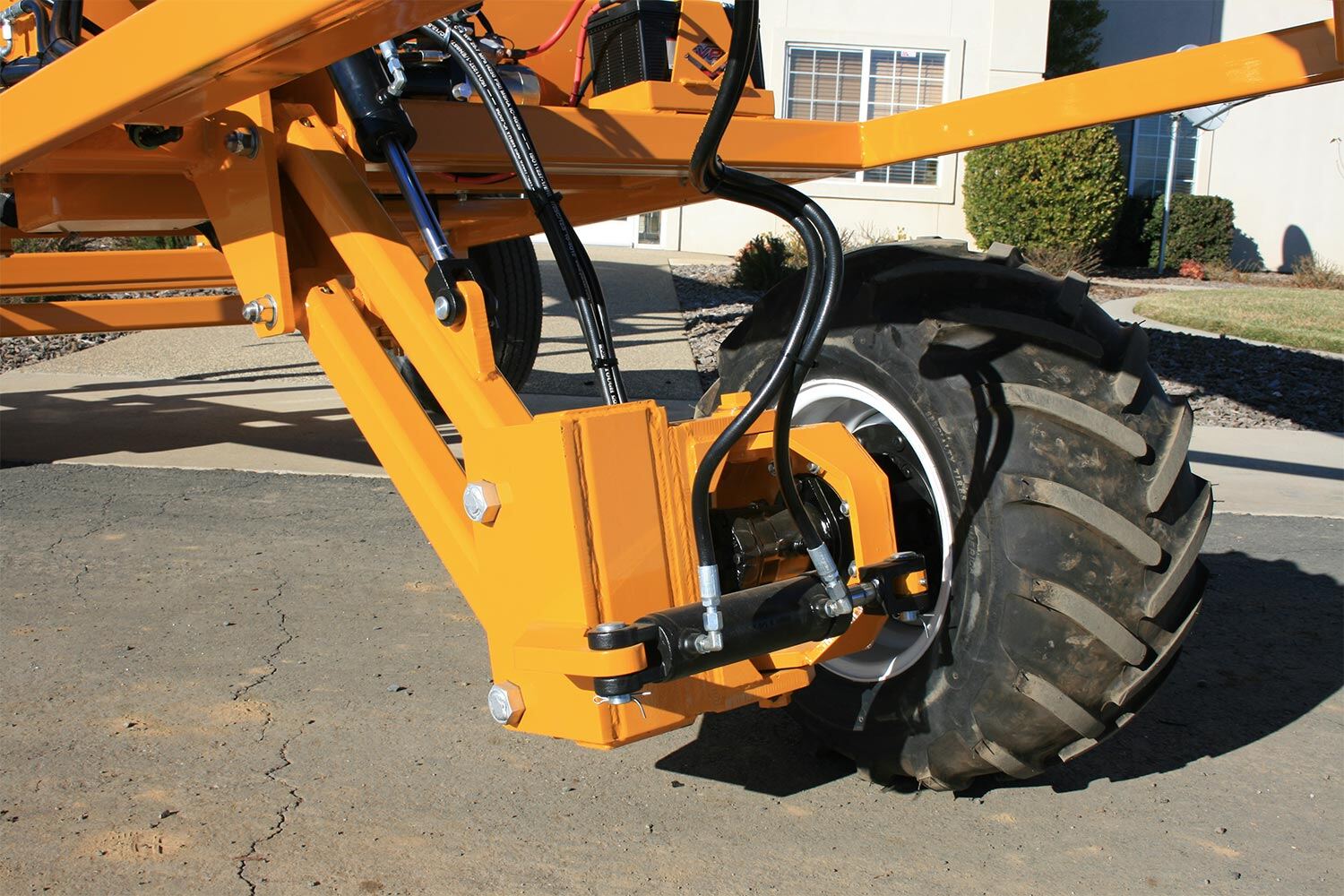

Self-propelled drive system

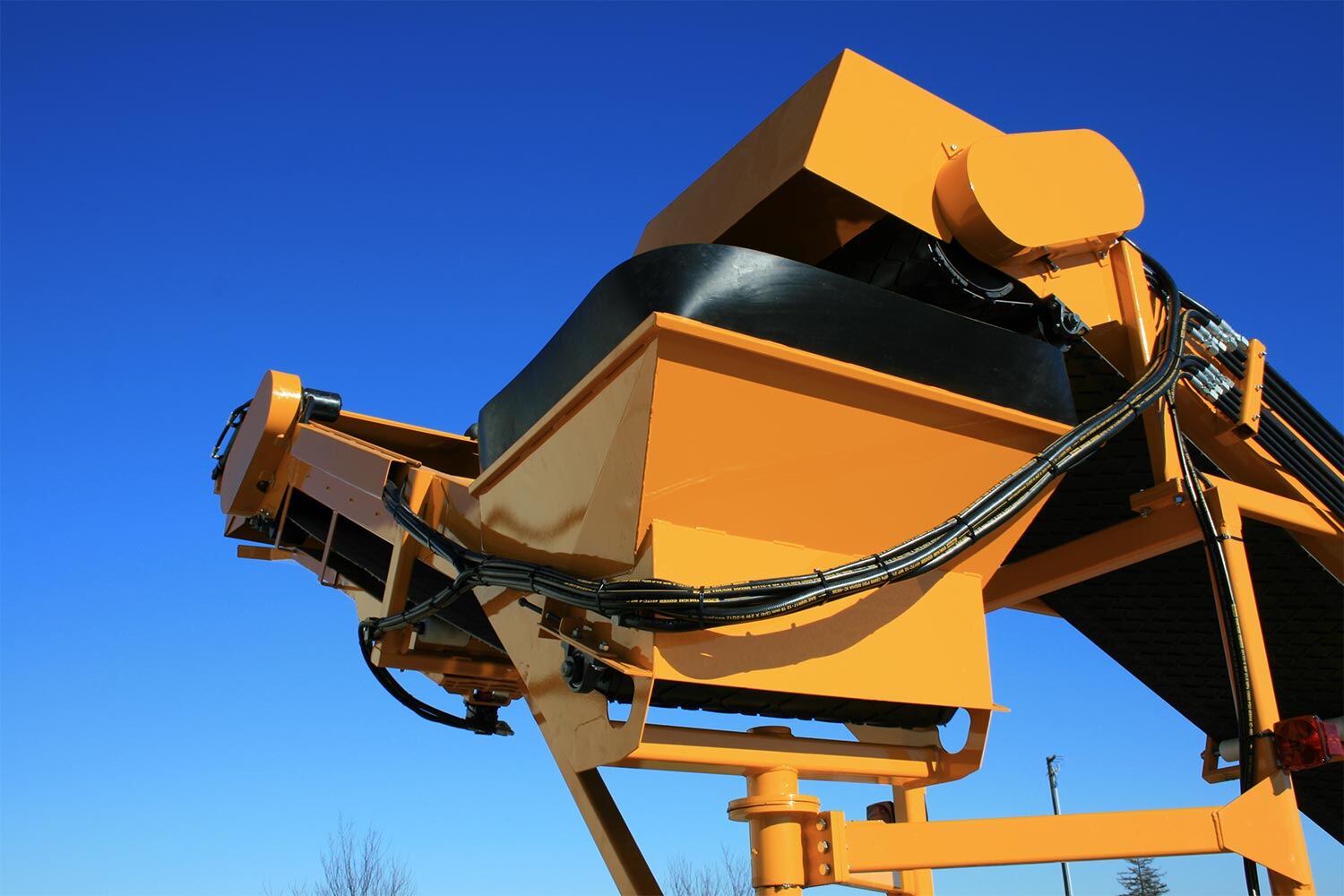

Top section blower for debris removal
Flanged V-section frame
Sturdy modular construction
Durable powder coated finish
Towing lights with wire harness storage compartment
LED work light package

Options

Remote elevator controls

Specifications

Engine	JOHN DEERE 4045 TIER 4
Horsepower	74 HP.
Fuel Type	DIESEL #2, ULTRA LOW SULFUR
Fuel Capacity	31 GAL.
Hydraulic Oil Capacity	38 GAL.
Belt Width	48 IN.
Tires	275/70R/22.5
Weight	14,900 LB
