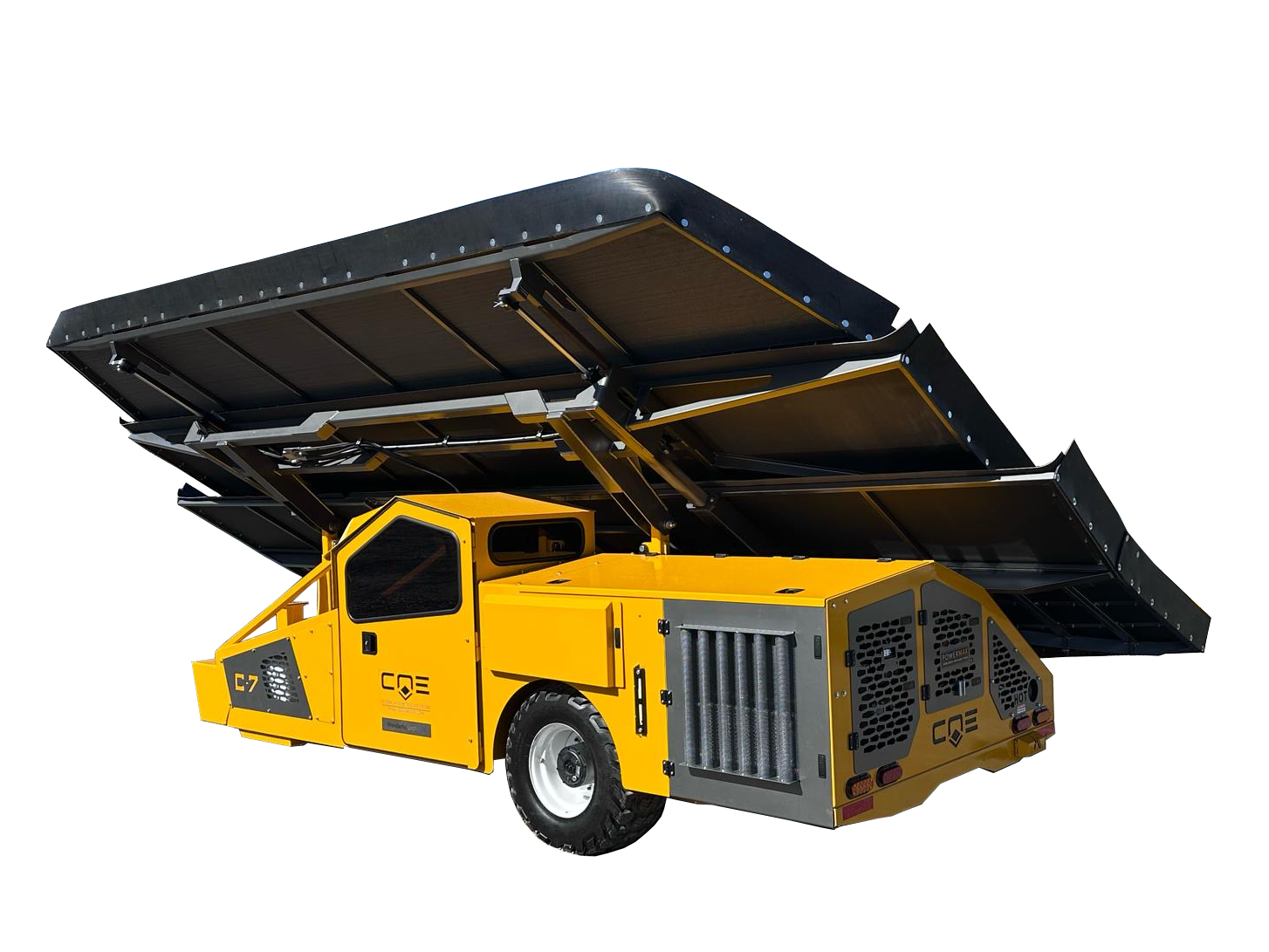

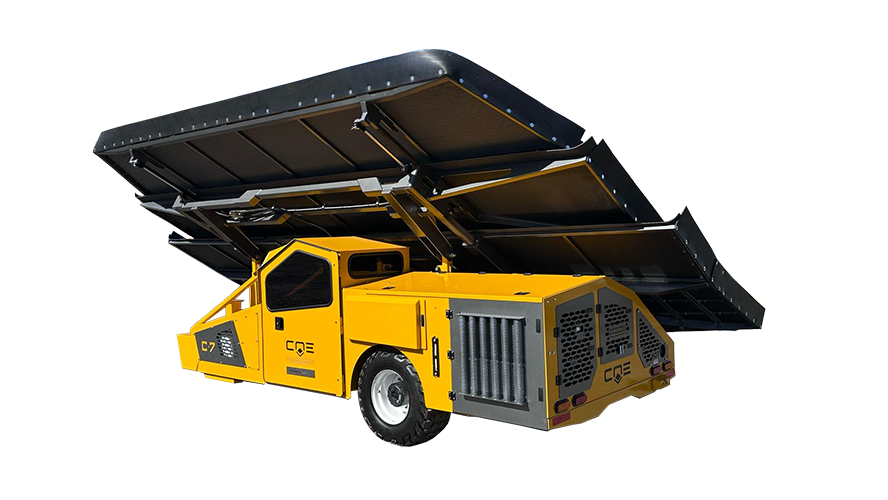

C7 R-Series MK2 CATCHING FRAME SHAKER

Shake Smarter, Not Harder

The C7 Shaker, pairs with the L2 Receiver to form a complete catching frame set for off-ground harvesting across a variety of tree spacings. Available in open cab or AC cab configurations, the C7 features an advanced control system that creates customized, fully repeatable shake patterns — eliminating the variability of manual shaking. The result is more consistent crop removal in a shorter shake cycle, with less tree stress, reduced machine wear, and less debris coming out of the trees.

COE C7 Catching Frame Shaker

Features

Fully programmable shake profiles and automated functions for ease of use and repeatability

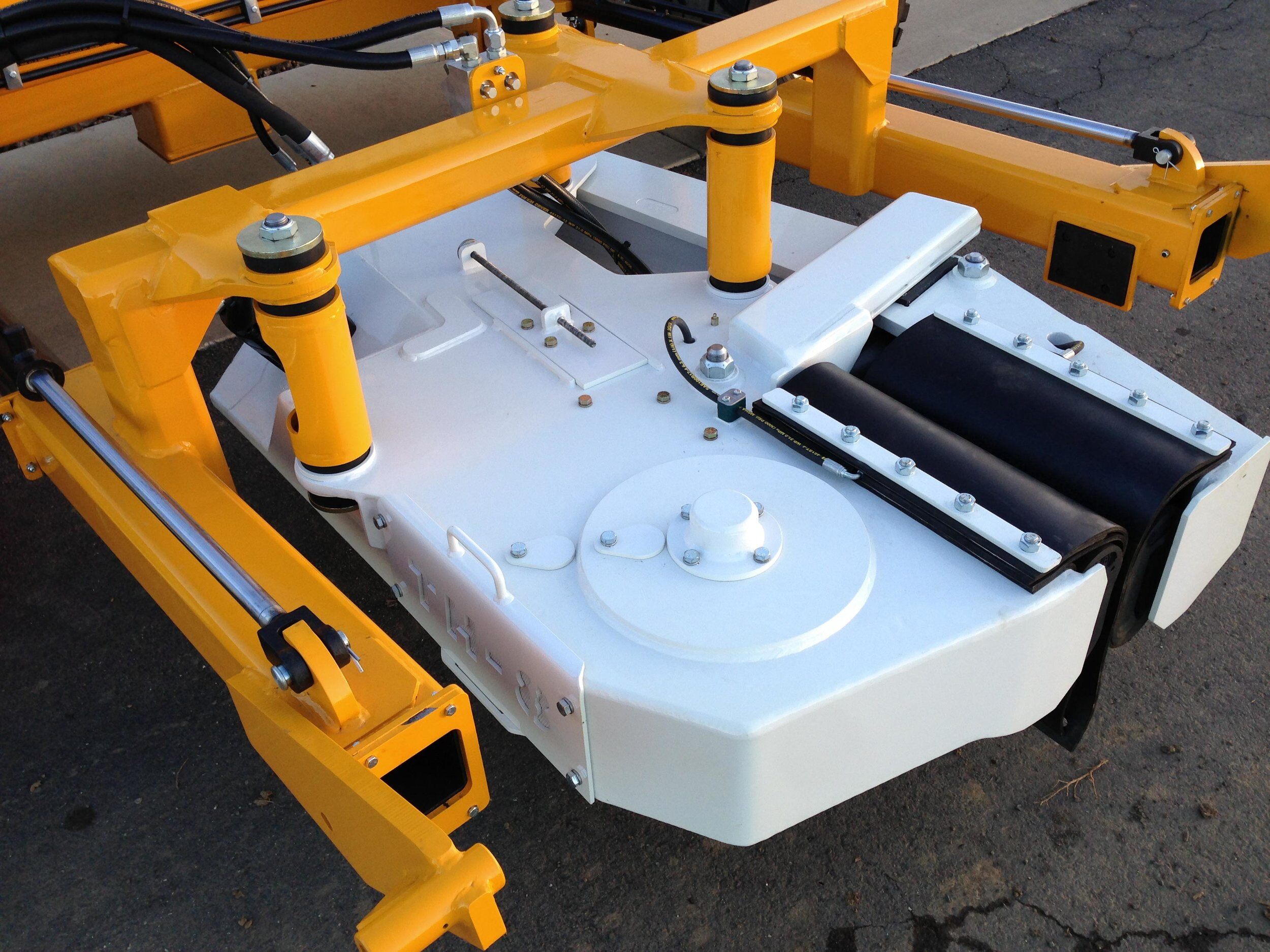

TH-8 shaker head 18” with 110CC VOAC, center swing weights, grease serviceable energy wheels and sling lubrication system
Advanced hydrostatic shake system for quick cycles and maximum crop removal
24’ flanged deflector with 4’ cut-outs and automatic clean off feature
Single joystick control with multi functions
Versatile deck design with PVC covering works in multiple tree spacing’s efficiently
Cooling package is designed to handle debris, including hinged access for cleaning and variable speed electric fans
3WD system with auto-shifting and rear steering with auto centering
Power engine air pre-cleaner system
Sleek and angled exterior design
Durable powder coated finish
LED light bars (Front, rear, side & head) and safety flasher lights (front & rear)
Fail safe parking brake
Arm rest with storage compartment

Options

MAX package: large tree capability, TH-8X, AXIOM lift, TRAX ready frame, 34’ deck
Various shake patterns
TH-8X shaker head 24”
Multiple deck & cut out sizes available
Cut out fencing pre-installed
Mummy deck

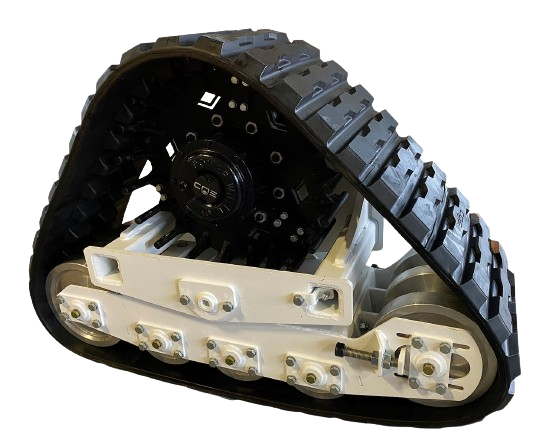

TRAX rubber track drive (new units only)

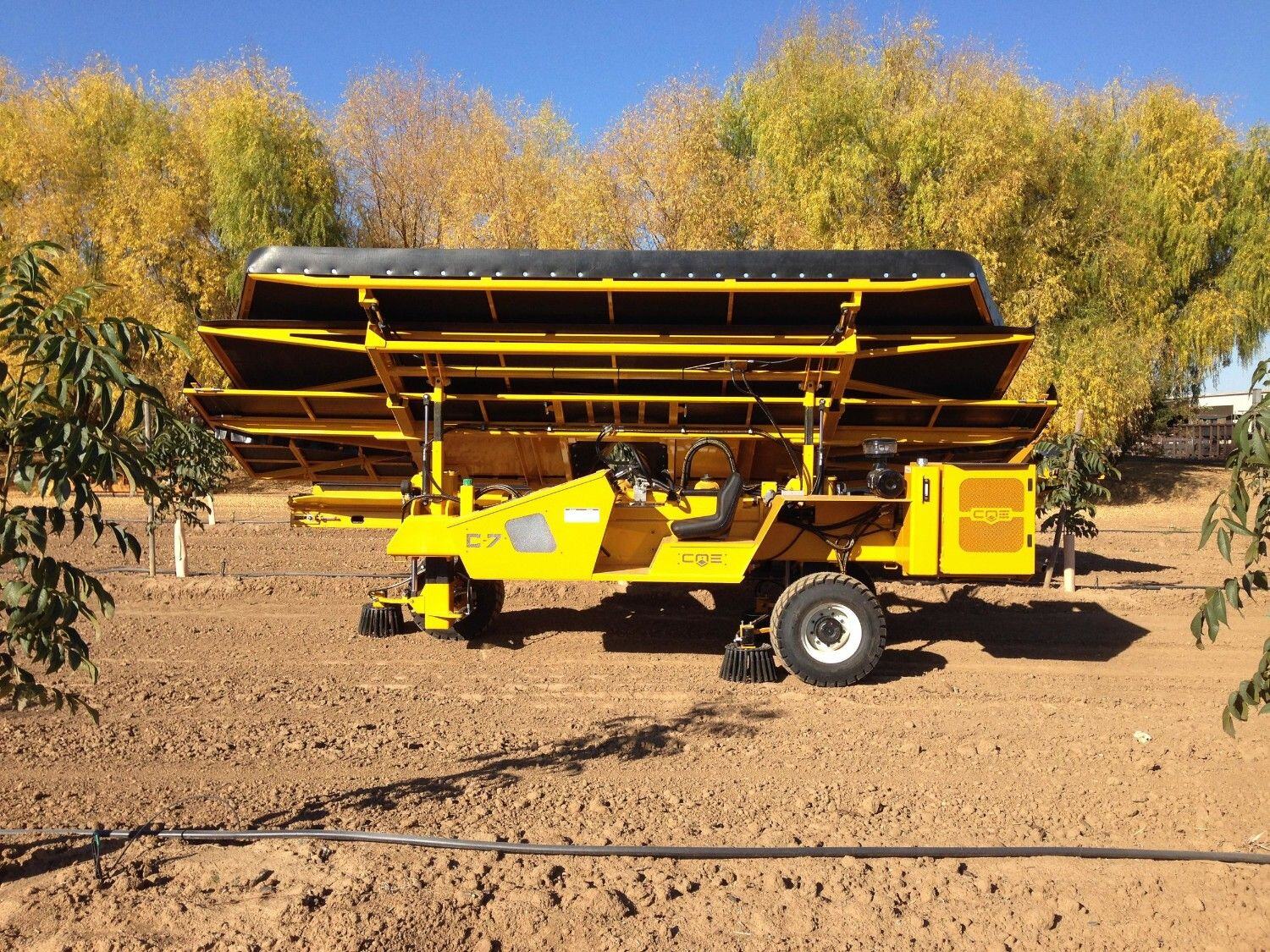

AXIOM lift system
JD139HP T4 final engine with reversing fan (bulk config. only for L2)
Tier 3 engine for international markets
Air conditioned & heated cab
Automatic sweepers with hydraulic lift
Traction valve
Urethane deck fencing
Canvas deck coverings
Soft padding

Specifications

Engine	JOHN DEERE, 4045, TIER 4F
Horsepower	STD. 74 HP. / OPT. 139 HP.
Fuel Type	DIESEL #2, ULTRA LOW SULFUR
Fuel Capacity	C7 50 GAL.
DEF Capacity	STD. NO DEF / 139 HP. 5 GAL.
Water Capacity	C7 30 GAL.
Ground Speed	0-15 MPH
Tires	33/16.5 X 16.5 12-PLY
Weight	C7 13,500 LBS.
