8772 Next Generation Self-Propelled Nut Harvester

8772 Self-Propelled Nut Harvester

Highly maneuverable Self-Propelled harvester designed to handle the largest crops.
Now with increased throat height and clearance over the cleaning chains.
Equipped with industry leading cleaning chains, variable speed suction fan and adjustable windboard to optimize performance for all crops and conditions.
Enhanced suction zone geometry to maximize material separation and crop cleanliness.
In-Cab control of fan speed to optimize fuel efficiency and reduce dust.
Hydraulic hitch and on/off elevator chain for end of row flexibility.
High-quality rear-view camera system, expandable up to four cameras.

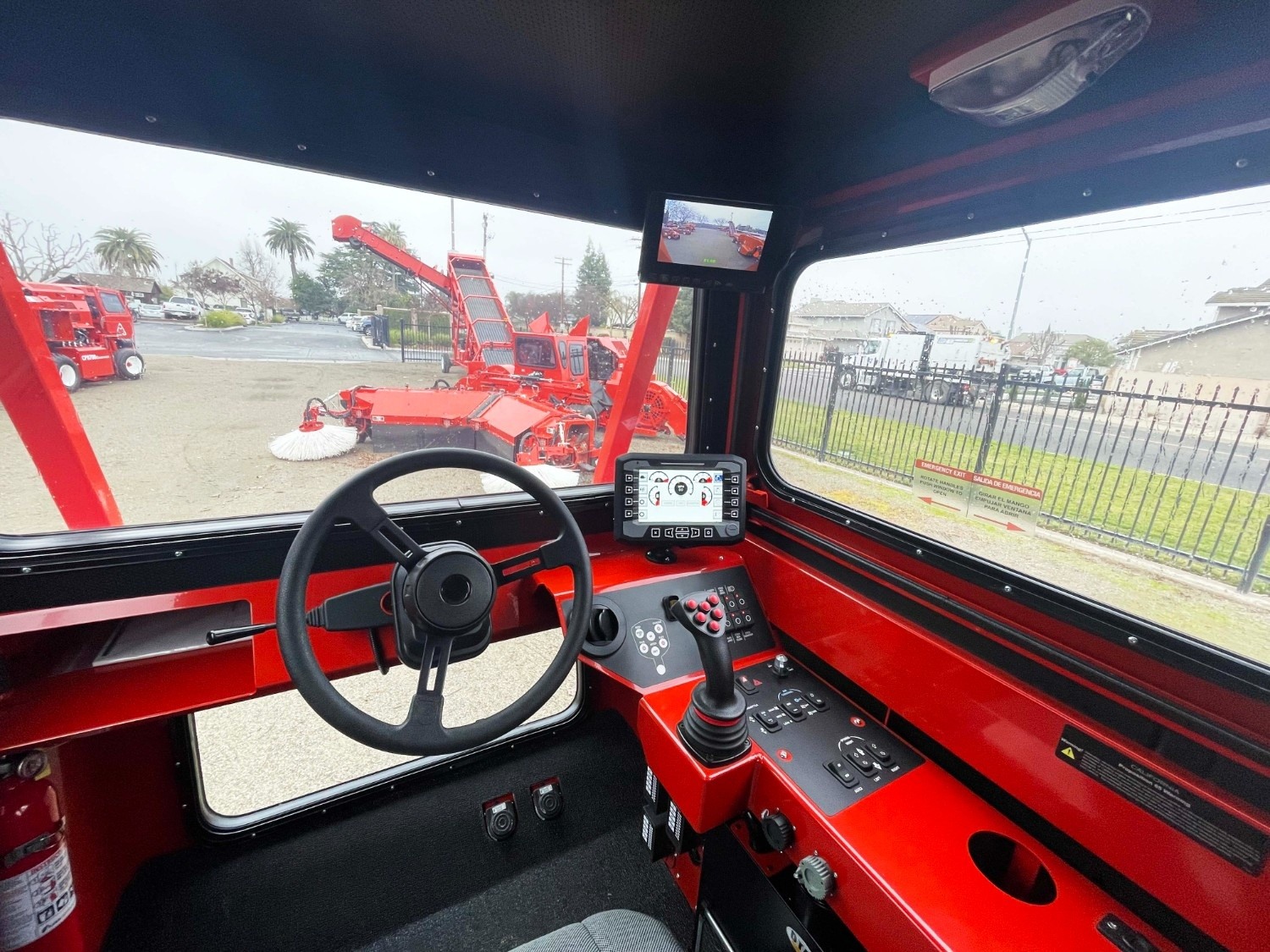

Next generation air-cab with 1/2” shatter resistant windows to improve safety and comfort.
Variable speed rotary trap for reduced dust during pickup and better end of row cleanup.
Fail-Safe parking brake system that automatically engages when the engine is off.
Hydraulically powered undershot suction fan for high capacity, easy clean out and end of row shutoff.
Turn signals and flashers for improved safety.

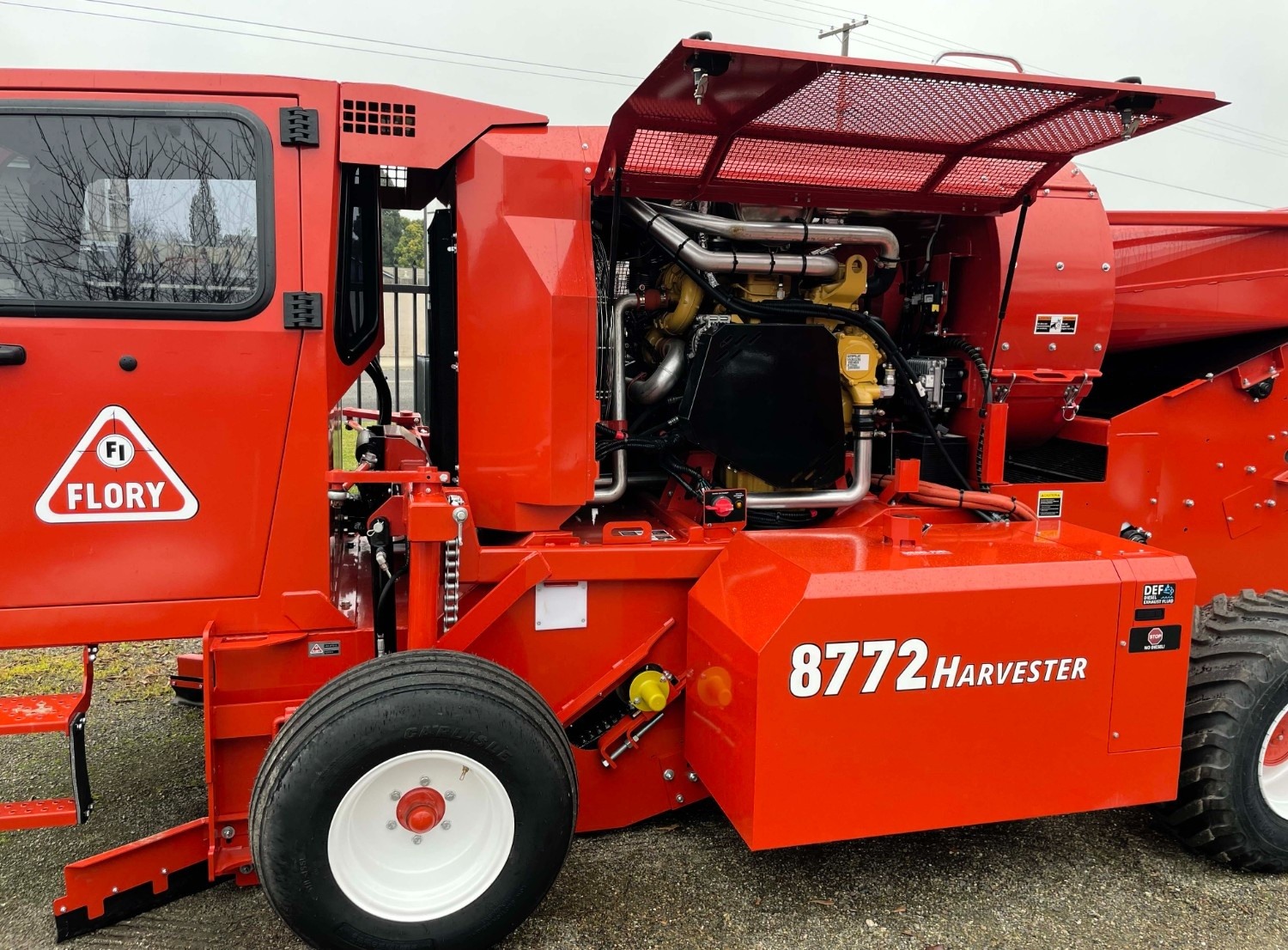

Engine	CAT, 4.4 LITER TURBO, TIER 4F
Horsepower	174 HP.
Fuel Type	DIESEL #2, ULTRA LOW SULFUR
Fuel Capacity	97 GAL.
DEF Capacity	5 GAL.
Hydraulic Oil
Capacity	65 gal
Speed	LOW RANGE: 0 - 8.5 MPH / HIGH RANGE: 0 - 17 MPH
Weight	13,200 LBS.
Front Tires	11L - 15SL, 12 PLY
Rear Tires	400 / 60 X 15.50, 14 PLY
Min HP	174
Options	Heater \| Auger Drive Kit \| Front Paddle Sweeps \| Front Drum V or Wing Sweeps \| Power Assist Traction Valve \| Mud Brush \| Herbst Valve Kit \| Secondary Fan Outlet (for Pecans)
Other	• AUX. PUMP FLOW: 20 GPM • THROAT WIDTH: 48 IN.

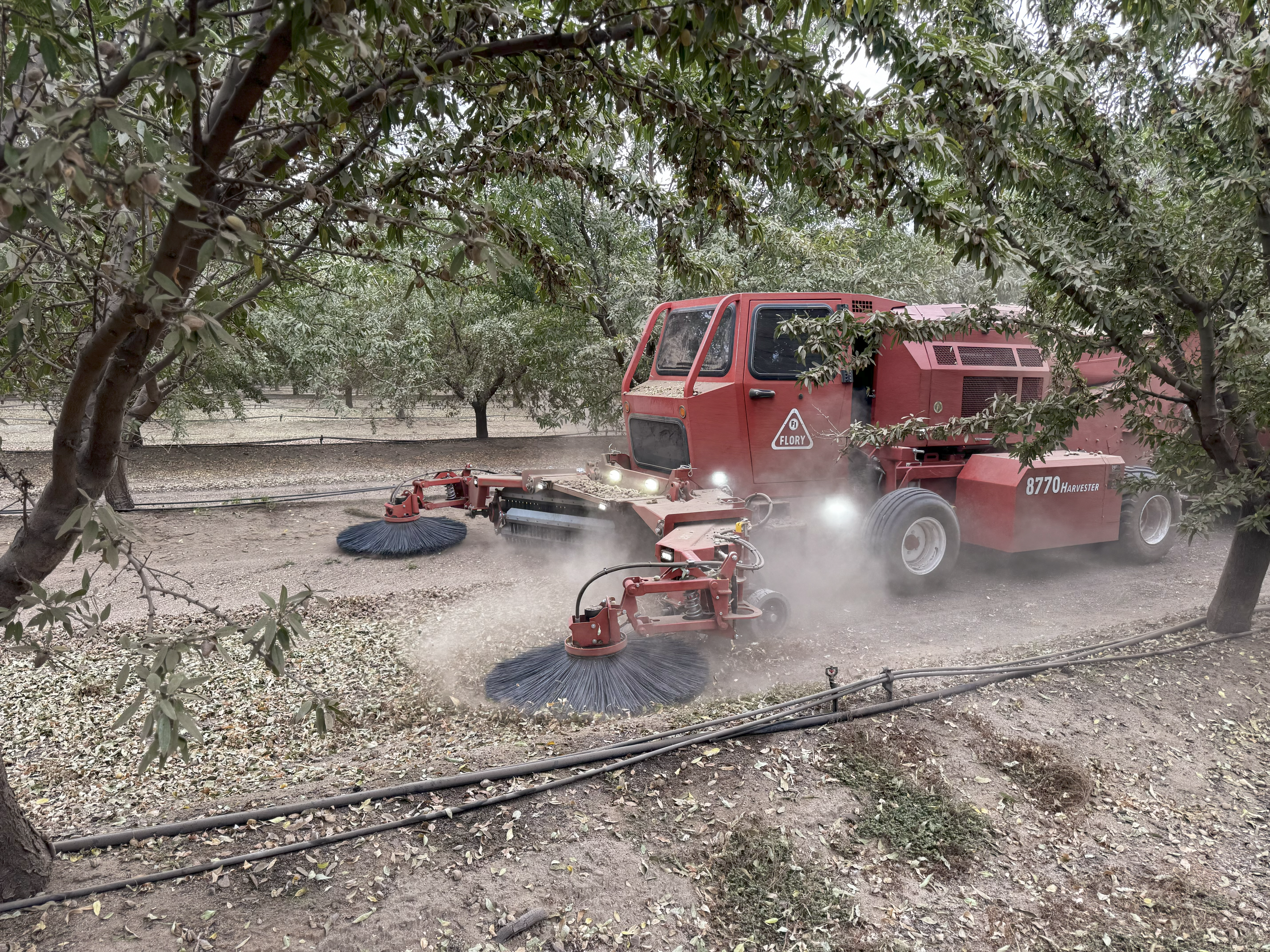

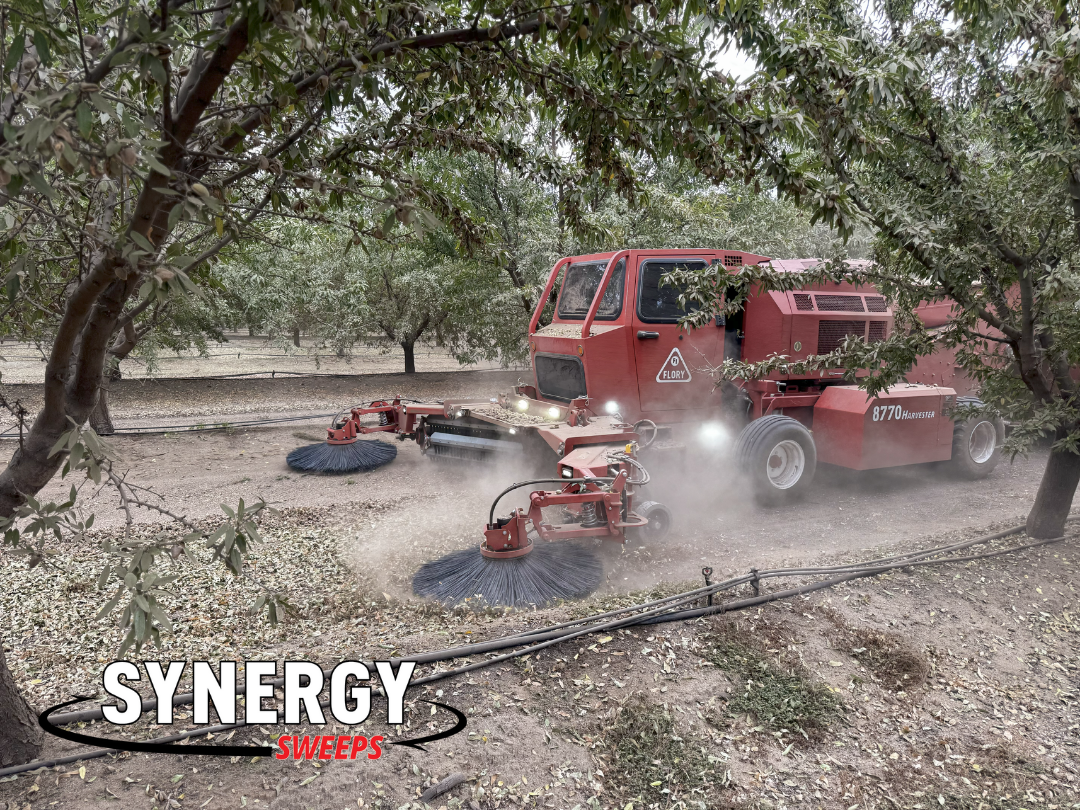

Synergy Sweeps (Option)

Designed to streamline harvest by eliminating redundant sweeping passes.

Eliminate closing sweeper passes for greater harvest efficiency
Compatible with 8700, 8770, 8772, and CP8700 harvesters (factory install required)
Adjustable sweeping widths from 15–17.5 ft with quick, tool-free brush adjustments
4.5 ft, 4-bar reels with wire teeth and rubber fingers for consistent sweeper performance
Independently floating sweeper heads with easy depth adjustment using the Flory standard T-handle tool
Intuitive operator control through joystick and footswitches with automatic lift sequencing
Reel speed adjustable from the control screen; brush speed via exterior flow control
Wide 180° forward lighting for clear visibility in low-light conditions
Sweeps fold upright for transport
Floating brush design follows uneven ground, reducing dirt movement and brush wear
