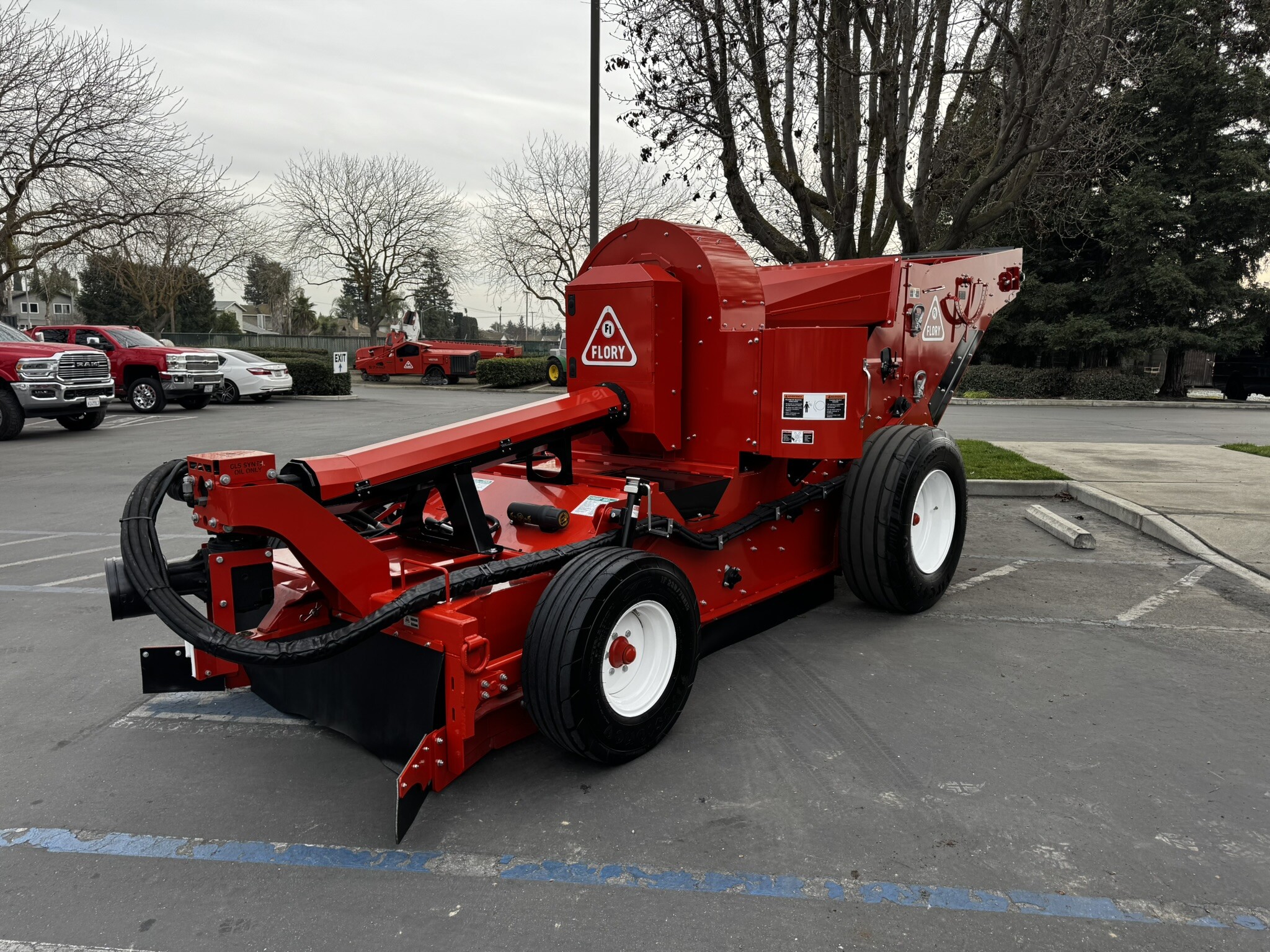

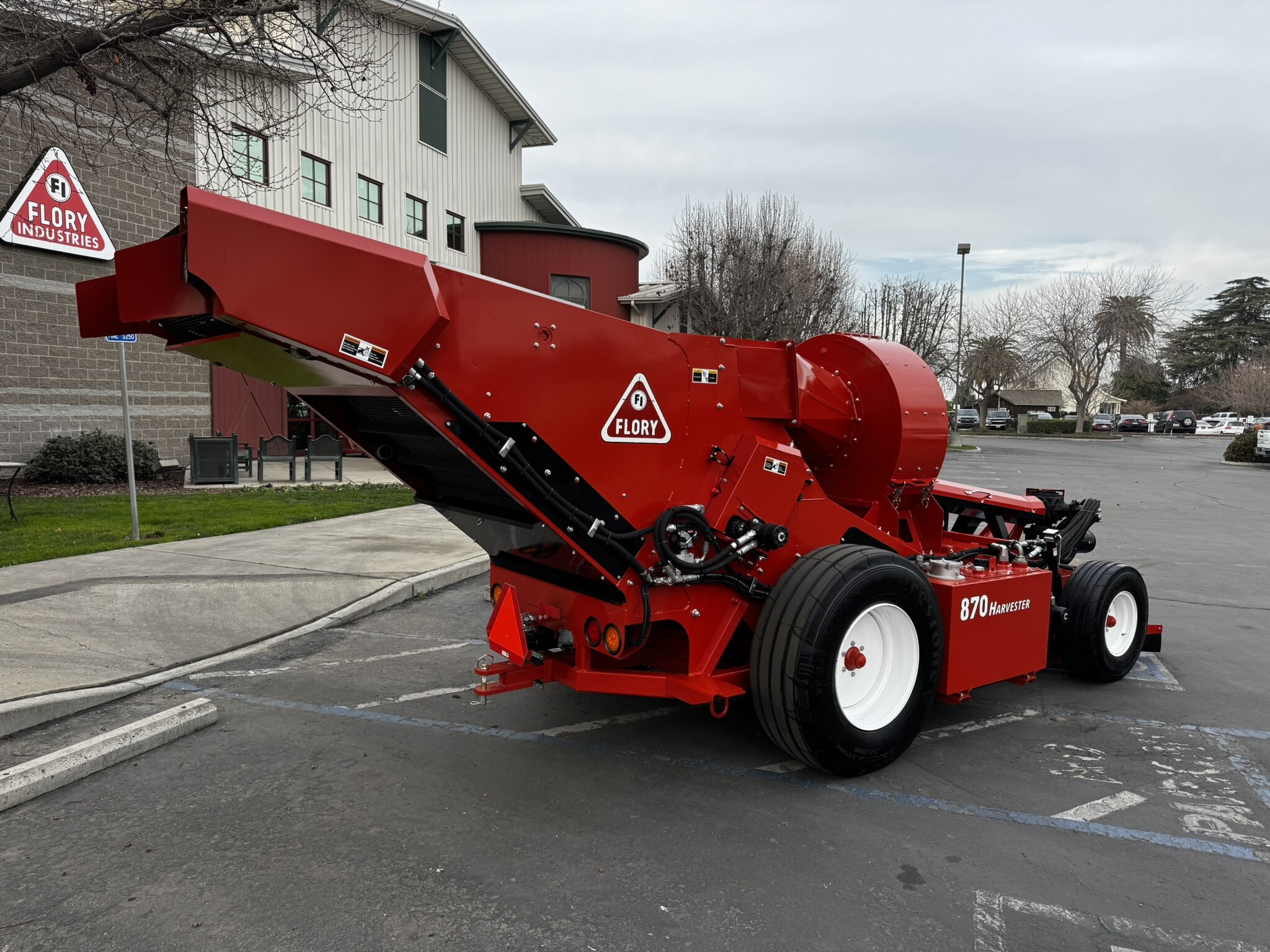

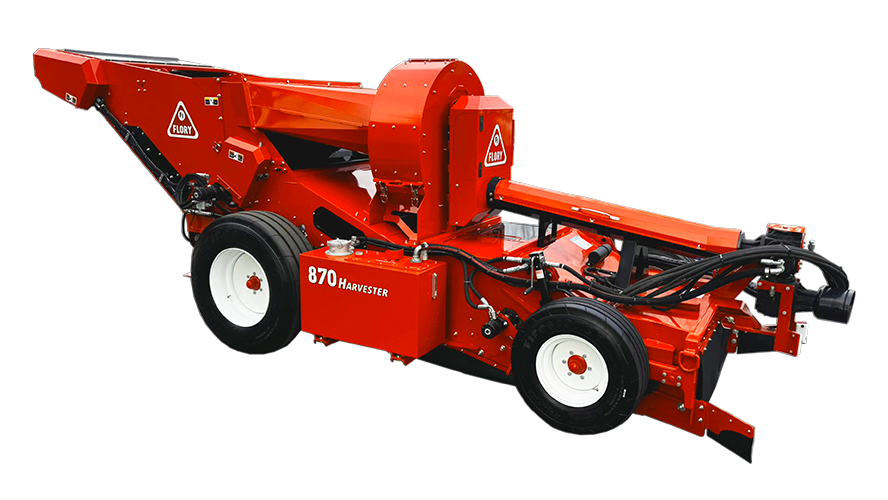

870 High Capacity PTO Nut Harvester

870 High Capacity, Low Dust PTO Nut Harvester

High-capacity PTO powered nut harvester designed to maximize harvest speed, operational efficiency, and crop cleanliness

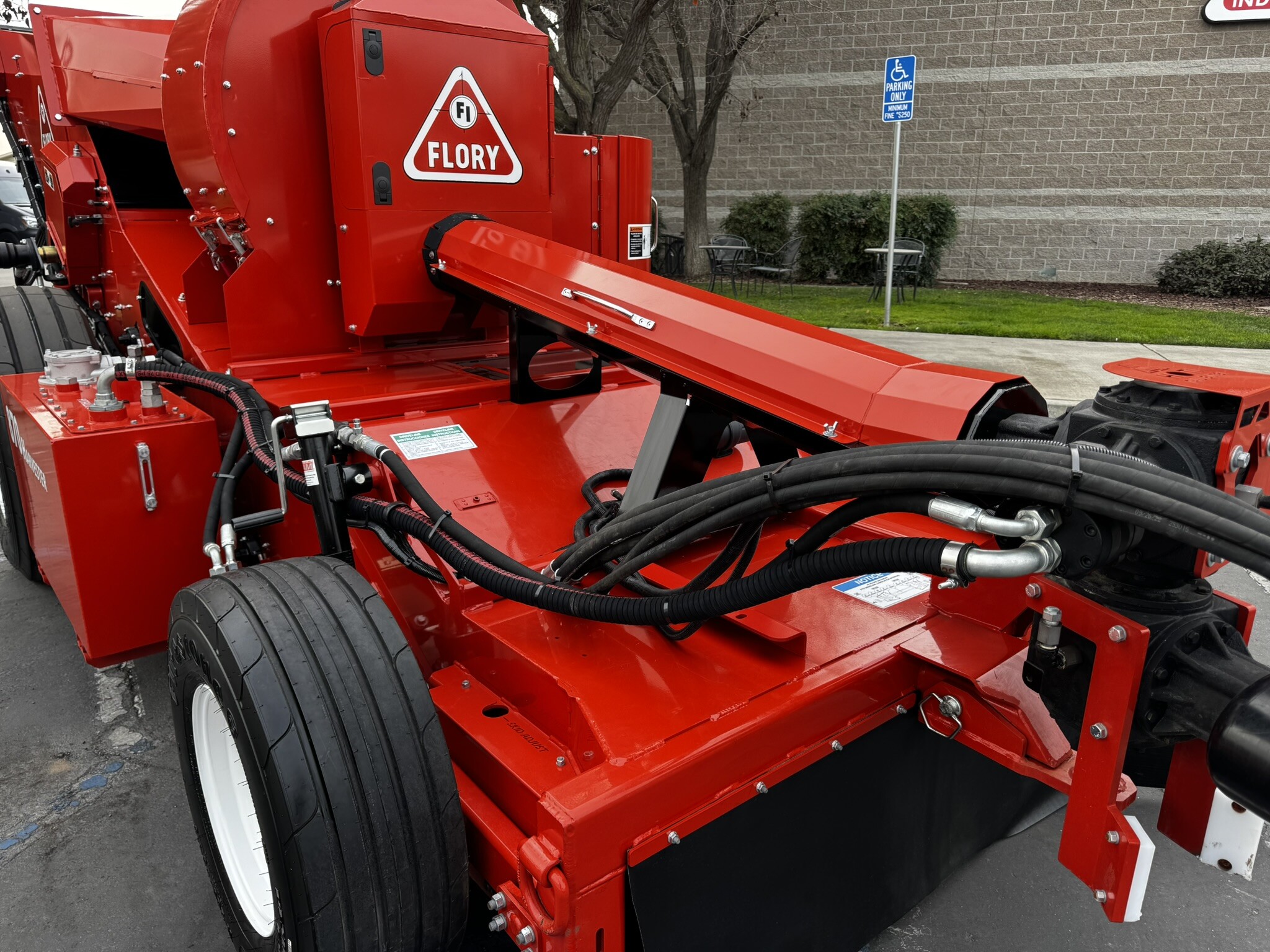

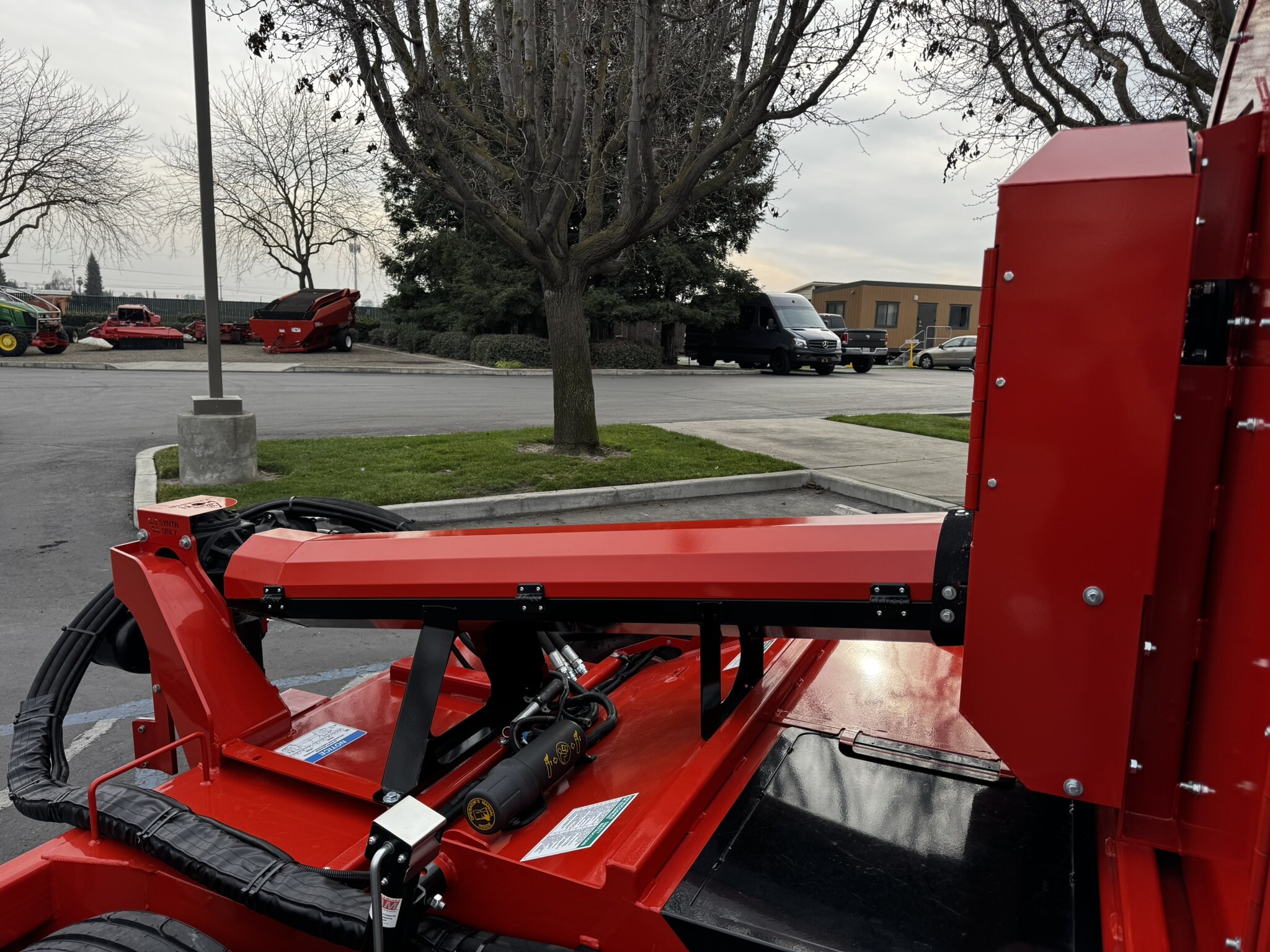

Swivel gearbox allows for continuous PTO operation while turning
Industry leading 57" wide throat to close the windrow and prevent missed nuts
Large undershot fan suction fan for superior performance and ease of cleaning
Enhanced suction zone geometry to maximize material separation and crop cleanliness
Hydraulically driven pickup and conveying systems ensure dependability and smooth operation
Three cleaning chains for superior dirt separation and reduced dust emissions
Cleaning chains and drive components are interchangeable with the 860 and VX240 harvester
Shared frame with the VX240 allows for the Vortex dust separation module to be added and removed

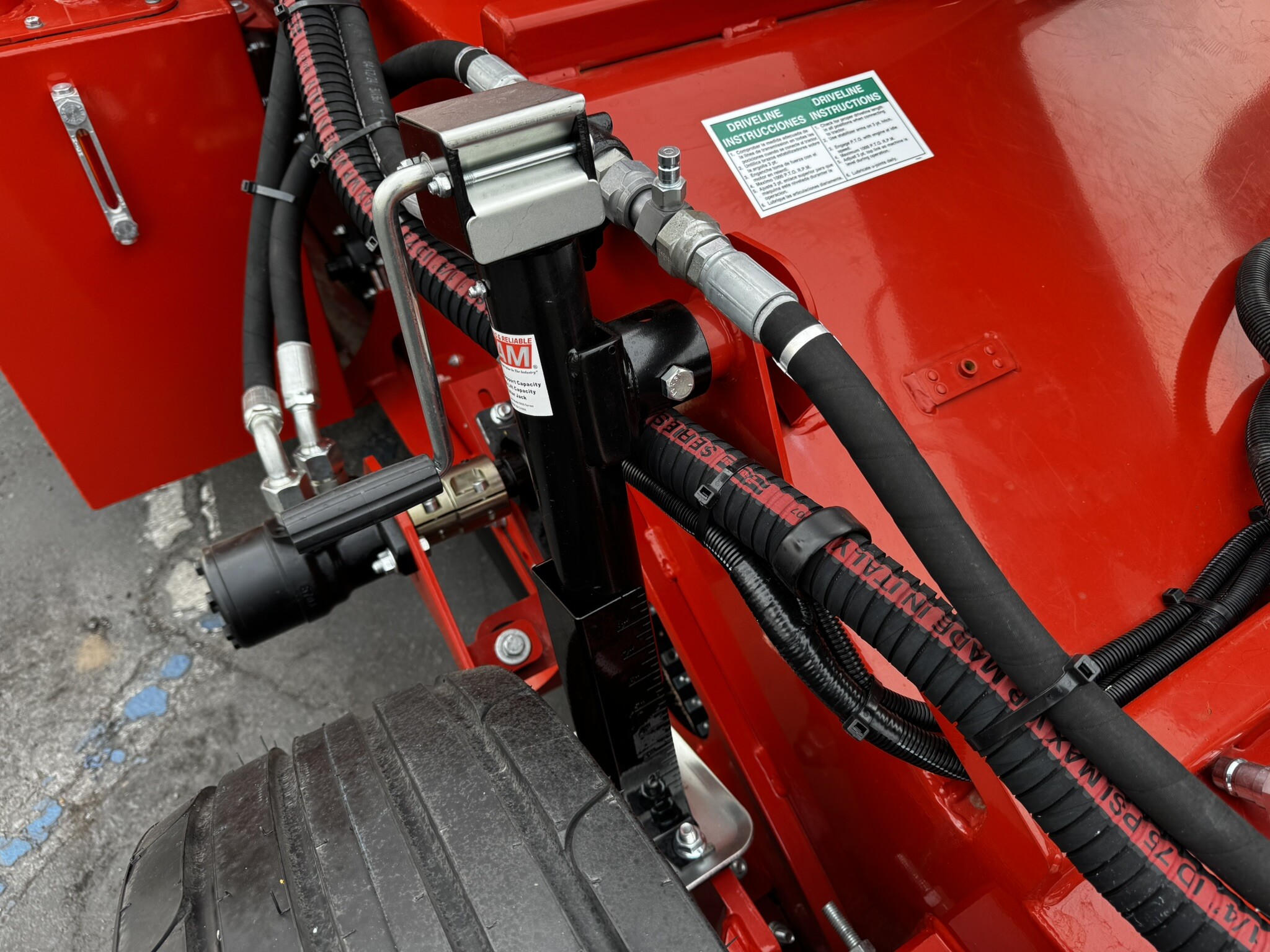

Easy tool-free head height adjustment with jack mechanism

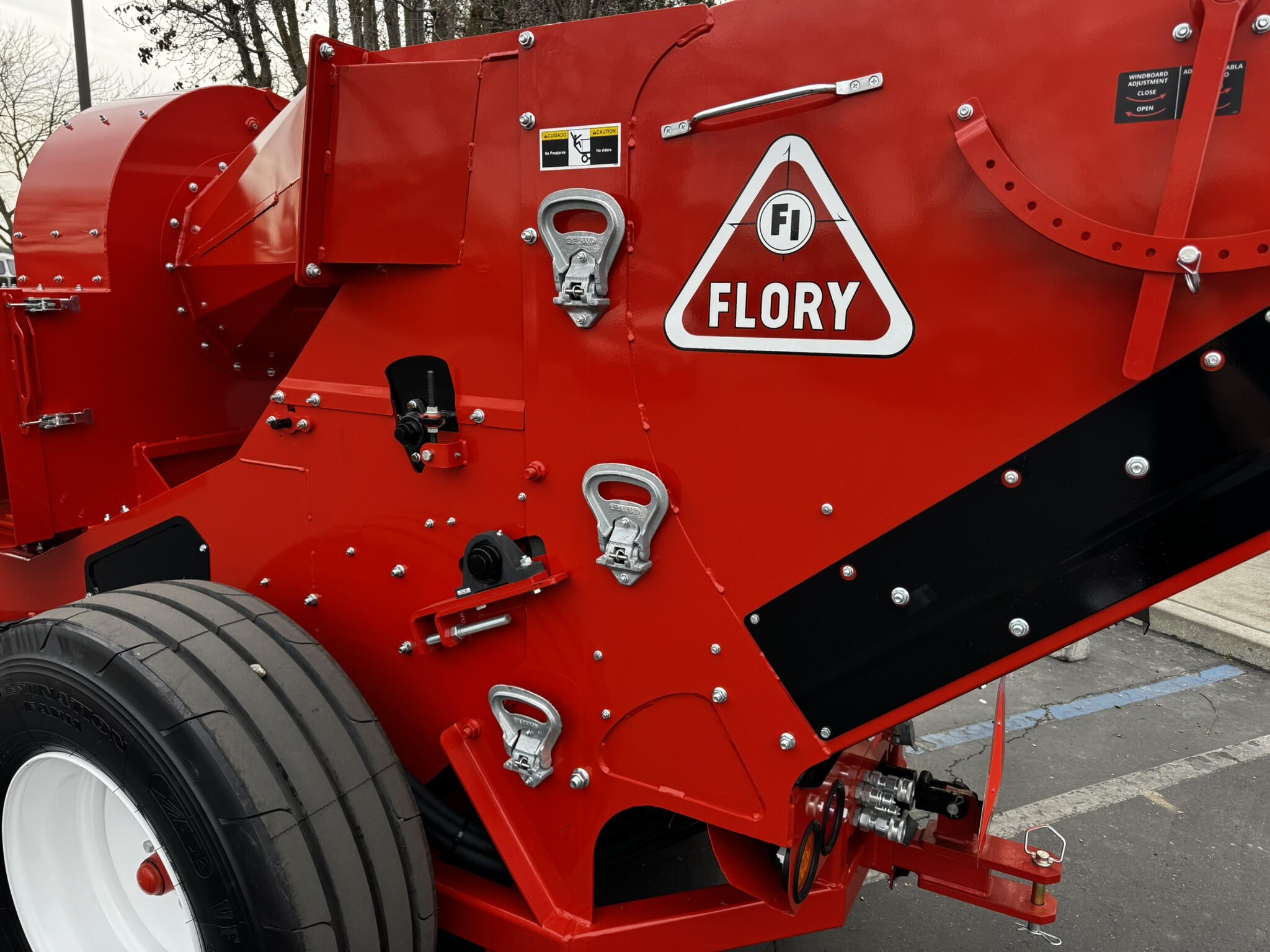

More access panels for ease of cleaning and servicing

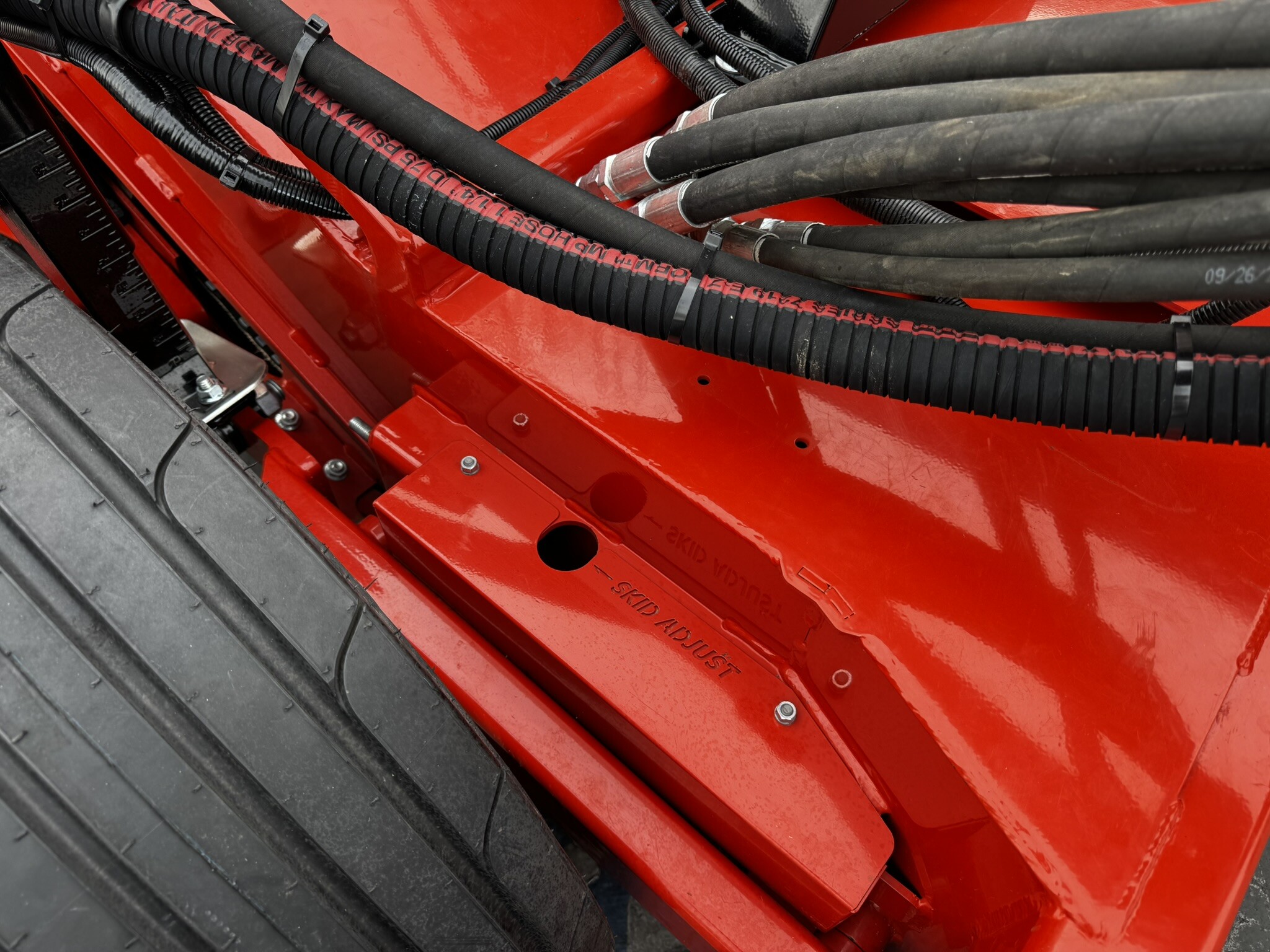

Improved side plate wear strip and deflector adjustment
Standard features include adjustable hydraulic hitch, camera with monitor, and hazard lights with turn signals

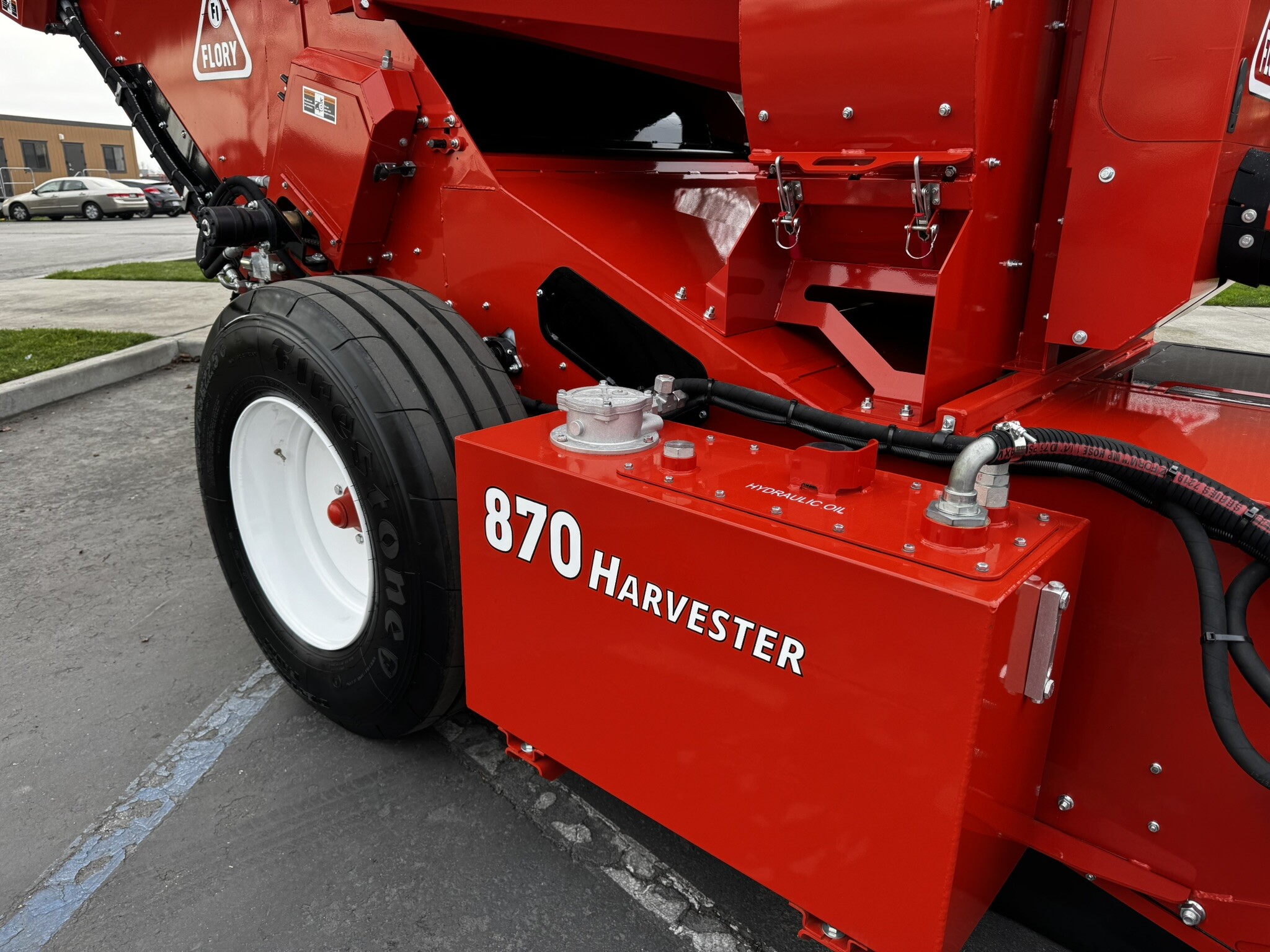

Hydraulic Oil Capacity	40 Gal.
Length	19'
Height	90 1/2"
Width	90 1/2”
Weight	8,400 lbs.
Throat Width	57”
Cleaning Chain Width	48”
Front Tires	280 / 70R – 15
Rear Tires	385 / 65R - 22.5
PTO RPM	1,000
Min HP	85
Options	Front Paddle Sweeps (std. for pecans and hazelnuts)
