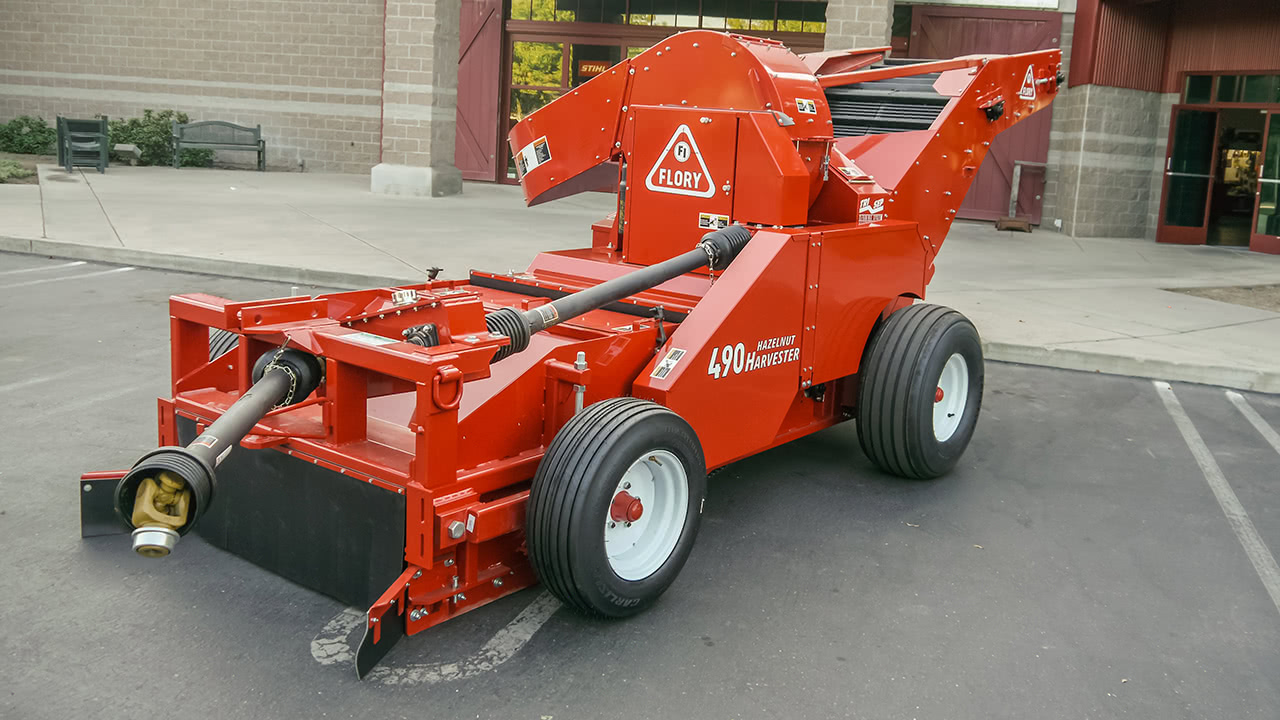

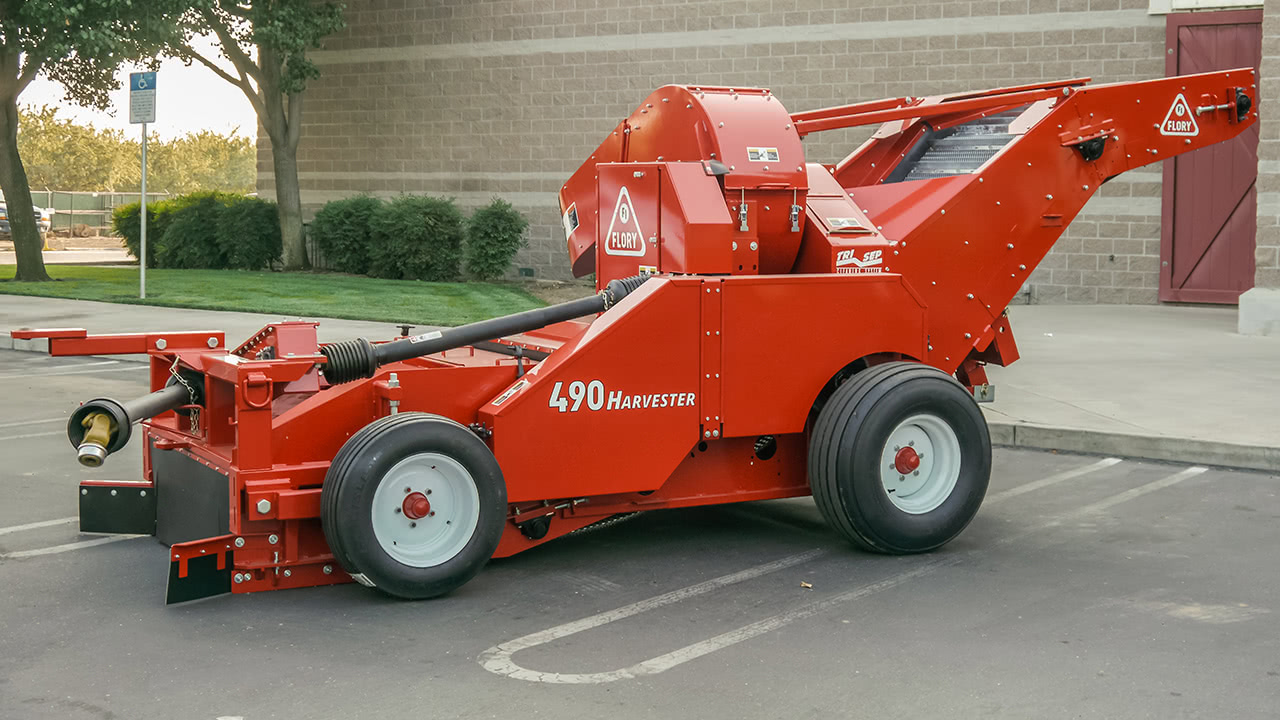

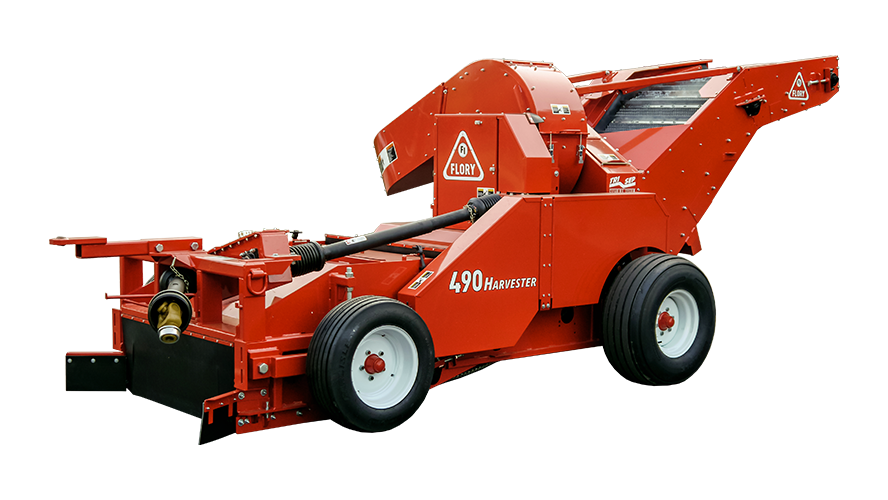

490 PTO Nut Harvester

490 PTO Harvester

Cost-effective harvesting for a variety of nut crops and conditions

48 in. straight-thru conveyance with 3 stage tumbling action provides maximum dirt separation for superior cleaning performance

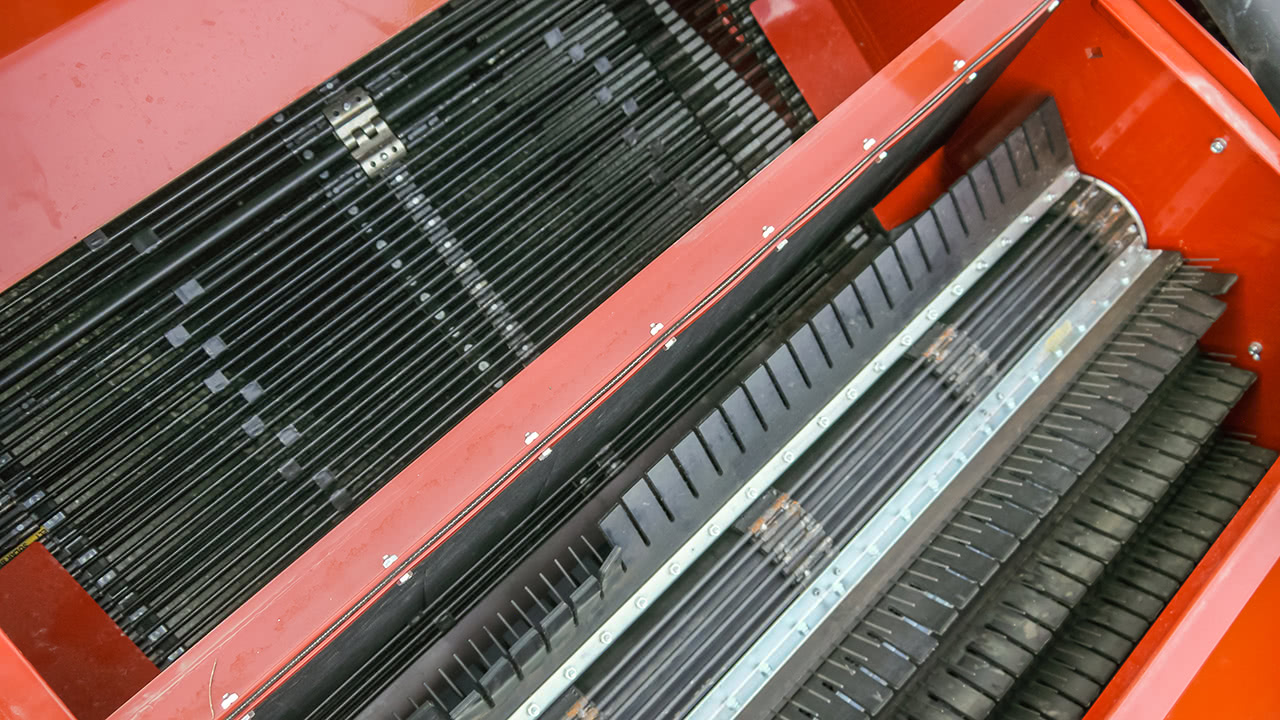

The proven pickup system combined with twin rod chains result in a much cleaner product

3 in. pick-up belt shaft for extended belt life

Simple shaft and chain drive system reduce cost and ease serviceability

Auger Drive Kit

Front Paddle Sweeps (std. for pecans)

Hydraulic Power Pak

Herbst Valve Kit

Camera Kit with Monitor

Length	19 FT.
Height	81 IN.
Weight	4,900 LBS.
Width	90 IN.
Pick-up Width	48 IN.
Cleaning Chain Width	48 IN.
Front Tires	27 x 9.50 - 15, 4 PLY
Rear Tires	31 x 13.5 - 15, 8 PLY
PTO RPM	540
Min HP	Almonds - 75 HP. \| Walnuts - 85 HP. \| Pecans - 85 HP. \| Hazelnuts - 85 HP.
