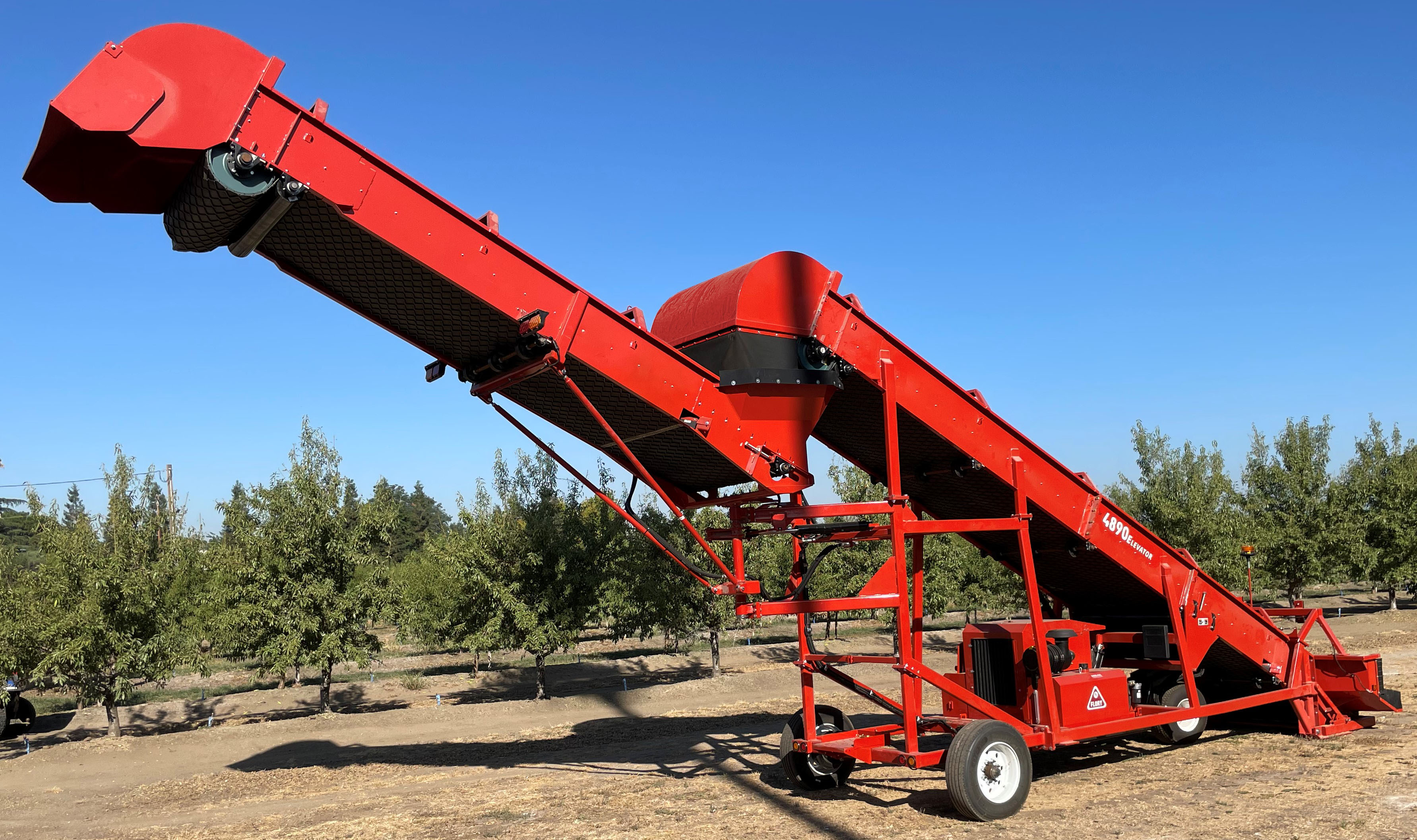

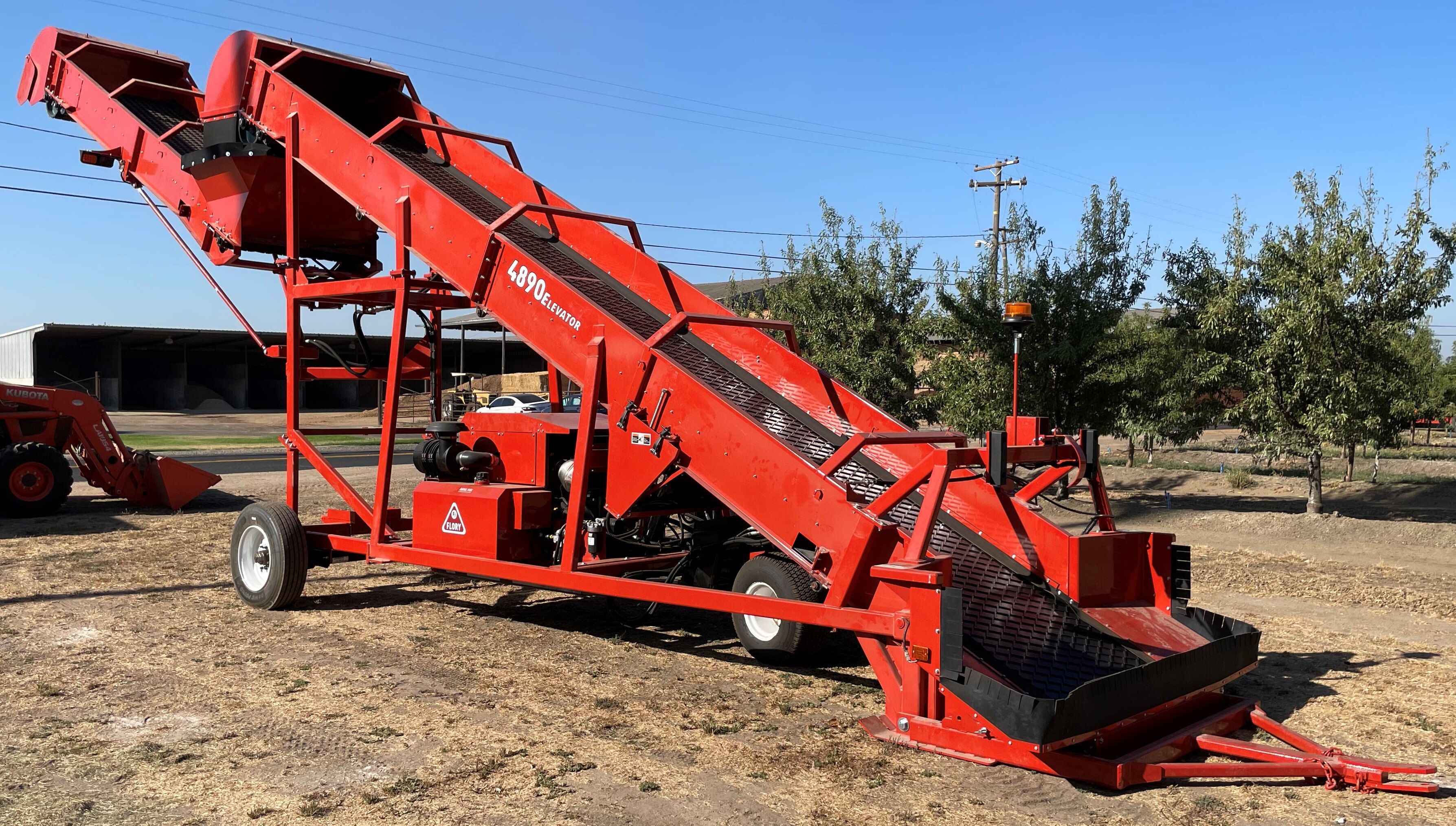

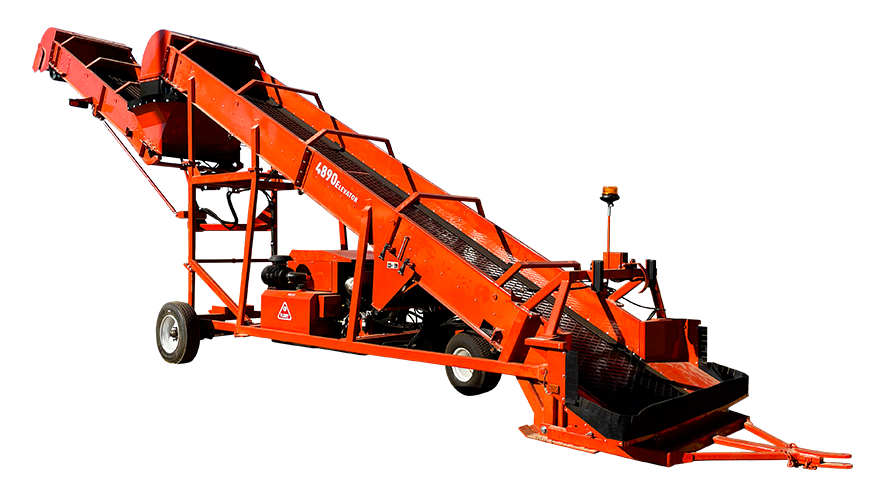

4890 180 Degree Field Elevator

High capacity 48" wide belt with variable speed, minimizes unload time, which maximizes shuttle efficiency.
Automatic engine speed and belt start actuated by shuttle trigger.
Powered drive wheel allows for easy movement and positioning.
Adjustable output hood centers the load in the trailer without repositioning.
Large unload area and smooth transition from the shuttle prevents loss and damage to the product.
The 180° swivel on the 4890 is actuated by a simple hydraulic cylinder and linkage with maintenance-free bushings, which results in smooth motion and ease of service.

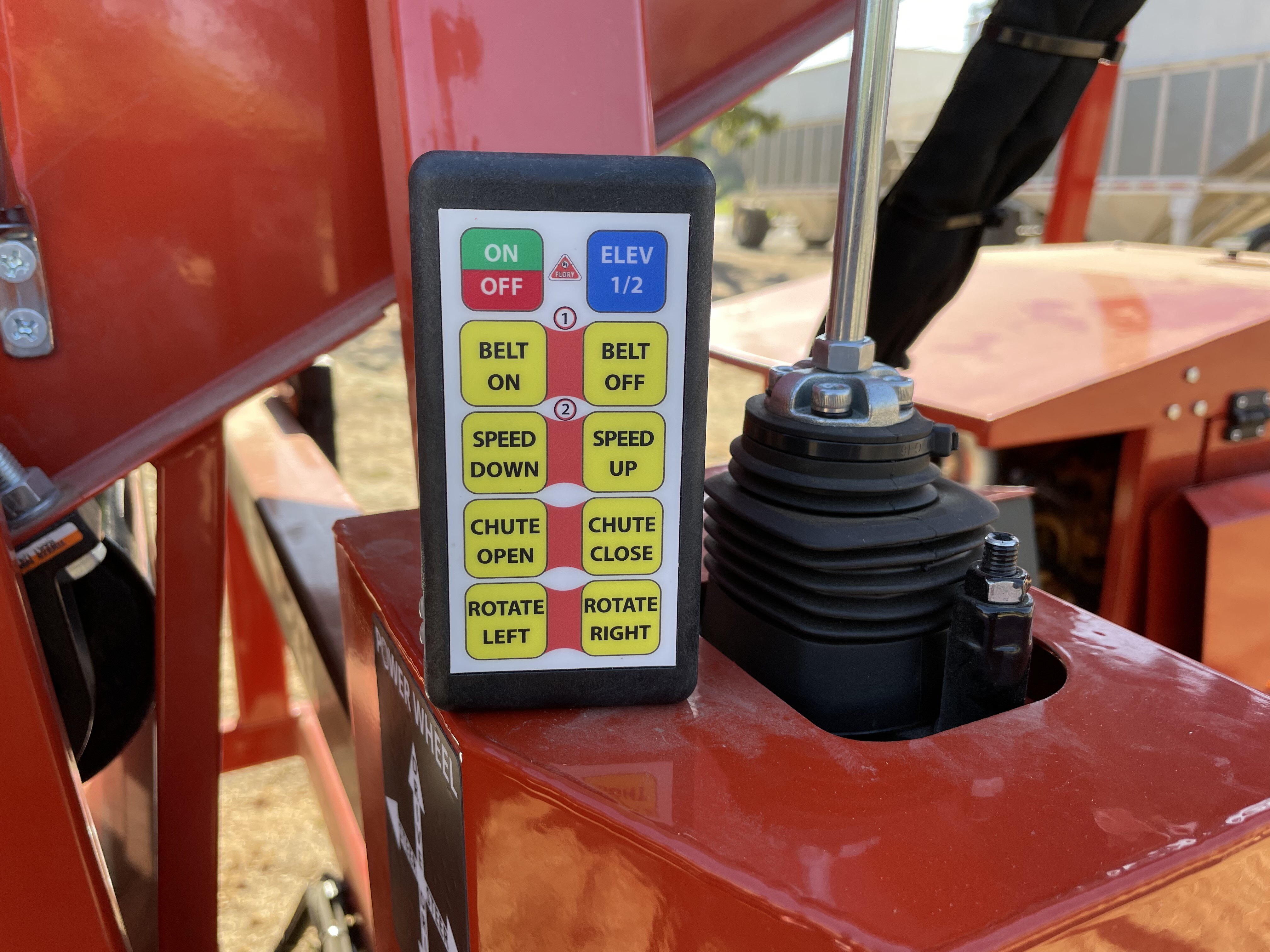

Wireless remotes allow control of elevator functions by the ground crew or directly from the cab of the shuttle.

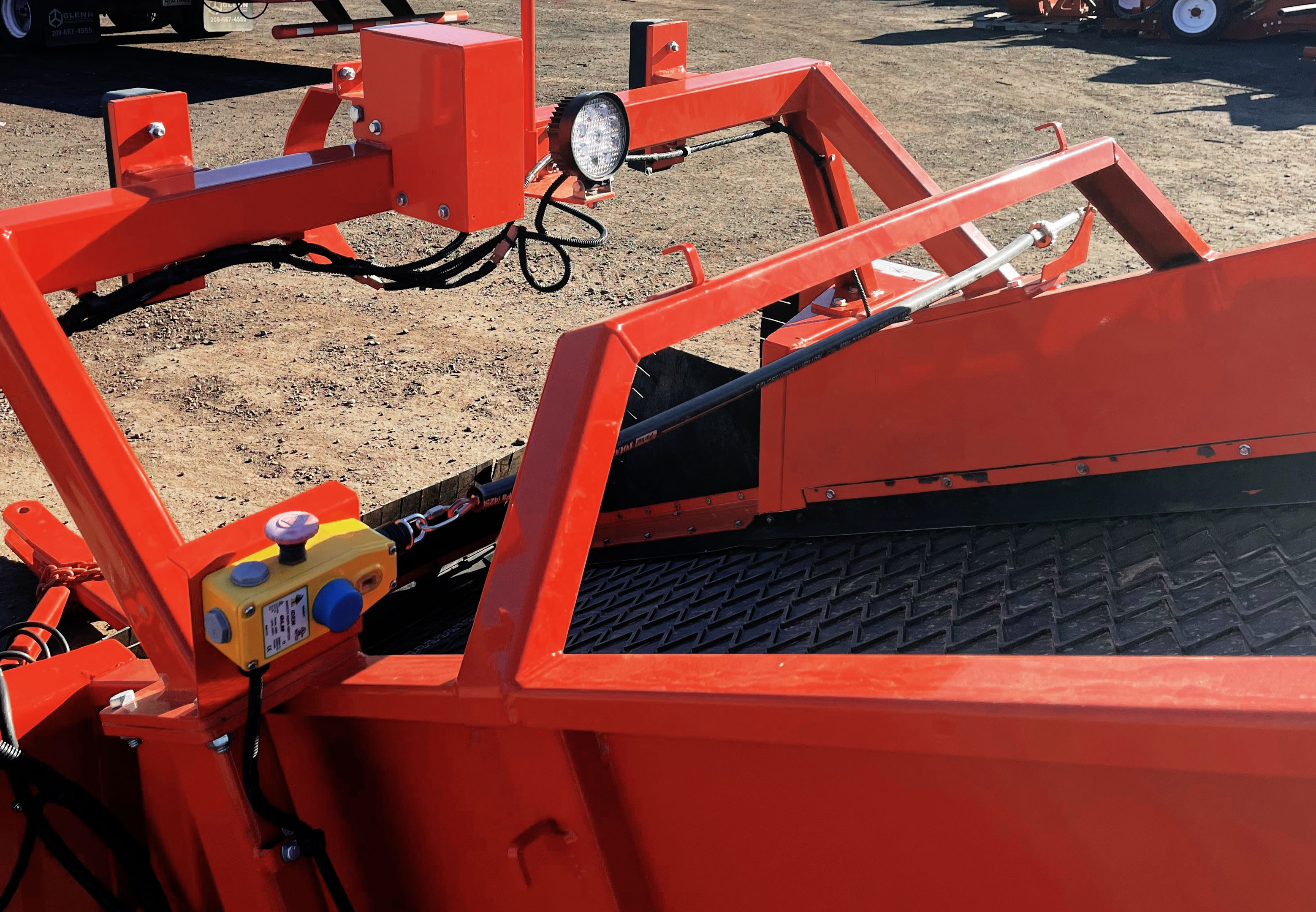

Trough mounted E-stop, work lights and flashing light tower enhances operator safety.
Suspension axle, integrated brakes and LED lighting improves towing safety.

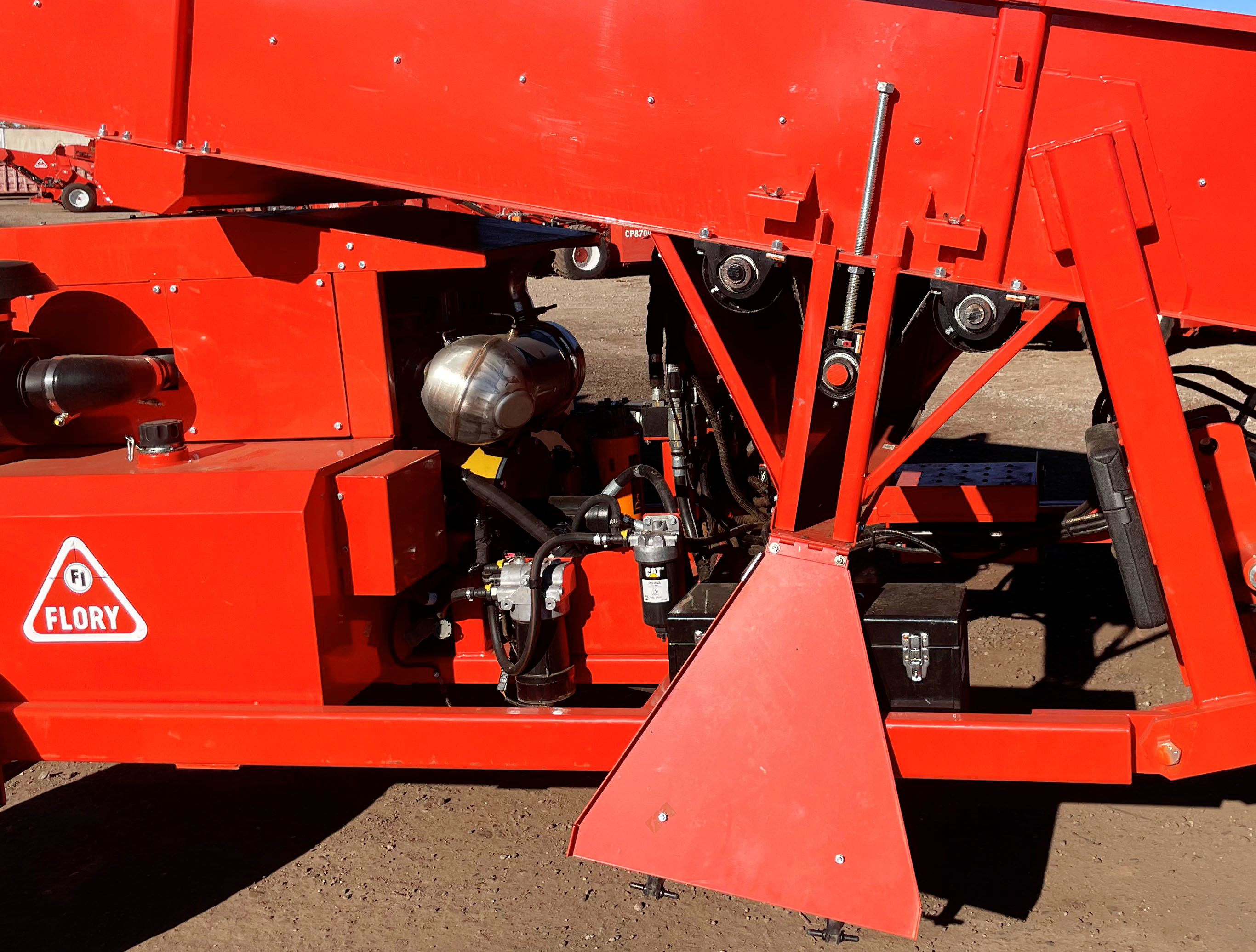

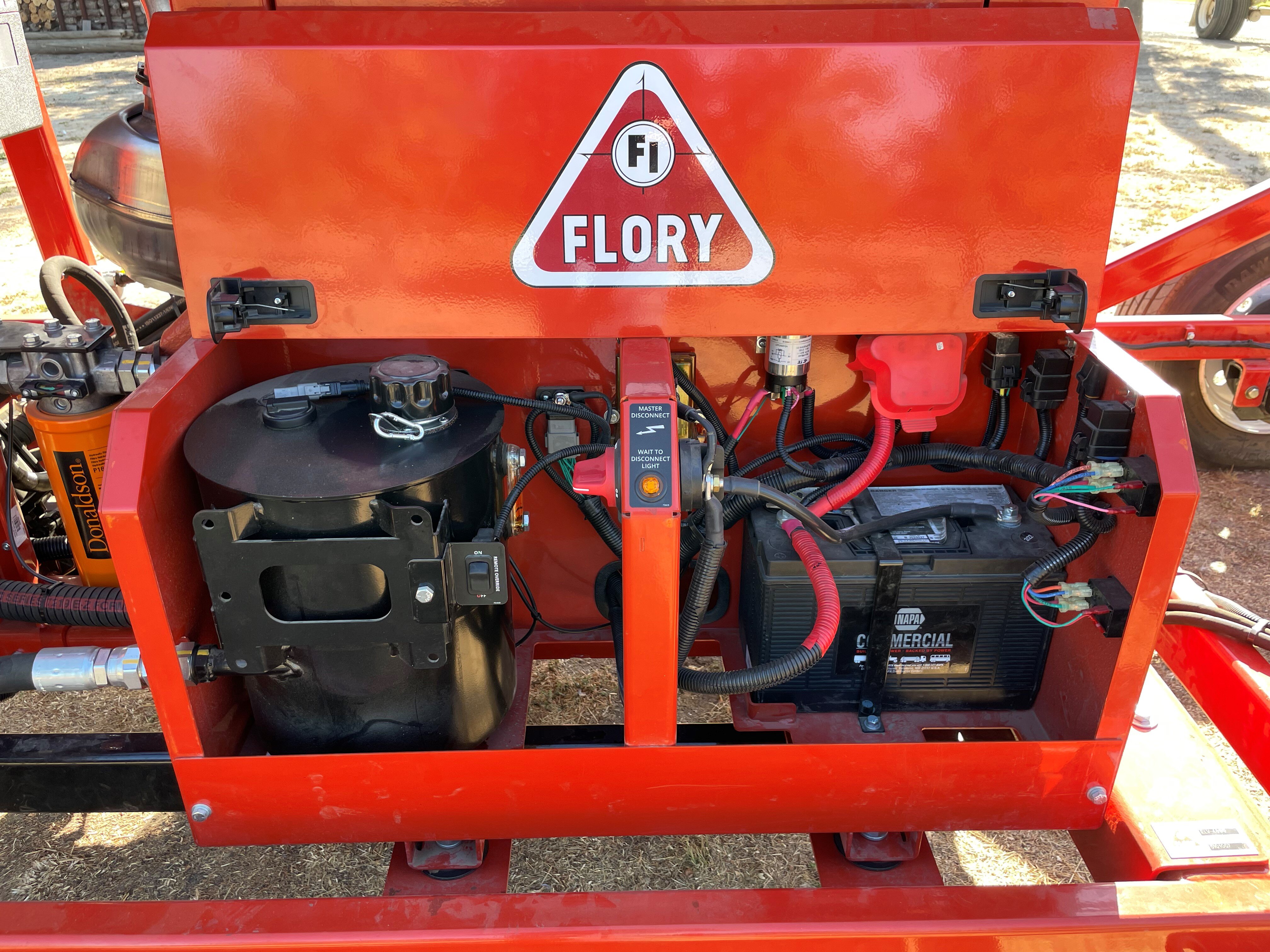

Cyclone hydraulic tank technology, reduces oil requirement by 25 gallons.

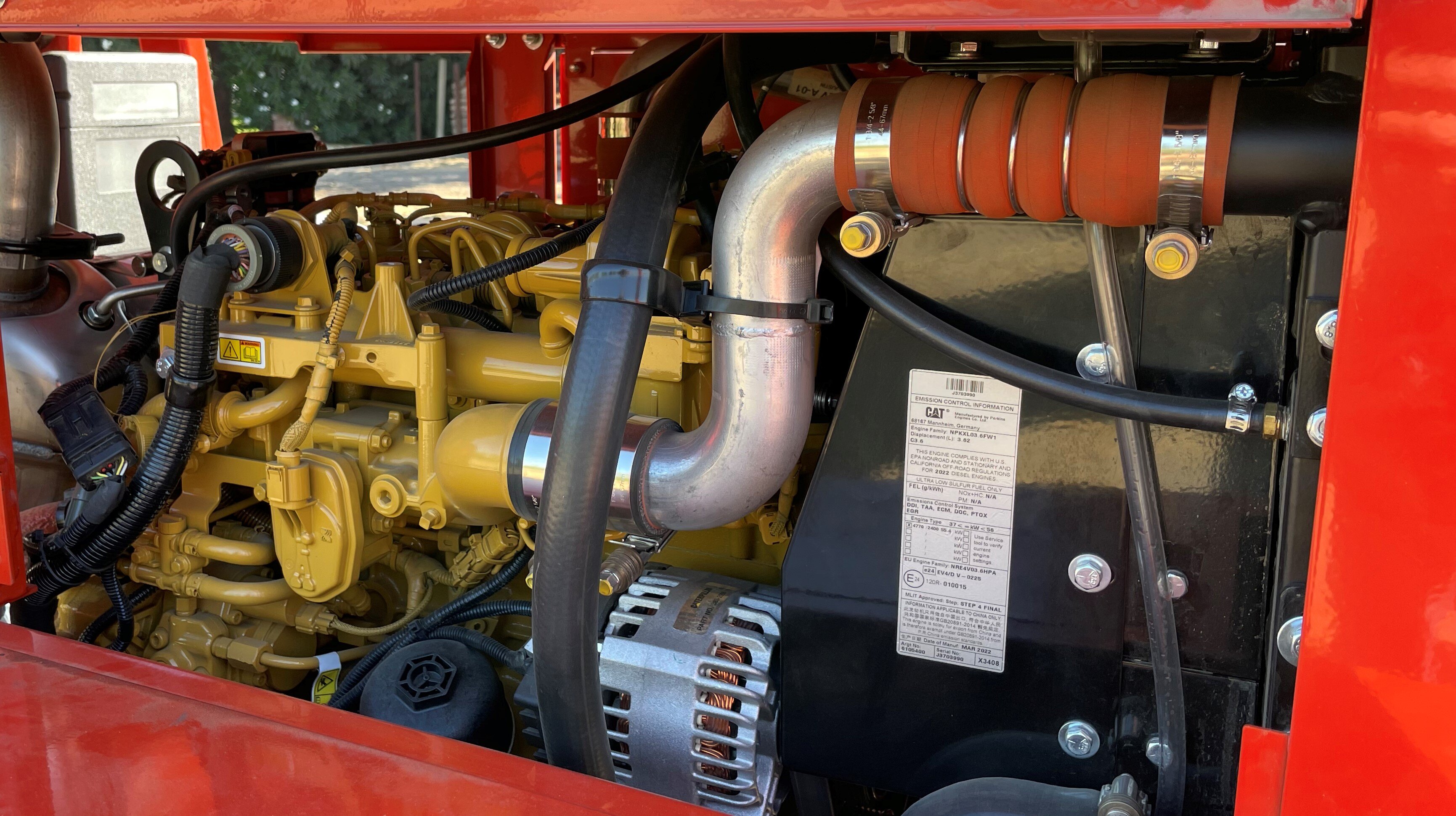

Engine	CAT, 3.6 L, Tier 4 Final
Horsepower	74 HP
Fuel Type	Diesel #2, Ultra Low Sulfur
Fuel Capacity	37 Gal
Hydraulic Oil
Capacity	12 Gal
Length	45 ft 6 in
Height	Working 17 ft 9 in - Transport 13 ft 0 in
Weight	11,620 lbs.
Rear Tires	235-75R-17.5, 18 Ply
Other	Belt Width 48 in Drive Tire: 26x12-12, 10 Ply No DEF Required
