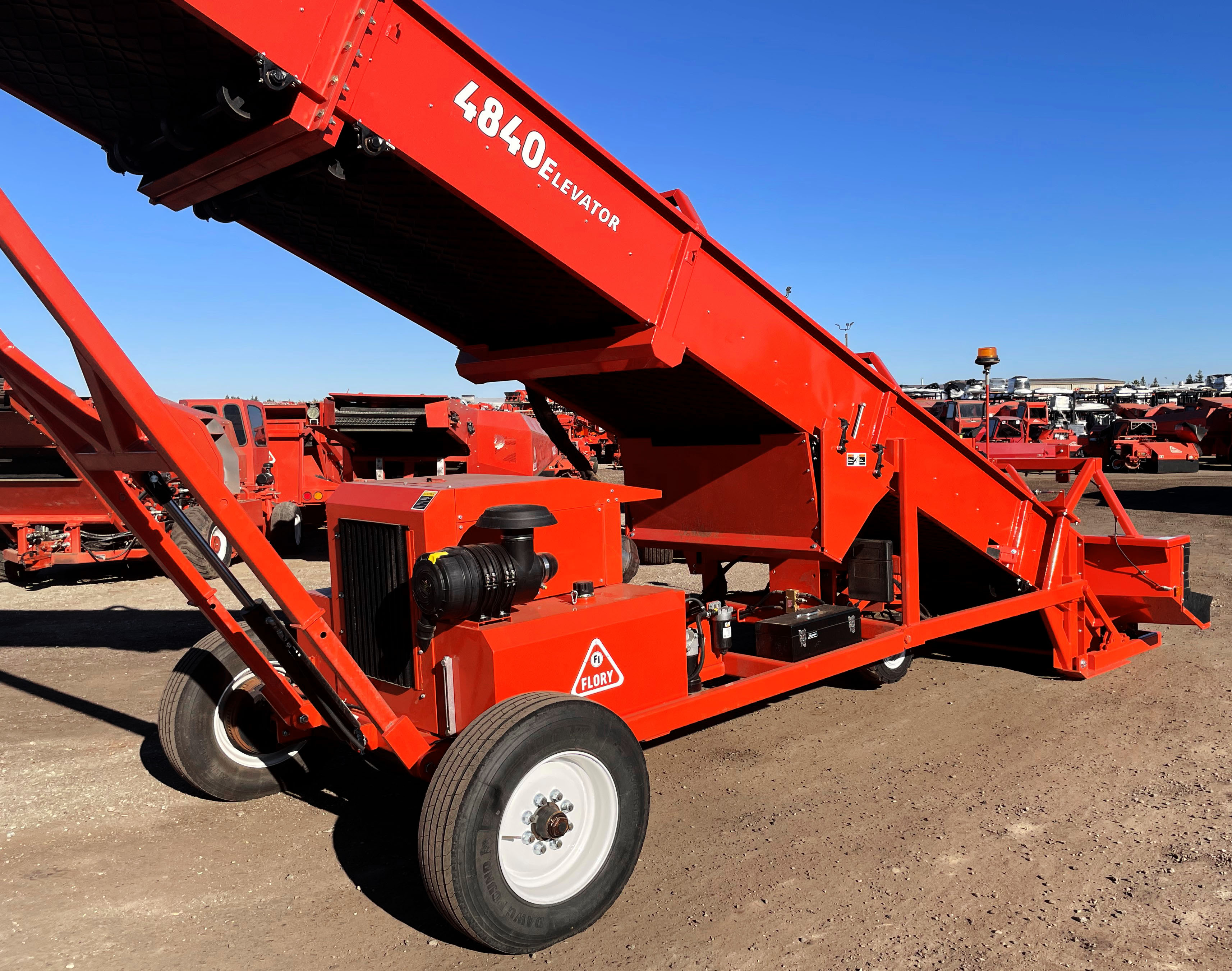

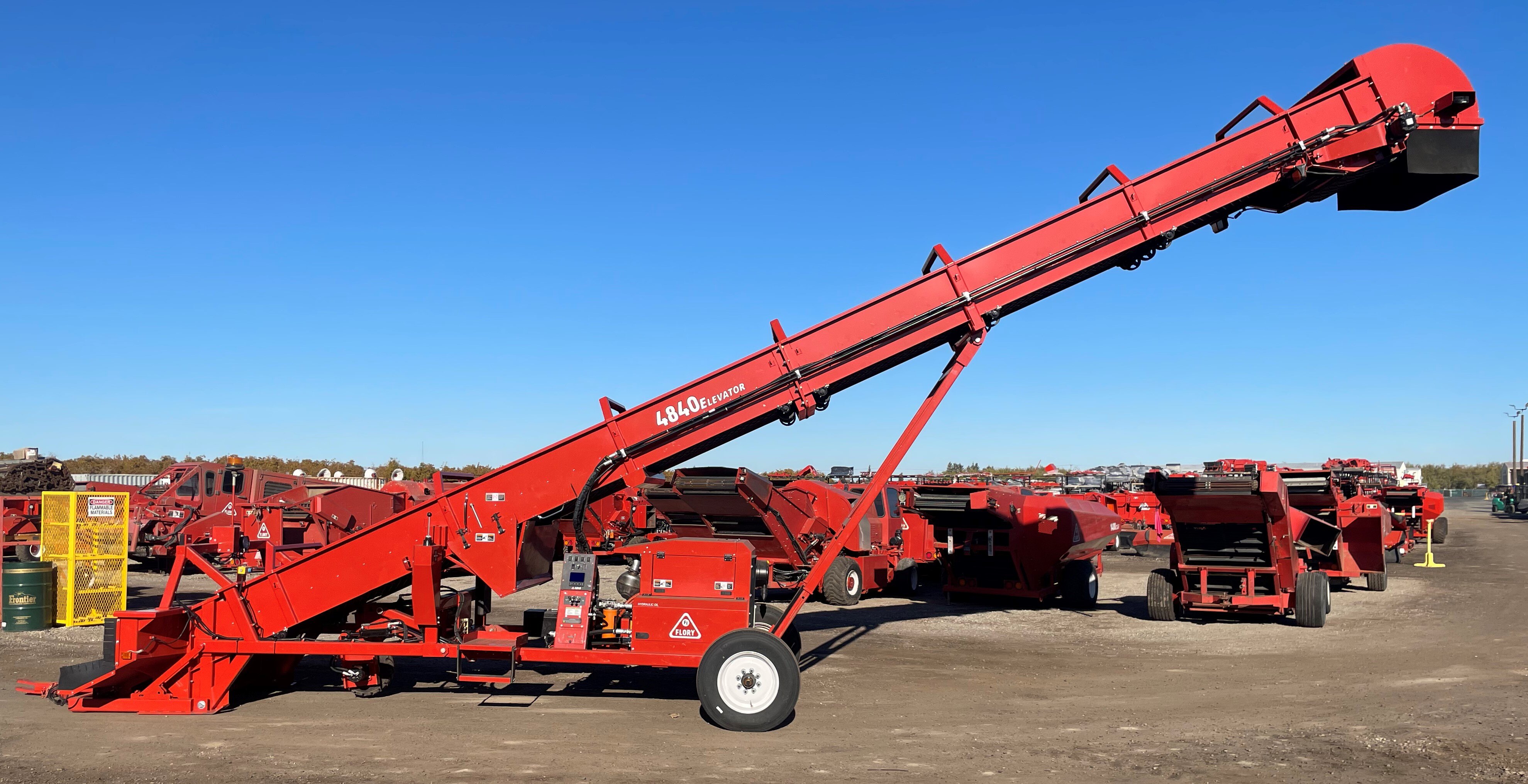

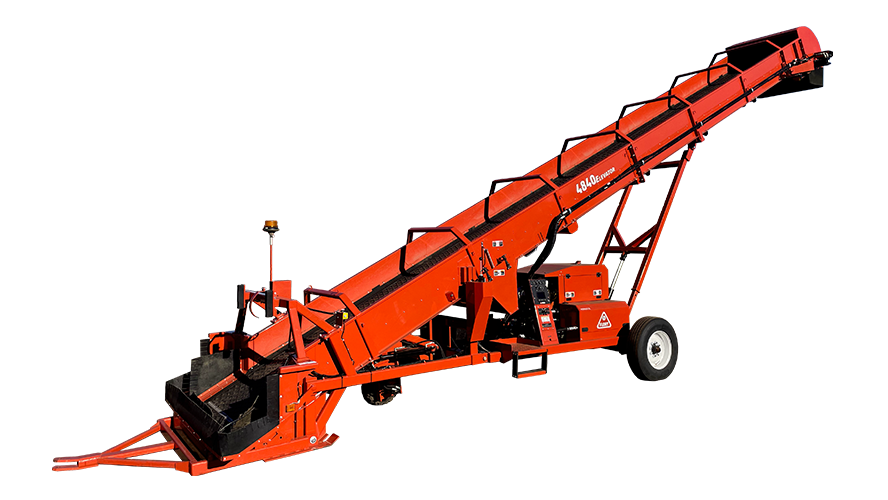

4840 Field Elevator

Engineered for Performance, Speed and Reliability

Featuring a 48-inch wide belt, the 4840 is designed for speed and efficiency to get the shuttle unloaded quickly and back to the field. Each unit comes standard with remote controls, a drive wheel, and a safety stop cord for quick, safe operation. The belt automatically engages and stops with the shuttle gate, enhancing safety and reducing spillage.

4840 Field Elevator

Features

High capacity 48" wide belt with variable speed, minimizes unload time, which maximizes shuttle efficiency
Automatic engine speed and belt start actuated by shuttle trigger

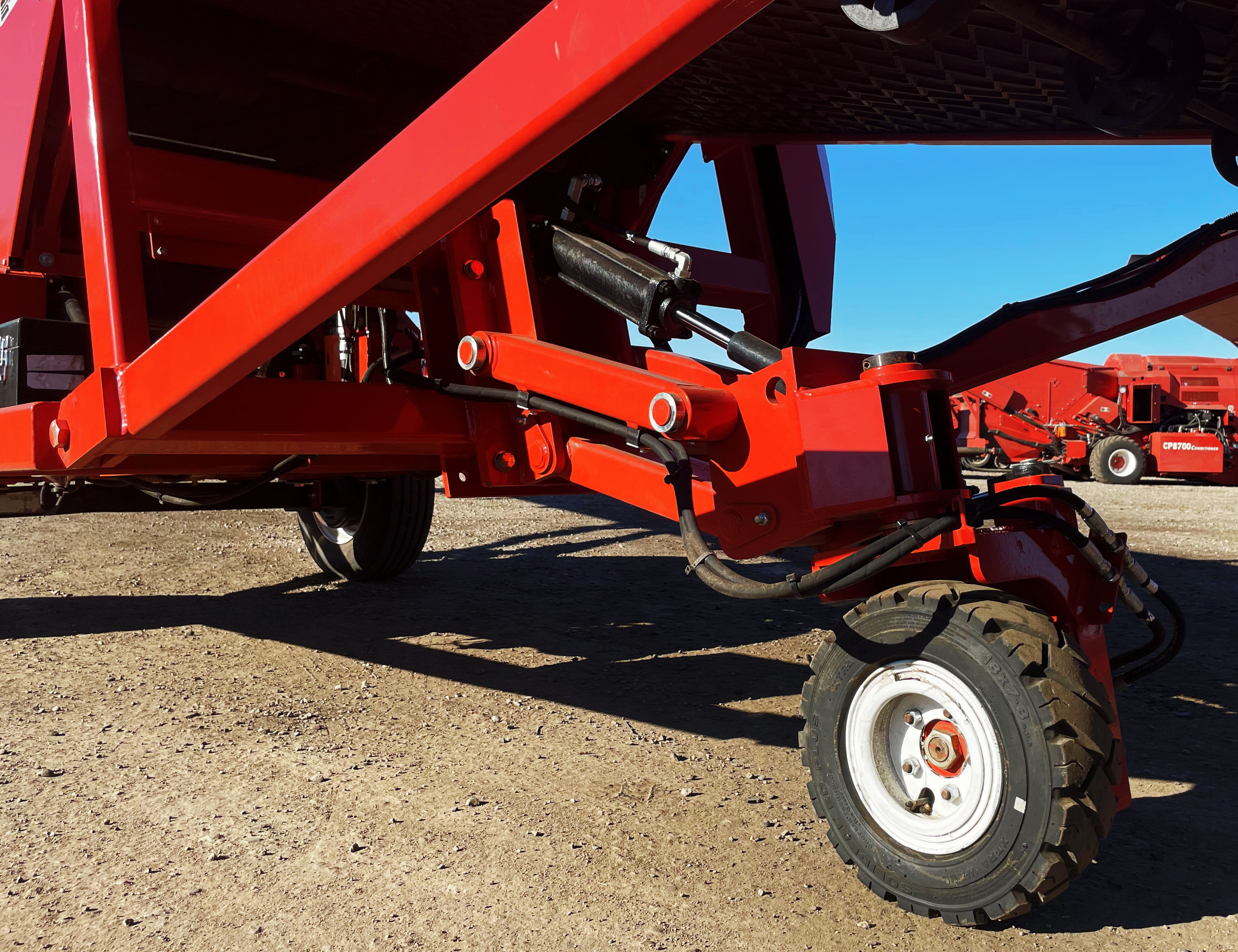

Powered drive wheel allows for easy movement and positioning
Adjustable output hood centers the load in the trailer without repositioning

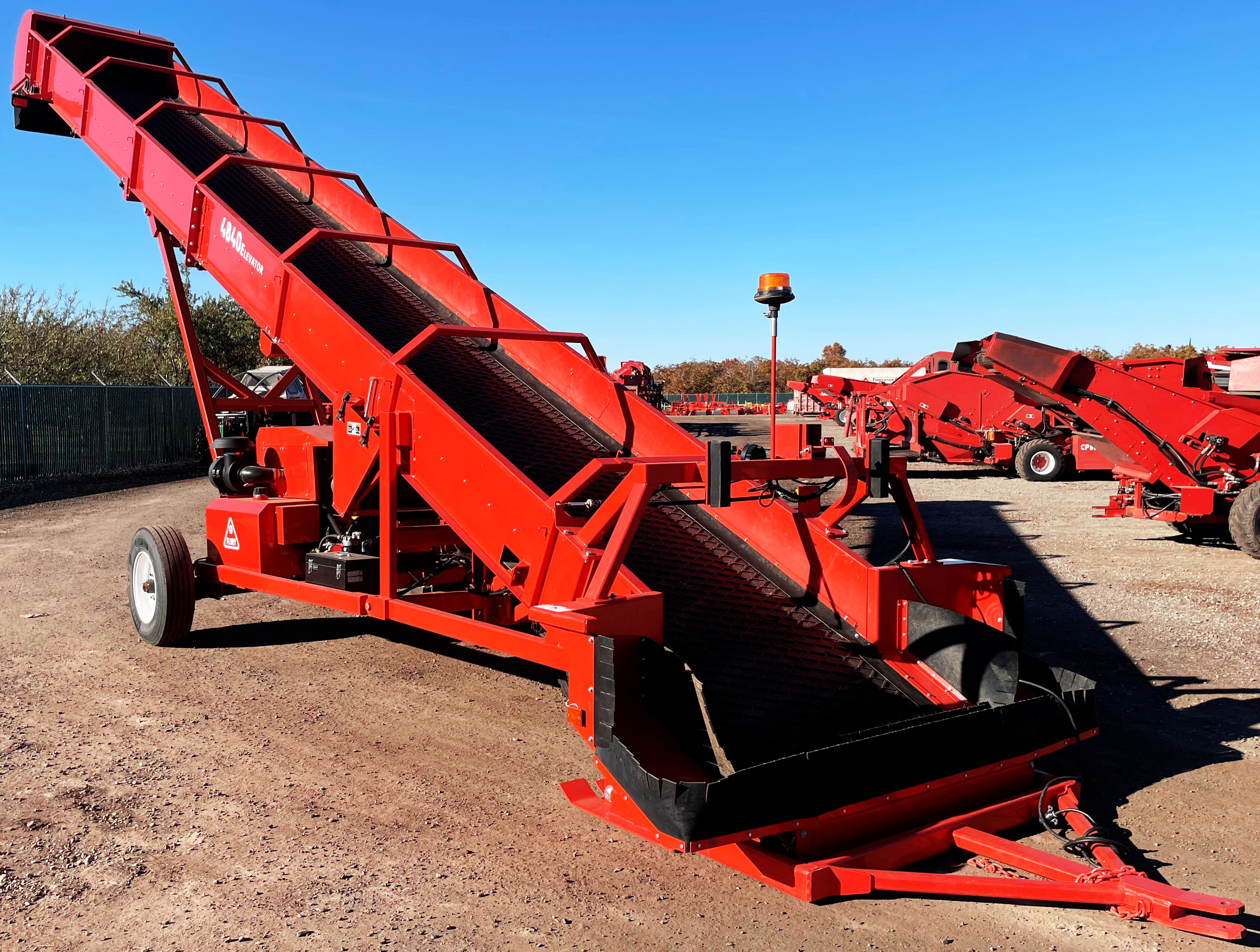

Large unload area and smooth transition from the shuttle prevents loss and damage to the product

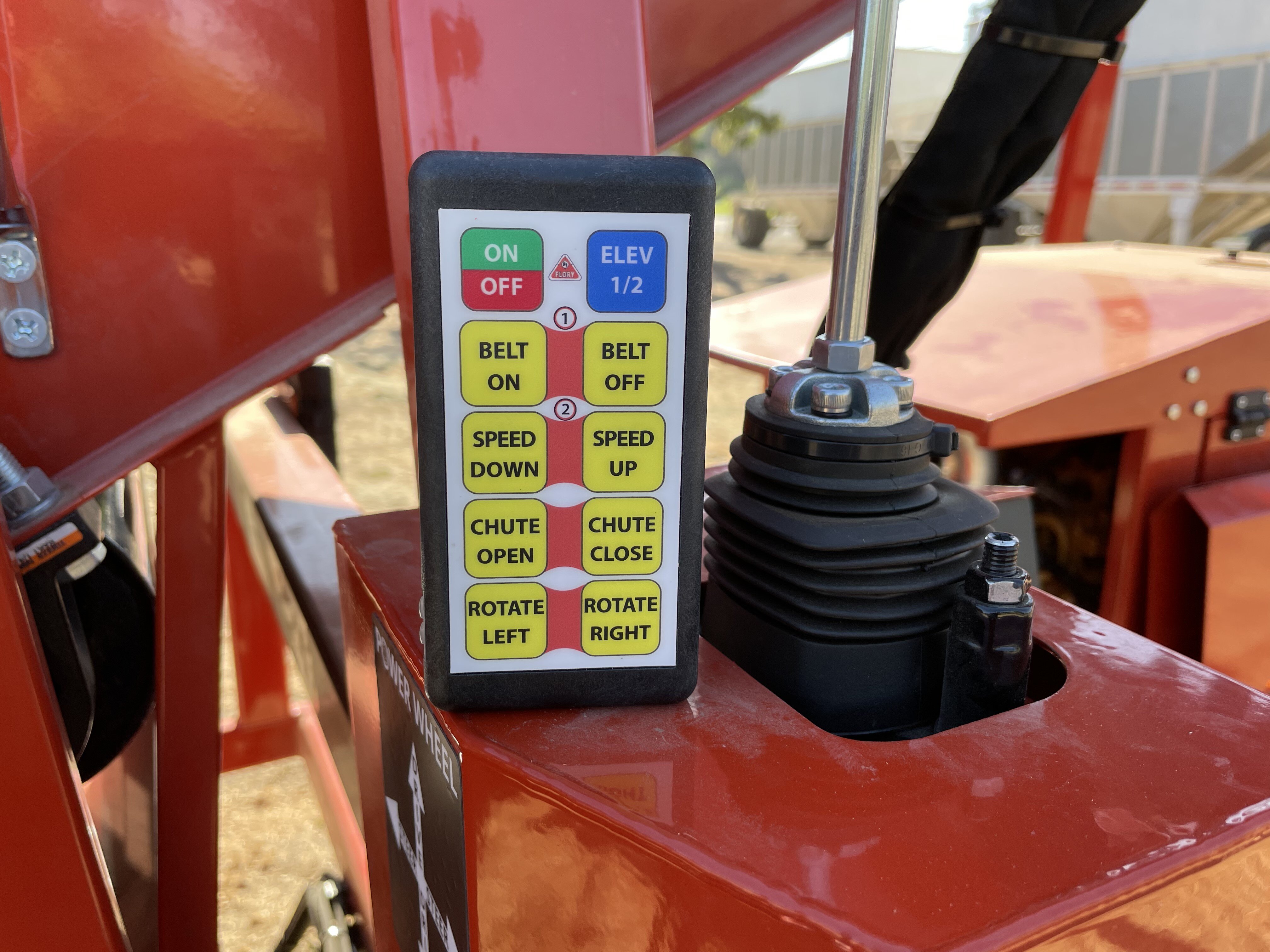

Wireless remotes allow control of elevator functions by the ground crew or directly from the cab of the shuttle

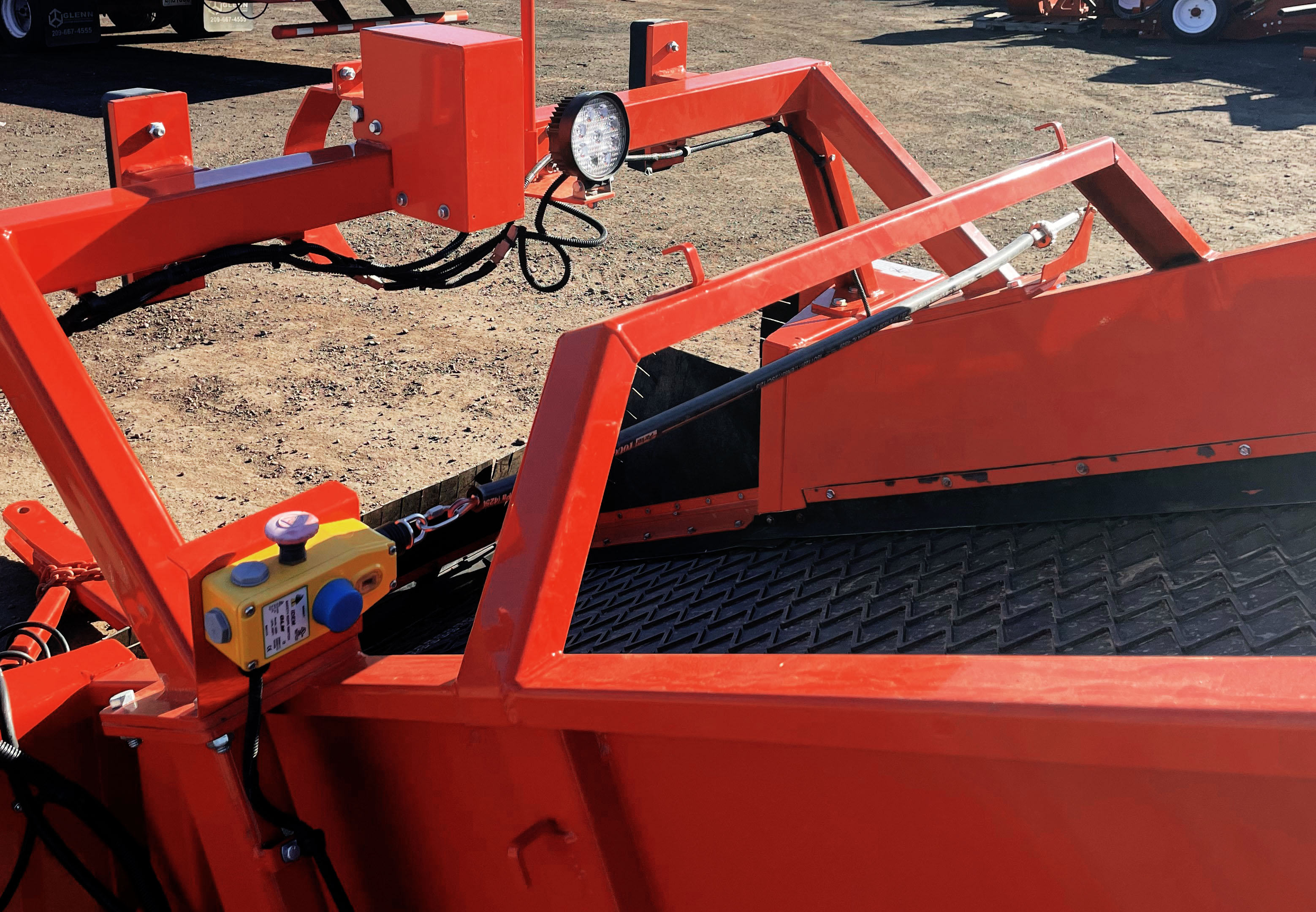

Trough mounted E-stop, work lights and flashing light tower enhances operator safety
Suspension axle, integrated brakes and LED lighting improves towing safety

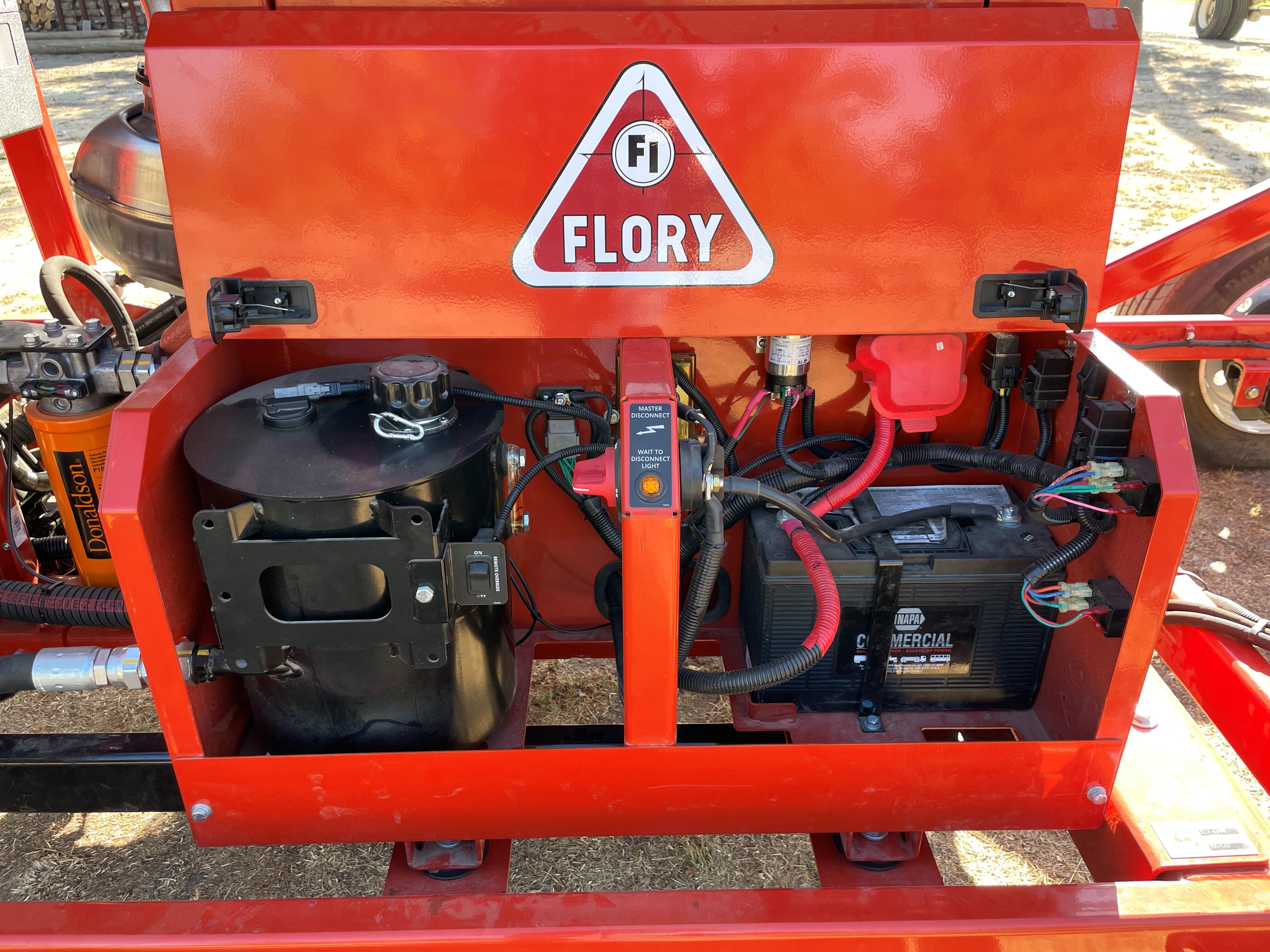

Cyclone hydraulic tank technology, reduces oil requirement by 25 gallons

Options

Adjustable output hood (standard on 4890)

Cleated belt

Cover tarp (to prevent bounce-out)

Specifications

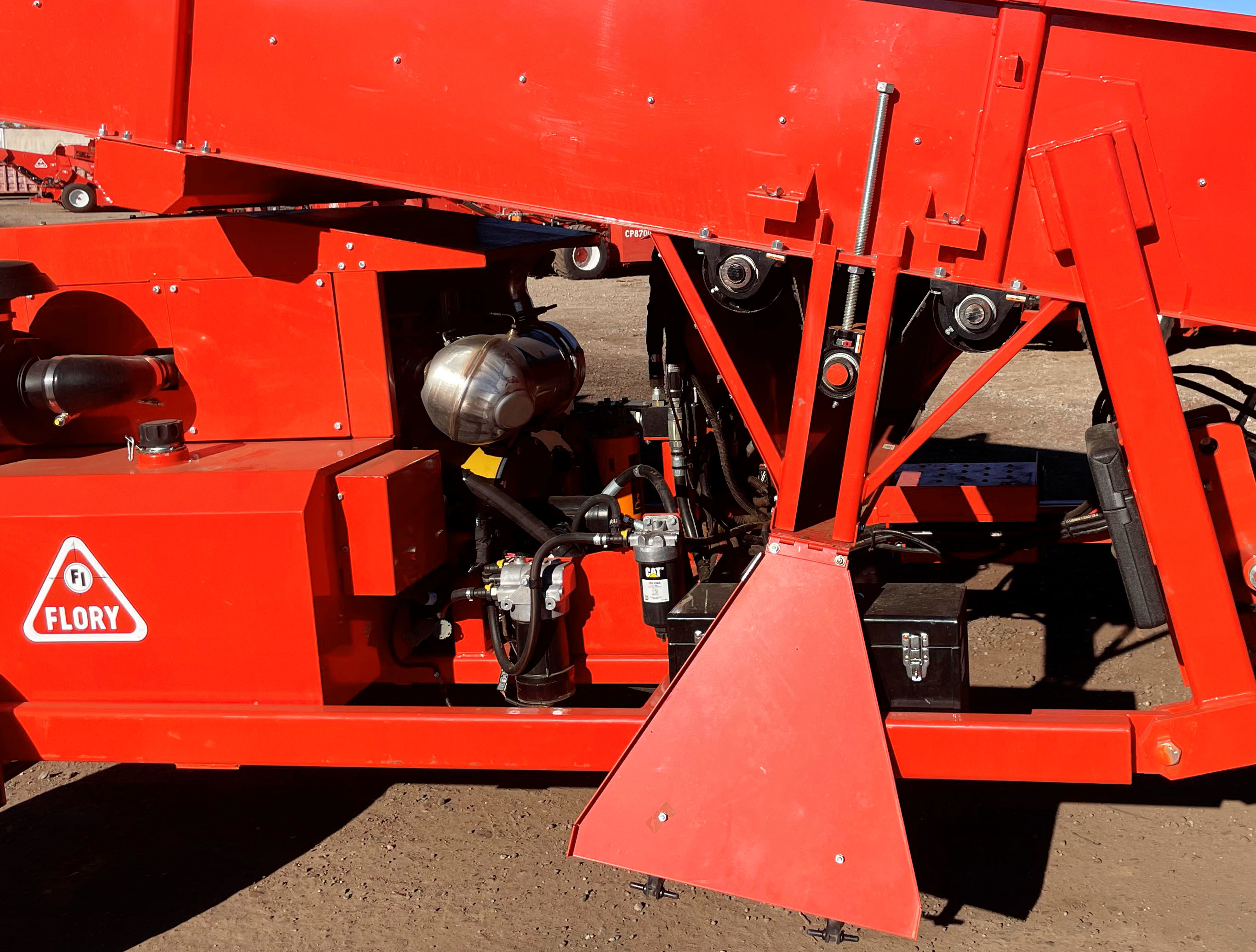

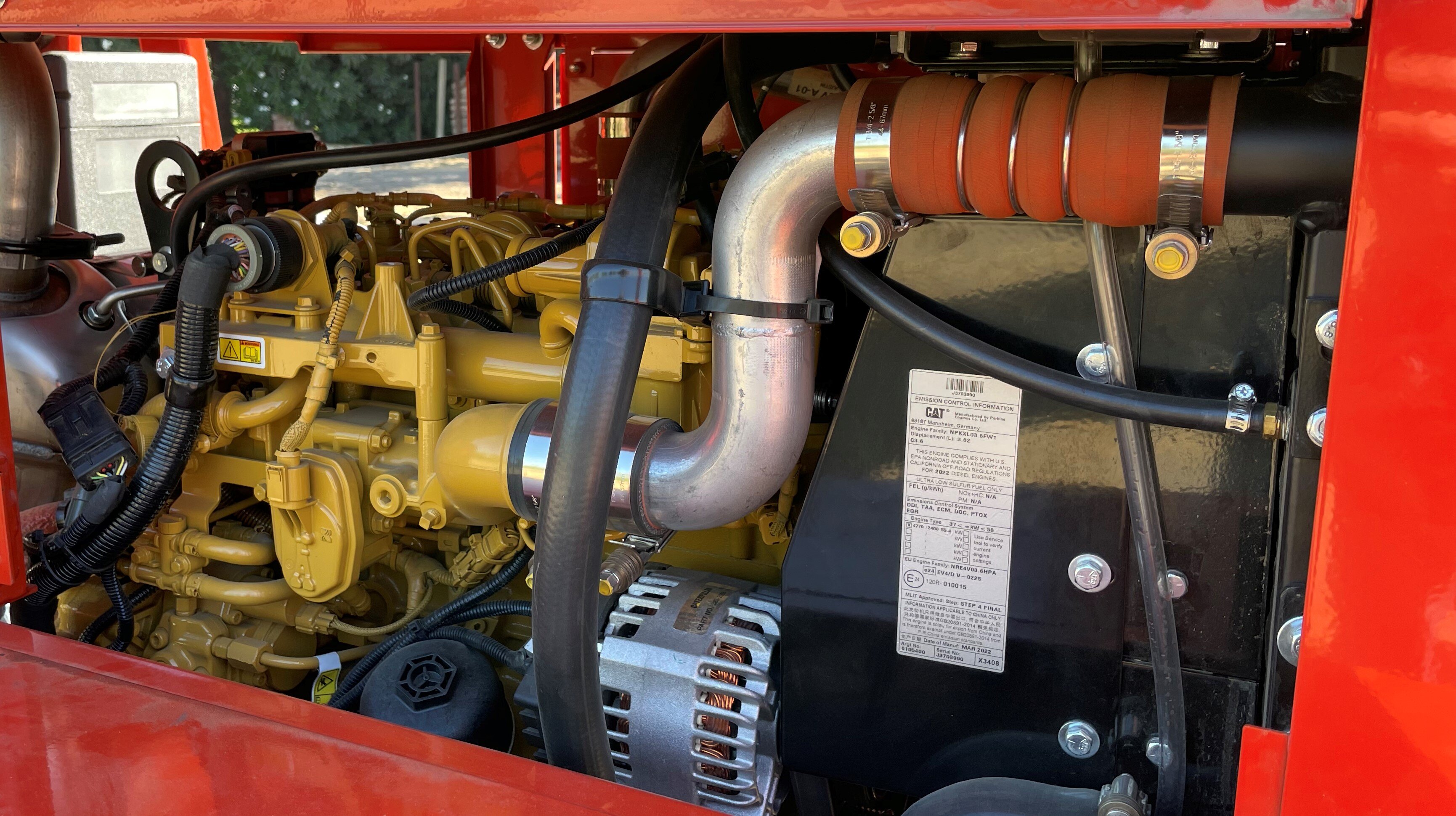

Engine	CAT, 3.6 L, TIER 4F
Horsepower	74 HP
Fuel Type	DIESEL #2, ULTRA LOW SULFUR
Fuel Capacity	37 GAL.
Hydraulic Oil Capacity	12 GAL.
Length	39 FT. 5 IN.
Height	WORKING 18 FT. 1 IN. - TRANSPORT 10 FT. 9 IN.
Belt Width	48 IN.
Weight	8,940 LBS.
Rear Tires	235 - 75R - 17.5, 18 PLY
Drive Tires	18 x 7-8, 16 PLY
DEF Required	NO
