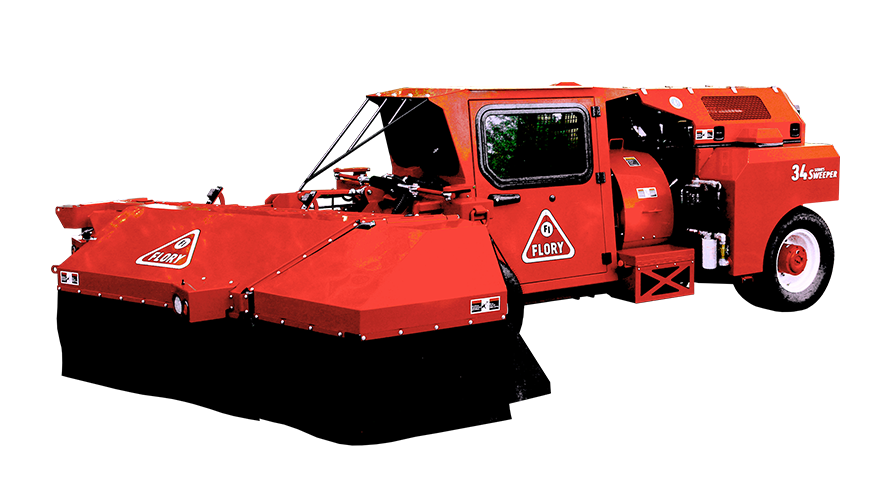

34 Series Air-Cab Nut Sweeper

34 Series Sweeper

The best in operator comfort and visibility

Blower with new 50/50 split and spun inlets provide greater control and 23% more air than previous models

Road speed of up to 14 mph to get to the next job quickly without a trailer

Proven sturdy 5 bar head and “Align-Mount” reel for extended bearing and reel life

Trunnion mount rear axle provides a flexible chassis for traction across rough and uneven terrain

New engine cover design with increased durability to withstand harsh conditions

Optional 4-wheel drive handles any sandy or hilly conditions with ease

Large tires offer the best flotation across loose soils

½ In. thick orchard-proof glass on windows

Video camera system with rear view

Turn signals and flashers for improved road safety

Berm Brush on Head

Side Kick Sweeper Head

Side Kick Berm Brush

Herbicide Spray Kit

Heater

Hitch Kit

Traction Tires

4 Wheel Drive

Blower Spout Type

Engine	JOHN DEERE, 4.5L, TIER 4F
Horsepower	74 HP
Fuel Type	DIESEL #2, ULTRA LOW SULFUR
Fuel Capacity	34 GAL.
NO DEF REQ.
Hydraulic Oil Capacity	30 GAL.
Ground Speed	LOW RANGE: 0-7.5 MPH / HIGH RANGE: 0-14 MPH
Front Tires	26 X 12.00 - 12, 10 PLY
Rear Tires	29 X 14.00 - 15, 6 PLY
Weight (7ft. - 6 in. head)	7,100 LBS.
Sweeping Widths	5 BAR HEADS: 6.5 FT/ 7.5 FT/ 8.5 FT + 6 BAR HEADS: 7 FT / 8 FT
