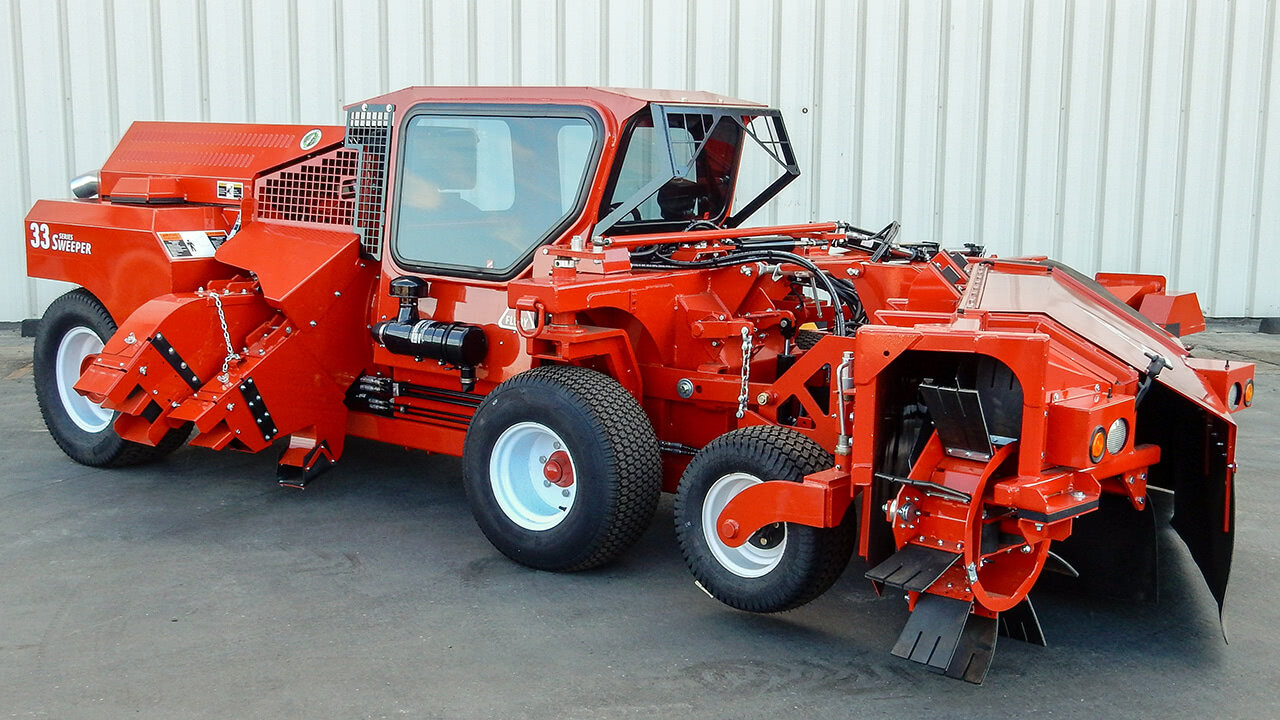

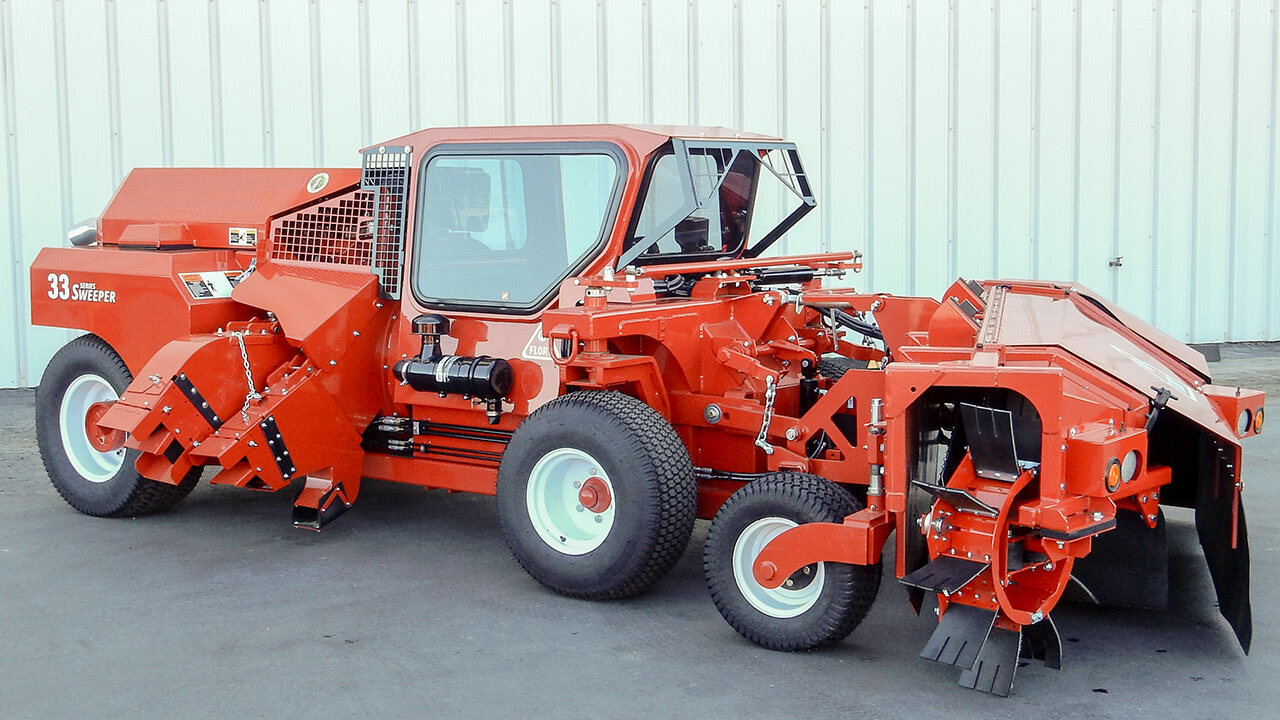

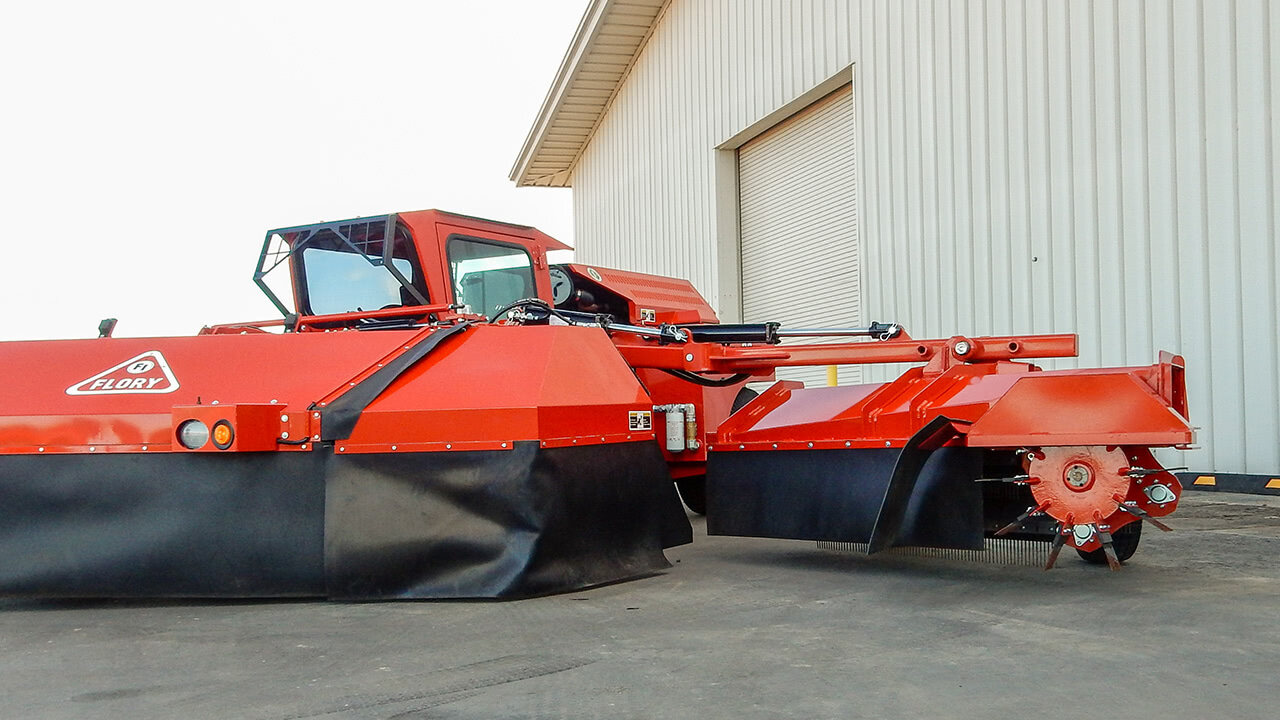

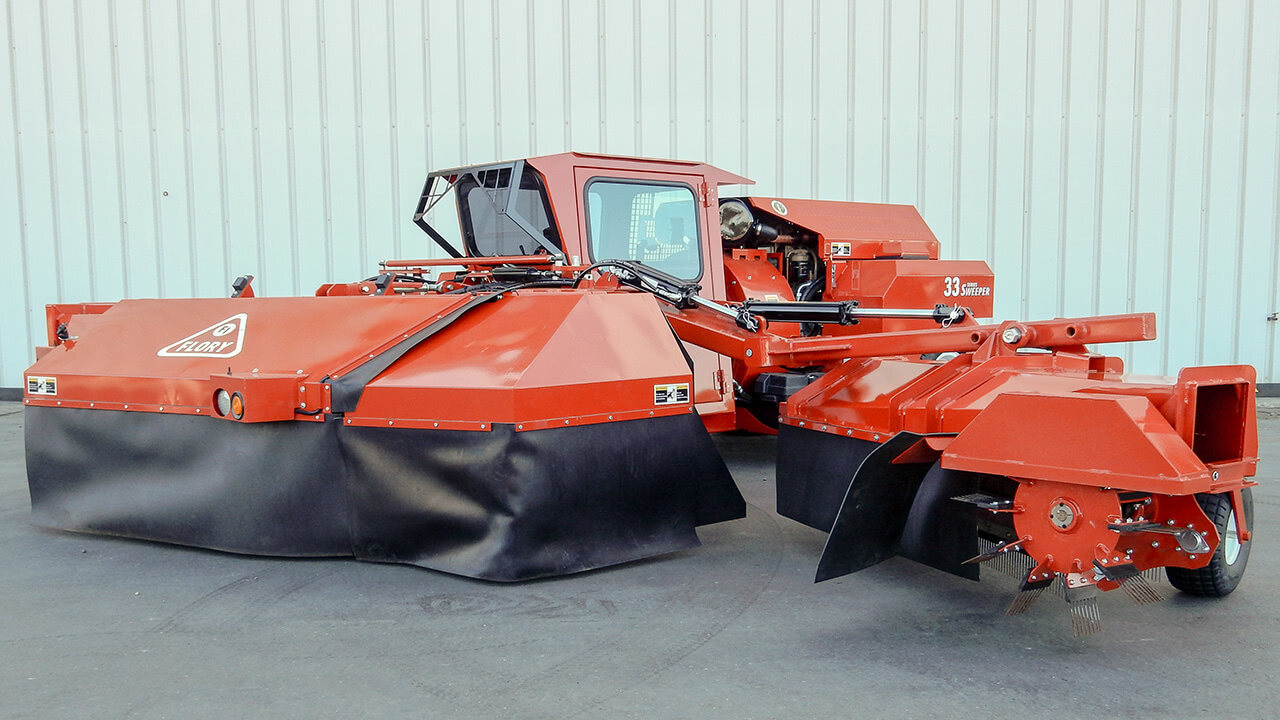

33 Series Air-Cab Nut Sweeper

Flory’s 33 Series Sweeper offers the best in operator comfort and visibility. We have redesigned the proven 30 series head to accommodate today’s larger crops and windrows.

With a steeper attack angle and new tine bars the 33 series has a much better crop flow and faster discharge. We have mounted the paddles out in front to assist in crop flow. All of this while actually improving visibility over the head.

33 Series Sweeper

Standard Features

John Deere Tier 4i engine 4.5L.
New engine mounting system for smoother operation.
Improved air cleaner system that can be serviced.
Completely new reel frame design.
Hi capacity sweeping head.
Steeper attack angle.
Improved internal clearances.
Paddle wheel out in front.
Improved structural tubing design.
New improved tine bar design.
Additional head lift for ease of loading.
Improved visibility over the head.
New and improved Cleanfix fan with additional air flow.
Improved fan control system and new AC system. Air comes up behind operator with heater standard.
New seat with mechanical suspension.
Improved cab door with easier operation Improved cab door with easier operation.

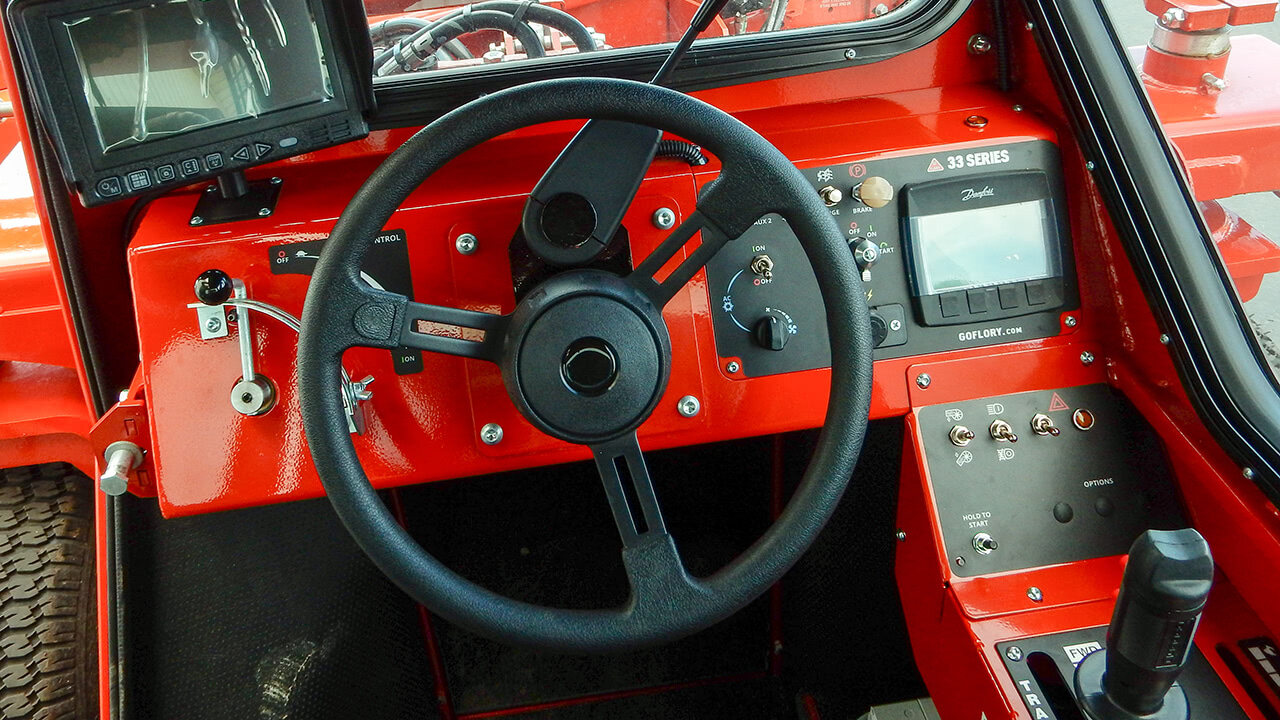

Improved instrumentation.
Fuel gauge on display in cab.
Air filter restriction indicator on display in cab

Specifications

Engine	Tier 4i John Deere 4.5L
Fuel Capacity	34 Gallon
Hydraulic Oil
Capacity	34 Gallon
Height	58”
Weight	6,180 lbs
Sweeping
Widths	5 Bar Head 6’6” \| 5 Bar Head 7’6” \| 5 Bar Head 8’6” \| 6 Bar Head 7’ \| 6 Bar Head 8’

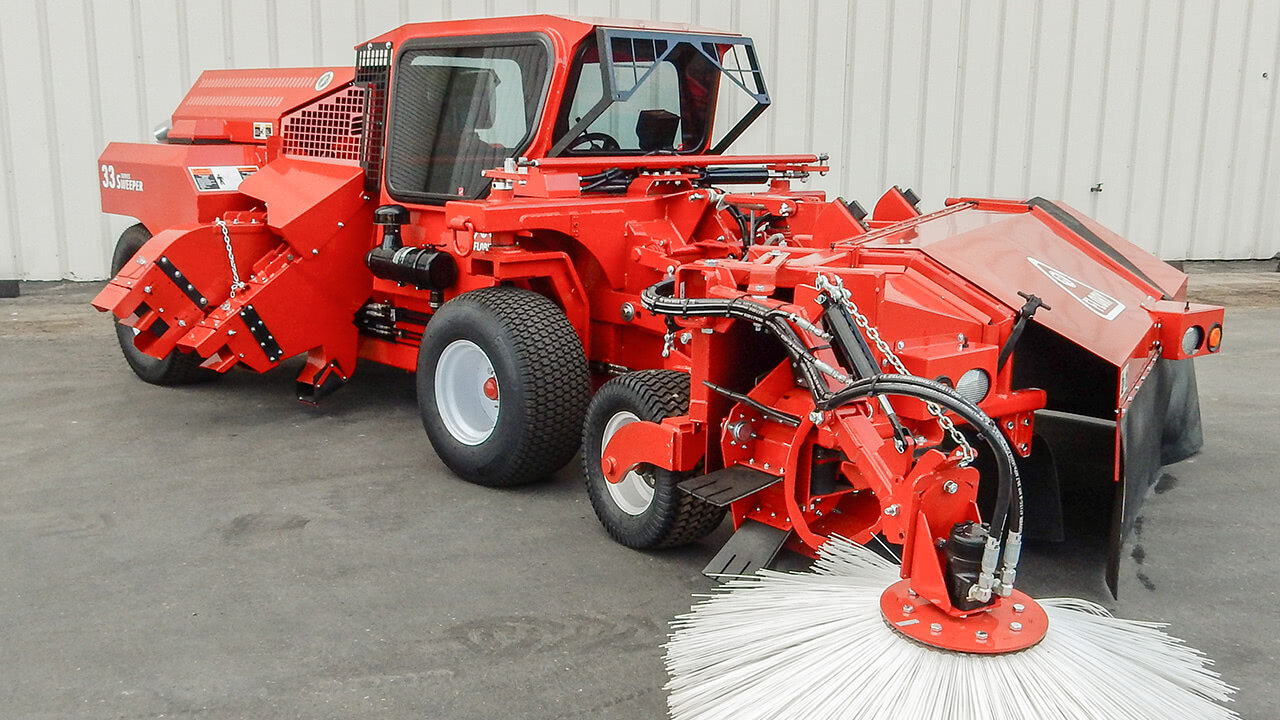

Options	Side - Kick \| Brush Kit \| 4 Wheel Drive Kit \| Herbicide Spray Kit
